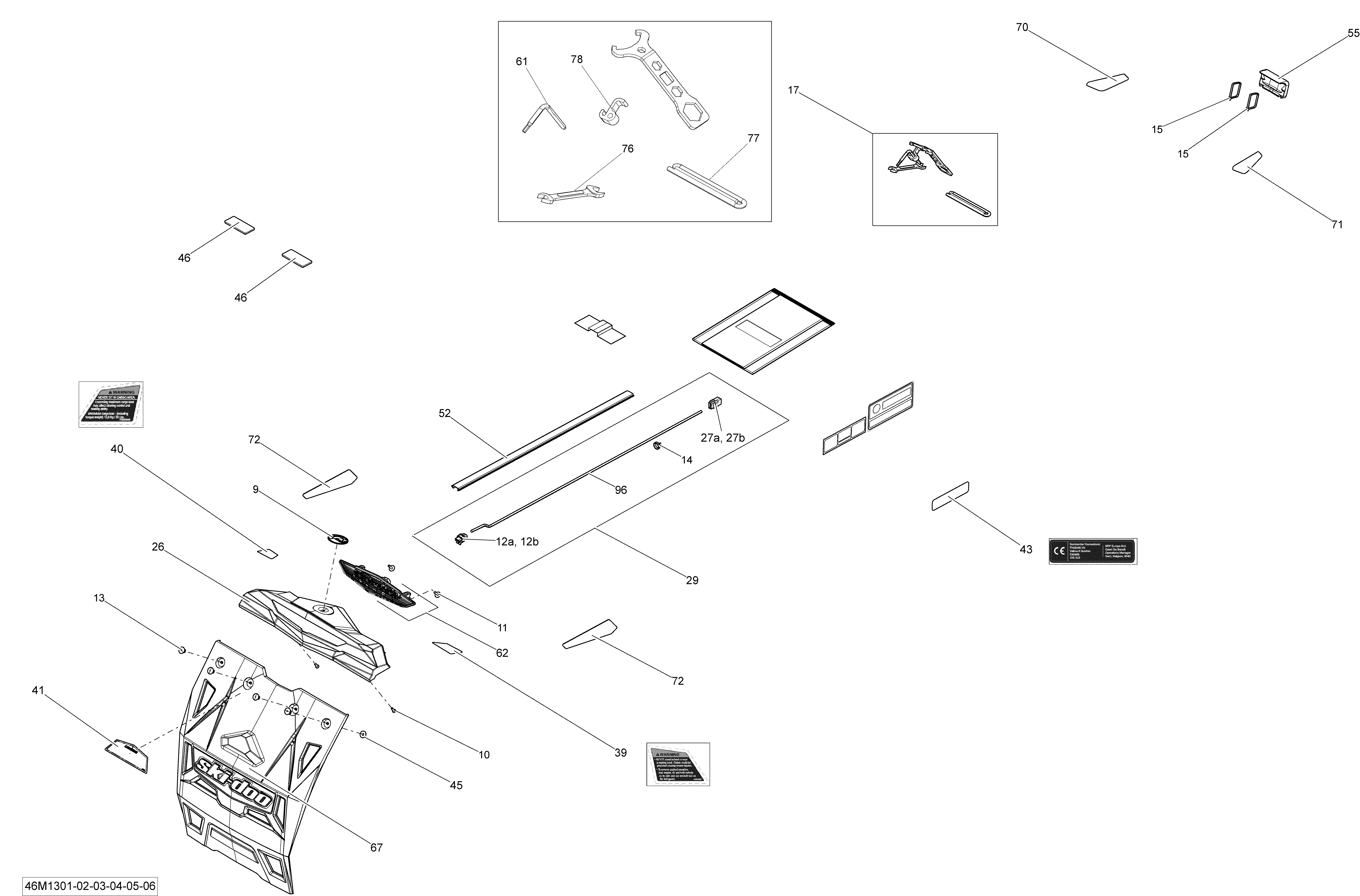

09- Utilities для BRP Ski-Doo MXZ TNT 800RETEC XS - 2013
-
№АртикулНазвание
-
9219903947 BRP Logo 48MMBRP Logo 48MM
-
10241141340 Hex. Screw K40 X 13Hex. Screw K40 X 13
-
11250000113 Screw M4 X 16, Type K-40Screw M4 X 16, Type K-40
-
12a278002387 Female Terminal Housing, 3 CircuitsFemale Terminal Housing, 3 Circuits
-
12b710001153 Seal WireSeal Wire
-
13293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
14293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
15293750018 Tie Rap 371 mm. EUROPETie Rap 371 mm. EUROPE
-
17520001158 Tools KitTools Kit
-
26511000810 Light FairingLight Fairing
-
27a515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
27b515175232 Male TerminalMale Terminal
-
29515177274 Wiring Harness Ass'y. 146'', 163''Wiring Harness Ass'y. 146'', 163''
-
29515177275 Wiring Harness Ass'y. 120'', 137''Wiring Harness Ass'y. 120'', 137''
-
29515177276 Wiring Harness Ass'y. 154''Wiring Harness Ass'y. 154''
-
39516005057 Safety LabelSafety Label
-
40516005058 Safety LabelSafety Label
-
41516005175 Warning Decal. RENEGADE, MX-ZWarning Decal. RENEGADE, MX-Z
-
43516005873 ''CE'' Decal. EUROPE''CE'' Decal. EUROPE
-
45517124300 WasherWasher
-
46520000271 Reflector, Amber. EUROPEReflector, Amber. EUROPE
-
46415037900 Reflector, White. EUROPEReflector, White. EUROPE
-
52520000829 Radiator TrimRadiator Trim
-
55520000871 Reflector Support. EUROPEReflector Support. EUROPE
-
67520001297 Snow Guard Ass'y. MX-Z ,YellowSnow Guard Ass'y. MX-Z ,Yellow
-
61520001142 Spacing ToolSpacing Tool
-
62520001143 Rear LightRear Light
-
70520001236 Front Reflector LHFront Reflector LH
-
71520001237 Front Reflector RHFront Reflector RH
-
72520001239 Rear Reflector RH. InternationalRear Reflector RH. International
-
72520001241 Rear Reflector RH. EUROPERear Reflector RH. EUROPE
-
72520001238 Rear Reflector LH. InternationalRear Reflector LH. International
-
72520001240 Rear Reflector LH. EUROPERear Reflector LH. EUROPE
-
76529000002 Fork Wrench, 10/13 mmFork Wrench, 10/13 mm
-
77412500200 Starter Rope, MeterStarter Rope, Meter
-
78529000060 Starter GripStarter Grip
-
96515175332 Vinyl Tubing, Low TemperatureVinyl Tubing, Low Temperature
