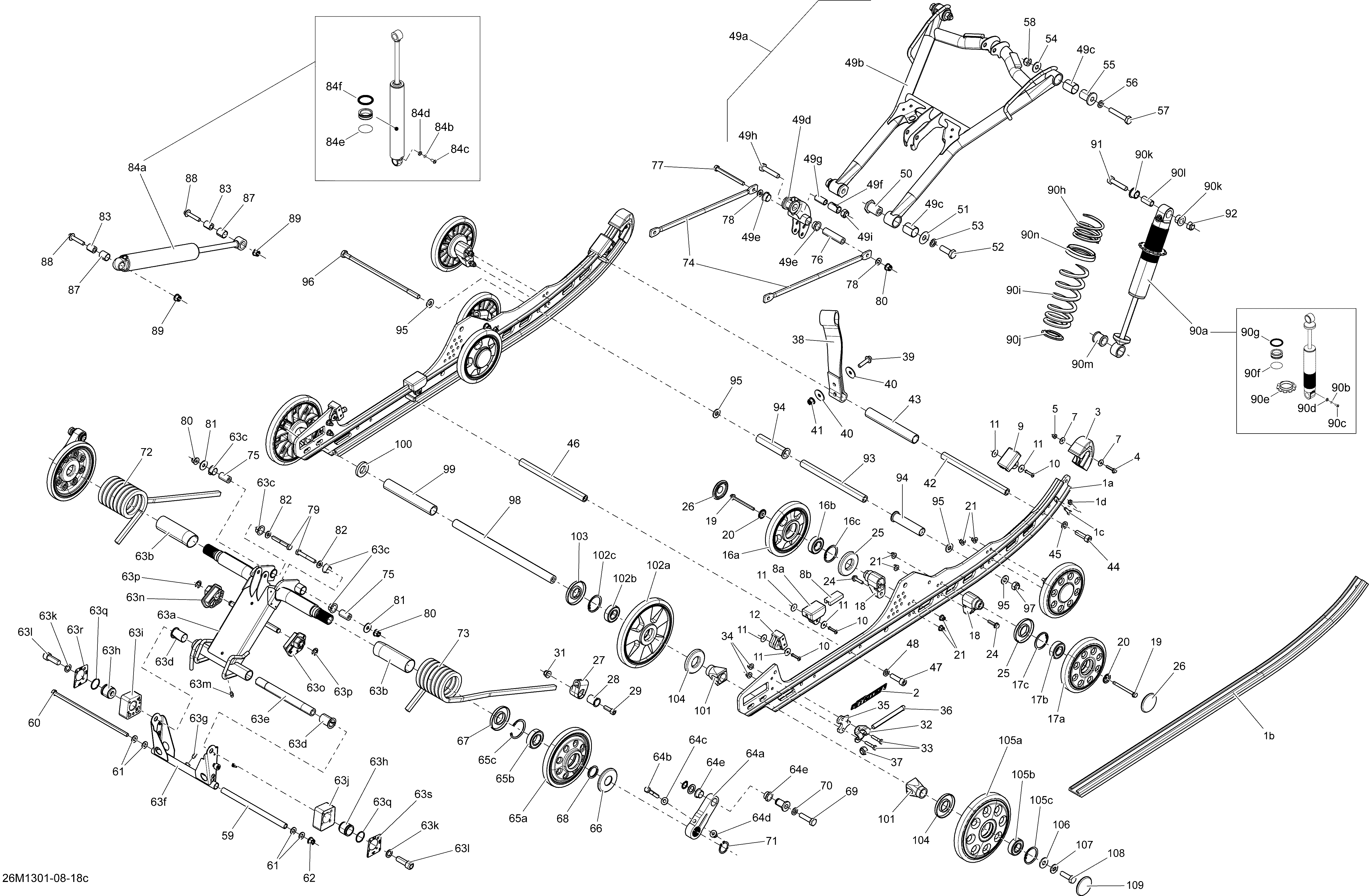

08- Rear Suspension для BRP Ski-Doo MXZ TNT 800RETEC XS - 2013
-
№АртикулНазвание
-
1a503193289 Runner 120'', YellowRunner 120'', Yellow
-
1b503191301 Slider Shoe 120'', BlackSlider Shoe 120'', Black
-
1c208562531 Phillips Screw M6 X 25Phillips Screw M6 X 25
-
1d232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
2516004755 Runner DecalRunner Decal
-
3503192530 Slide ProtectorSlide Protector
-
4207652544 Hex. Flanged Screw M5 X 25Hex. Flanged Screw M5 X 25
-
5233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
7250200140 WasherWasher
-
8a503193101 Rubber StopperRubber Stopper
-
8b572084800 Reinforcement StopperReinforcement Stopper
-
9503190576 Rubber StopperRubber Stopper
-
10293150142 Pop Rivet 3/16''Pop Rivet 3/16''
-
11503191273 WasherWasher
-
12503192750 Rubber StopperRubber Stopper
-
16a503192794 Wheel 141 Ass'y. Includes 16a to 16cWheel 141 Ass'y. Includes 16a to 16c
-
16b503190396 Ball BearingBall Bearing
-
16c415129371 Retaining RingRetaining Ring
-
17a503193477 Wheel 141 mm Ass'y. Includes 17a to 17cWheel 141 mm Ass'y. Includes 17a to 17c
-
17b503190396 Ball BearingBall Bearing
-
17c415129371 Retaining RingRetaining Ring
-
18503193082 Casted SupportCasted Support
-
19207667056 Hex. Flange Screw M6 X 70Hex. Flange Screw M6 X 70
-
20503191820 Wheel Cup M6Wheel Cup M6
-
21233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
24207662556 Hex. Flange Screw M6 X 25Hex. Flange Screw M6 X 25
-
25503190434 Labyrinth SealLabyrinth Seal
-
26503192771 Wheel CapWheel Cap
-
27503191183 Spring SupportSpring Support
-
28503190754 Retainer CushionRetainer Cushion
-
29205082554 Socket Screw M8 X 25Socket Screw M8 X 25
-
31233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
32503192814 TensionerTensioner
-
33207063054 Hex. Cap Screw M6 X 30Hex. Cap Screw M6 X 30
-
34233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
35503193250 SpacerSpacer
-
36230100054 Hex Screw M10 x 100Hex Screw M10 x 100
-
37233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
38503192759 Stopper StrapStopper Strap
-
39207683044 Hex. Flanged Screw M8 X 30Hex. Flanged Screw M8 X 30
-
40250200128 Flat Washer 8 mmFlat Washer 8 mm
-
41233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
42503191260 Axle StrapAxle Strap
-
43503192678 SpacerSpacer
-
44205503554 Socket Head Screw M10 X 35Socket Head Screw M10 X 35
-
45503192496 WasherWasher
-
46503191260 Axle StrapAxle Strap
-
47205503554 Socket Head Screw M10 X 35Socket Head Screw M10 X 35
-
48503192496 WasherWasher
-
49a503193264 Front Arm Ass'y. Includes 49a to 49iFront Arm Ass'y. Includes 49a to 49i
-
49b503193265 Front ArmFront Arm
-
49c503191554 BushingBushing
-
49d503192531 RockerRocker
-
49e503191555 Swivel BushingSwivel Bushing
-
49f503193037 BushingBushing
-
49g503189282 BushingBushing
-
49h207005044 Hex. Screw M10 X 50Hex. Screw M10 X 50
-
49i233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
50503191966 Lower AxleLower Axle
-
51503190656 WasherWasher
-
52250000537 Hex. Cap Screw M12 X 35Hex. Cap Screw M12 X 35
-
53503192491 WasherWasher
-
54503191926 WasherWasher
-
55503190698 AxleAxle
-
56503192496 WasherWasher
-
57207006056 Hex. Cap Screw M10 X 60Hex. Cap Screw M10 X 60
-
58233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
59503189156 Pivot Arm AxlePivot Arm Axle
-
60503192440 Bolt M8 X 248mmBolt M8 X 248mm
-
61503192494 WasherWasher
-
62233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
63a503193365 Rear Arm Ass'y. Includes 63a to 63sRear Arm Ass'y. Includes 63a to 63s
-
63b503192767 BushingBushing
-
63c503191555 Swivel BushingSwivel Bushing
-
63d503191640 CushionCushion
-
63e503192981 Lower ShaftLower Shaft
-
63f503192823 Pivot Arm Ass'y. Includes 63f to 63gPivot Arm Ass'y. Includes 63f to 63g
-
63g408200700 Grease FittingGrease Fitting
-
63h503192749 Guide BlockGuide Block
-
63i503192918 LH Cam BlockLH Cam Block
-
63j503192919 RH Cam BlockRH Cam Block
-
63k503189276 WasherWasher
-
63l205523544 Socket Head Screw M12 X 35, Scotch GripSocket Head Screw M12 X 35, Scotch Grip
-
63m408200700 Grease FittingGrease Fitting
-
63n503191565 LH Cam AdjusterLH Cam Adjuster
-
63o503191566 RH Cam AdjusterRH Cam Adjuster
-
63p293370013 E-CirclipE-Circlip
-
63q503192921 O-RingO-Ring
-
63r516004900 LH Block Sticker DecalLH Block Sticker Decal
-
63s516004901 RH Block Sticker DecalRH Block Sticker Decal
-
64a503193072 Extension Arm Ass'y. Includes 64a to 64eExtension Arm Ass'y. Includes 64a to 64e
-
64b207085044 Hex. Screw M8 X 50Hex. Screw M8 X 50
-
64c503189157 WasherWasher
-
64d233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
64e503191555 Swivel BushingSwivel Bushing
-
65a503192808 Wheel 155 Ass'y. Includes 65a to 65cWheel 155 Ass'y. Includes 65a to 65c
-
65b503191982 Ball BearingBall Bearing
-
65c415129780 Retaining RingRetaining Ring
-
66503192592 Labyrinth RingLabyrinth Ring
-
67503190434 Labyrinth SealLabyrinth Seal
-
68503189146 Axle SpringAxle Spring
-
69207204056 Cap Screw Hex. M10 X 40Cap Screw Hex. M10 X 40
-
70503192496 WasherWasher
-
71293370080 Retaining RingRetaining Ring
-
72503193158 LH Square SpringLH Square Spring
-
73503193159 RH Square SpringRH Square Spring
-
74503193010 Link RodLink Rod
-
75503192555 Axle BarAxle Bar
-
76503190643 Axle BarAxle Bar
-
77503193372 Screw M8 X 90Screw M8 X 90
-
78503192494 WasherWasher
-
79207085544 Hex. Screw M8 X 55Hex. Screw M8 X 55
-
80233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
81234082410 Flat Washer 8 mmFlat Washer 8 mm
-
82503192494 WasherWasher
-
83503192606 Rear Shock AxleRear Shock Axle
-
84a503193176 Rear Shock. Includes 84a to 84fRear Shock. Includes 84a to 84f
-
84b505070400 O-RingO-Ring
-
84c505070399 ScrewScrew
-
84d505070398 Air ValveAir Valve
-
84e503189308 Piston RingPiston Ring
-
84f414888312 O-RingO-Ring
-
87505072663 BushingBushing
-
88207684044 Hex. Flanged Screw M8 X 40Hex. Flanged Screw M8 X 40
-
89233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
90A503192769 Center Shock. Includes 90a to 49gCenter Shock. Includes 90a to 49g
-
90b505070400 O-RingO-Ring
-
90c505070399 ScrewScrew
-
90d505070398 Air ValveAir Valve
-
90e414888316 Spring CollarSpring Collar
-
90f503189308 Piston RingPiston Ring
-
90g414888312 O-RingO-Ring
-
90h503193480 Deep Black Spring (51mm Long)Deep Black Spring (51mm Long)
-
90i503193067 Black Spring (189mm Long)Black Spring (189mm Long)
-
90j503192608 Spring StopperSpring Stopper
-
90k503189117 CushionCushion
-
90l503189282 BushingBushing
-
90m503189271 CushionCushion
-
90n503191281 Spring SpacerSpring Spacer
-
91207005044 Hex. Screw M10 X 50Hex. Screw M10 X 50
-
92233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
93503193142 Pivot AxlePivot Axle
-
94503191259 Center BushingCenter Bushing
-
95250200138 WasherWasher
-
96503191896 Bolt M10 X 251MMBolt M10 X 251MM
-
97233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
98503190429 Rear AxleRear Axle
-
99503190430 SpacerSpacer
-
100503190432 WasherWasher
-
101503190428 Rear Wheel SpacerRear Wheel Spacer
-
102a503192778 Wheel 180, Black. Includes 102a to 102cWheel 180, Black. Includes 102a to 102c
-
102b503190396 Ball BearingBall Bearing
-
102c415129371 Retaining RingRetaining Ring
-
103503190682 Labyrinth SealLabyrinth Seal
-
104503190434 Labyrinth SealLabyrinth Seal
-
105a503192766 Wheel, 180 mm. Includes 105a to 105cWheel, 180 mm. Includes 105a to 105c
-
105b503190396 Ball BearingBall Bearing
-
105c415129371 Retaining RingRetaining Ring
-
106503191910 WasherWasher
-
107234201474 Conical Spring Washer 10 mmConical Spring Washer 10 mm
-
108250000019 Hex. Screw With NylonHex. Screw With Nylon
-
109503192771 Wheel CapWheel Cap
