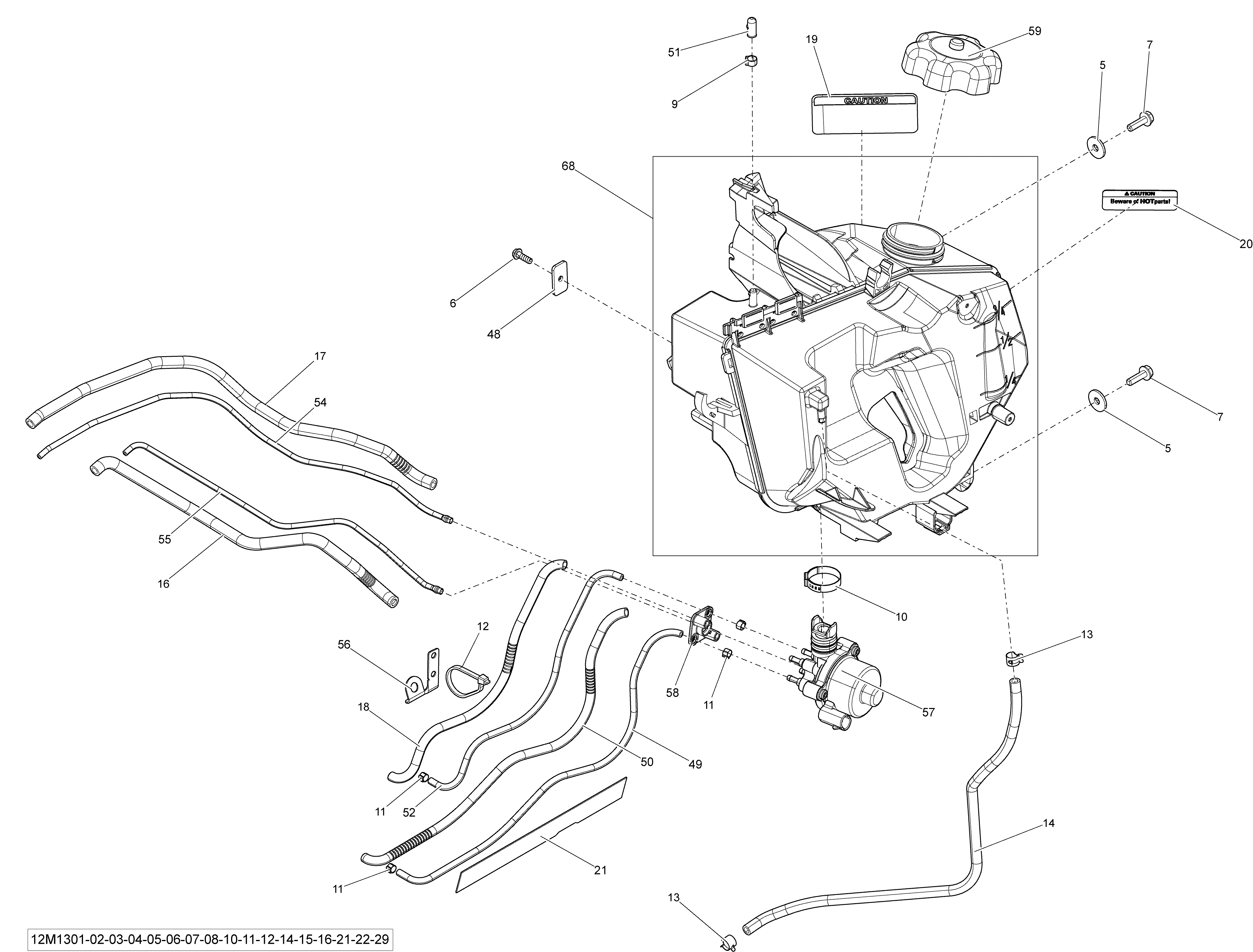

02- Oil System для BRP Ski-Doo MXZ TNT 800RETEC XS - 2013
-
№АртикулНазвание
-
5224061201 Flat WasherFlat Washer
-
6241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
7250000331 Hex. Flanged Screw M6 X 20, Scotch GripHex. Flanged Screw M6 X 20, Scotch Grip
-
9293650043 ClipClip
-
10293650099 Oetiker Gear ClampOetiker Gear Clamp
-
11293650100 Oetiker ClampOetiker Clamp
-
12293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
13414554800 Spring ClampSpring Clamp
-
14415080200 Hose, PolyurethaneHose, Polyurethane
-
16515175442 Tubing 6 mmTubing 6 mm
-
17515175442 Tubing 6 mmTubing 6 mm
-
18515175442 Tubing 6 mmTubing 6 mm
-
19516005528 Notice Decal, OilNotice Decal, Oil
-
21516004648 Protection DecalProtection Decal
-
48519000179 BracketBracket
-
49519000182 Hose 3.5 mmHose 3.5 mm
-
50515175442 Tubing 6 mmTubing 6 mm
-
51519000216 CapCap
-
52519000182 Hose 3.5 mmHose 3.5 mm
-
54519000184 Hose 2.5 mmHose 2.5 mm
-
55519000184 Hose 2.5 mmHose 2.5 mm
-
56519000245 BracketBracket
-
58519000271 BracketBracket
-
59519000273 Cap Ass'yCap Ass'y
-
57519000281 Oil PumpOil Pump
-
68519000297 Oil TankOil Tank
