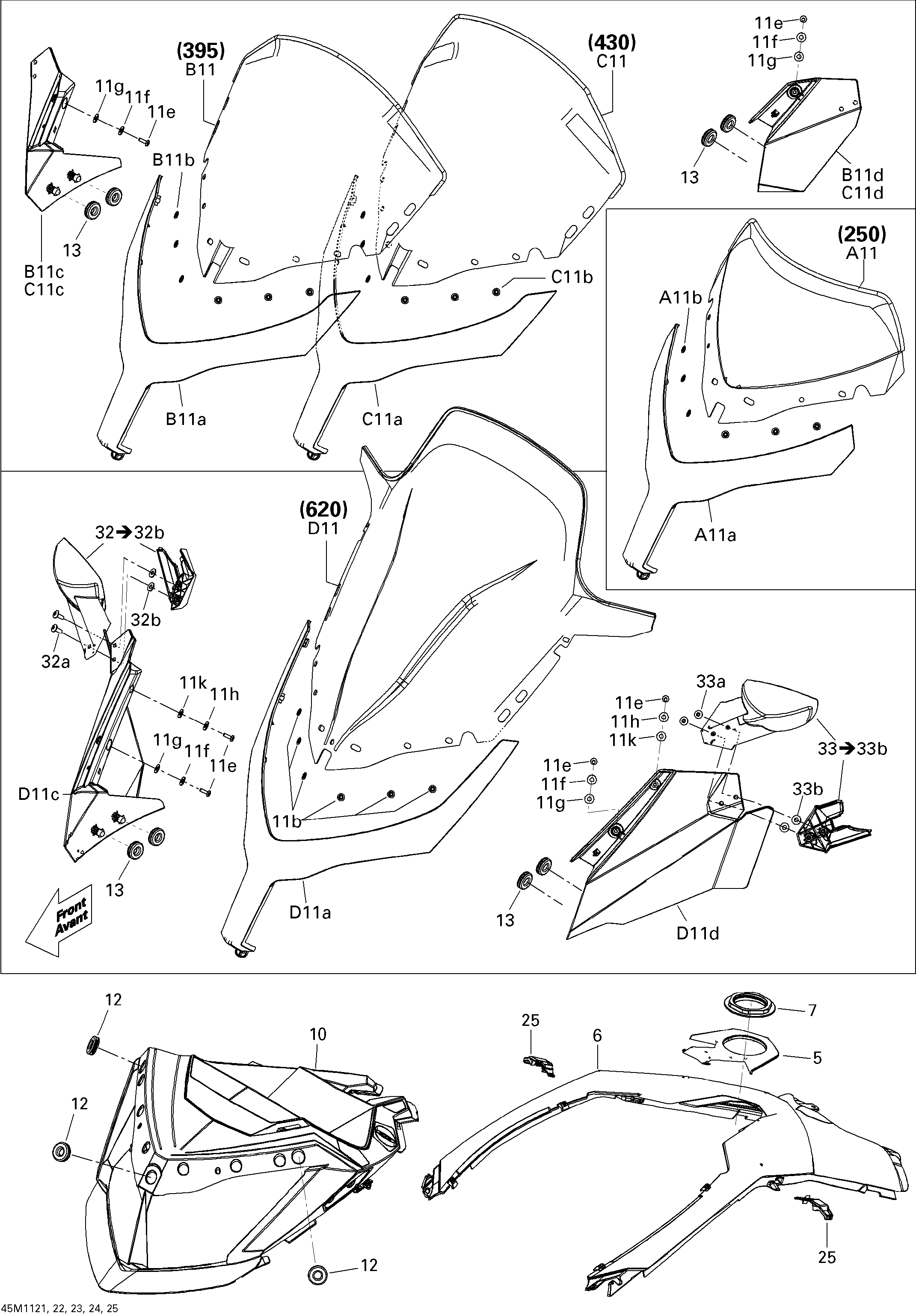

09- Windshield And Console для BRP Ski-Doo Grand Touring LE & SE 1200 XR - 2011
-
№АртикулНазвание
-
5517304027 Cap ConsoleCap Console
-
6517303741 Console, Black. LEConsole, Black. LE
-
6517304541 Console, Black. SEConsole, Black. SE
-
6517304595 Console, Orbital BlueConsole, Orbital Blue
-
7517304518 Console NutConsole Nut
-
10517303971 Indicator Support. LEIndicator Support. LE
-
10517303996 Indicator Support. SEIndicator Support. SE
-
D11517304268 Extra Hight Windshield (620)Extra Hight Windshield (620)
-
D11a517303744 Extra Hight Windshield SupportExtra Hight Windshield Support
-
D11b732610072 Push NutPush Nut
-
D11c517303745 RH Console Air DeflectorRH Console Air Deflector
-
D11d517303746 LH Console Air DeflectorLH Console Air Deflector
-
11e250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
11f250200025 Washer M5Washer M5
-
11g250200024 Rubber Washer 5 mmRubber Washer 5 mm
-
11h517225900 Flat WasherFlat Washer
-
11k517304281 Rubber Washer 5 mmRubber Washer 5 mm
-
13517303756 GrommetGrommet
-
25517303973 Panel LatchPanel Latch
-
32517304145 RH Mirror Ass'y. SERVRH Mirror Ass'y. SERV
-
32a250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
32b250200024 Rubber Washer 5 mmRubber Washer 5 mm
-
33517304146 LH Mirror Ass'y. SERVLH Mirror Ass'y. SERV
-
33a250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
33b250200024 Rubber Washer 5 mmRubber Washer 5 mm
