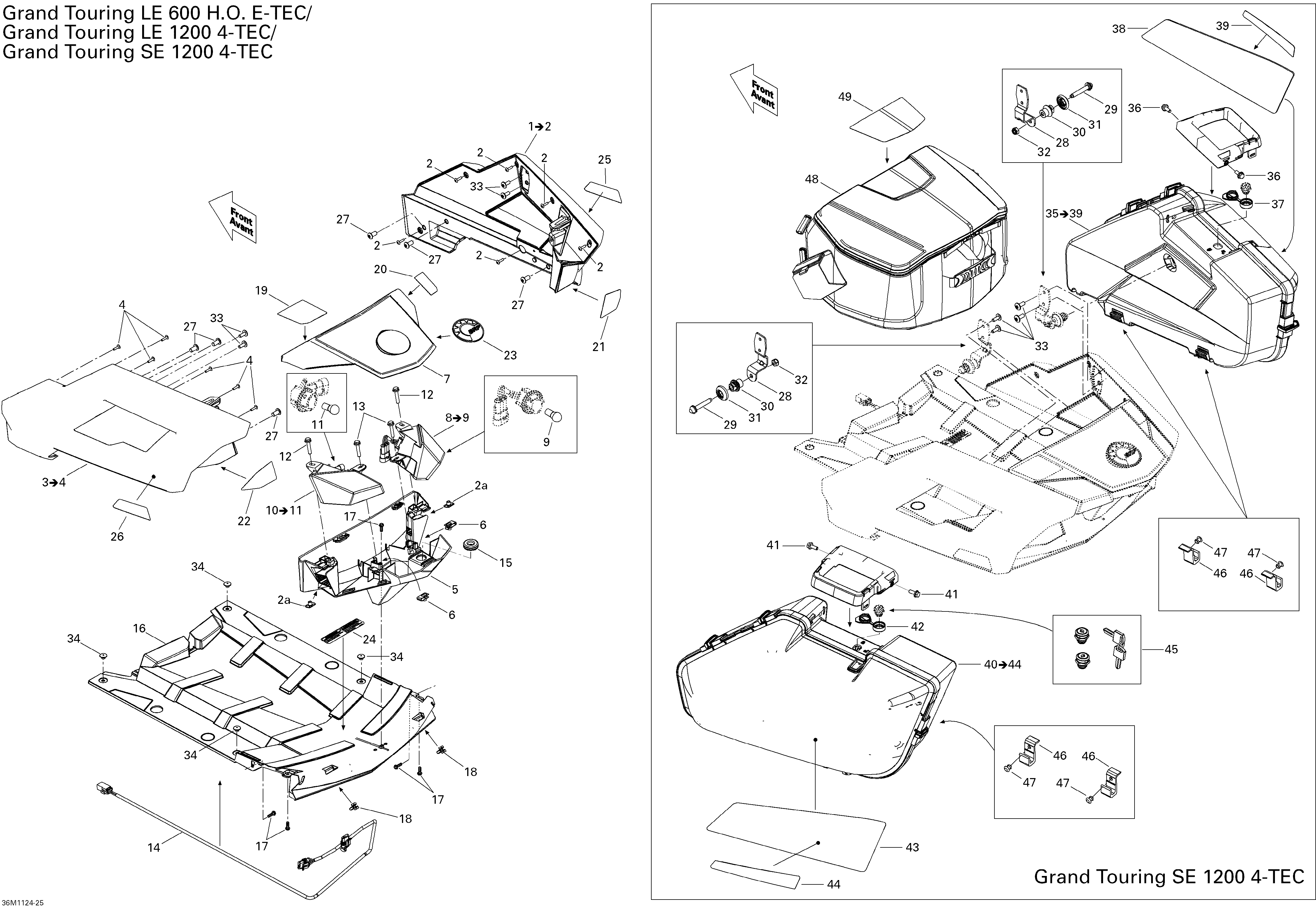

09- Luggage Rack для BRP Ski-Doo Grand Touring LE & SE 1200 XR - 2011
-
№АртикулНазвание
-
1511000631 RH Arm Ass'y. Includes 1 to 2RH Arm Ass'y. Includes 1 to 2
-
2250000294 Torx ScrewTorx Screw
-
2a293100003 Nut M6Nut M6
-
3511000632 LH Arm Ass'y. Includes 3 to 4LH Arm Ass'y. Includes 3 to 4
-
4250000294 Torx ScrewTorx Screw
-
5511000530 RackRack
-
6250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
7511000545 CoverCover
-
8515176849 RH Tail Light. Includes 8 to 9RH Tail Light. Includes 8 to 9
-
9415129425 BulbBulb
-
10515176850 LH Tail Light. Includes 10 to 11LH Tail Light. Includes 10 to 11
-
11415129425 BulbBulb
-
12207563044 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
13207662584 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
14515176634 Harness RackHarness Rack
-
15517303756 GrommetGrommet
-
16511000531 Radiator CoverRadiator Cover
-
17241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
18517302785 ClipClip
-
19516004585 LH Warning Decal (English Version)LH Warning Decal (English Version)
-
20516004603 Safety Decal (English Version)Safety Decal (English Version)
-
21520000731 RH Rear ReflectorRH Rear Reflector
-
22520000732 LH Rear ReflectorLH Rear Reflector
-
23219902469 Logo BRP, 68 mmLogo BRP, 68 mm
-
24516004587 Warning Decal (English Version)Warning Decal (English Version)
-
25520000729 RH Rear ReflectorRH Rear Reflector
-
26520000730 LH Rear ReflectorLH Rear Reflector
-
27250000243 Torx Screw M8 X 16, Scotch GripTorx Screw M8 X 16, Scotch Grip
-
28511000580 Saddle Bag Lug Support. SESaddle Bag Lug Support. SE
-
29511000337 Suitcase Stud. SESuitcase Stud. SE
-
30511000423 Stud Nut. SEStud Nut. SE
-
31511000358 Rubber Bumper. SERubber Bumper. SE
-
32232581200 Hex. Elastic Nut M8, Brass. SEHex. Elastic Nut M8, Brass. SE
-
33250000129 Torx Screw M6 X 16. SETorx Screw M6 X 16. SE
-
34293150103 Pop Rivet 3/16''. SEPop Rivet 3/16''. SE
-
35511000689 RH Suitcase Ass'y. Includes 35 to 39, SERH Suitcase Ass'y. Includes 35 to 39, SE
-
36207561644 Hex. Flanged Screw M6 X 16, Scotch Grip. SEHex. Flanged Screw M6 X 16, Scotch Grip. SE
-
37511000639 Sealing Cap. SESealing Cap. SE
-
38516003766 RH Bag Decal. SERH Bag Decal. SE
-
39520000757 RH Rear Reflector. SERH Rear Reflector. SE
-
40511000690 LH Suit Case Ass'y. Includes 40 to 44, SELH Suit Case Ass'y. Includes 40 to 44, SE
-
41207561644 Hex. Flanged Screw M6 X 16, Scotch Grip. SEHex. Flanged Screw M6 X 16, Scotch Grip. SE
-
42511000639 Sealing Cap. SESealing Cap. SE
-
43516003765 LH Bag Decal. SELH Bag Decal. SE
-
44520000756 LH Rear Reflector. SELH Rear Reflector. SE
-
45511000599 Lock. SELock. SE
-
46518325618 Support Plate. SESupport Plate. SE
-
47293150147 Hemlock Rivet. SEHemlock Rivet. SE
-
48860200174 Rear Travel Bag. SERear Travel Bag. SE
-
49516003817 Bag Decal. SEBag Decal. SE
