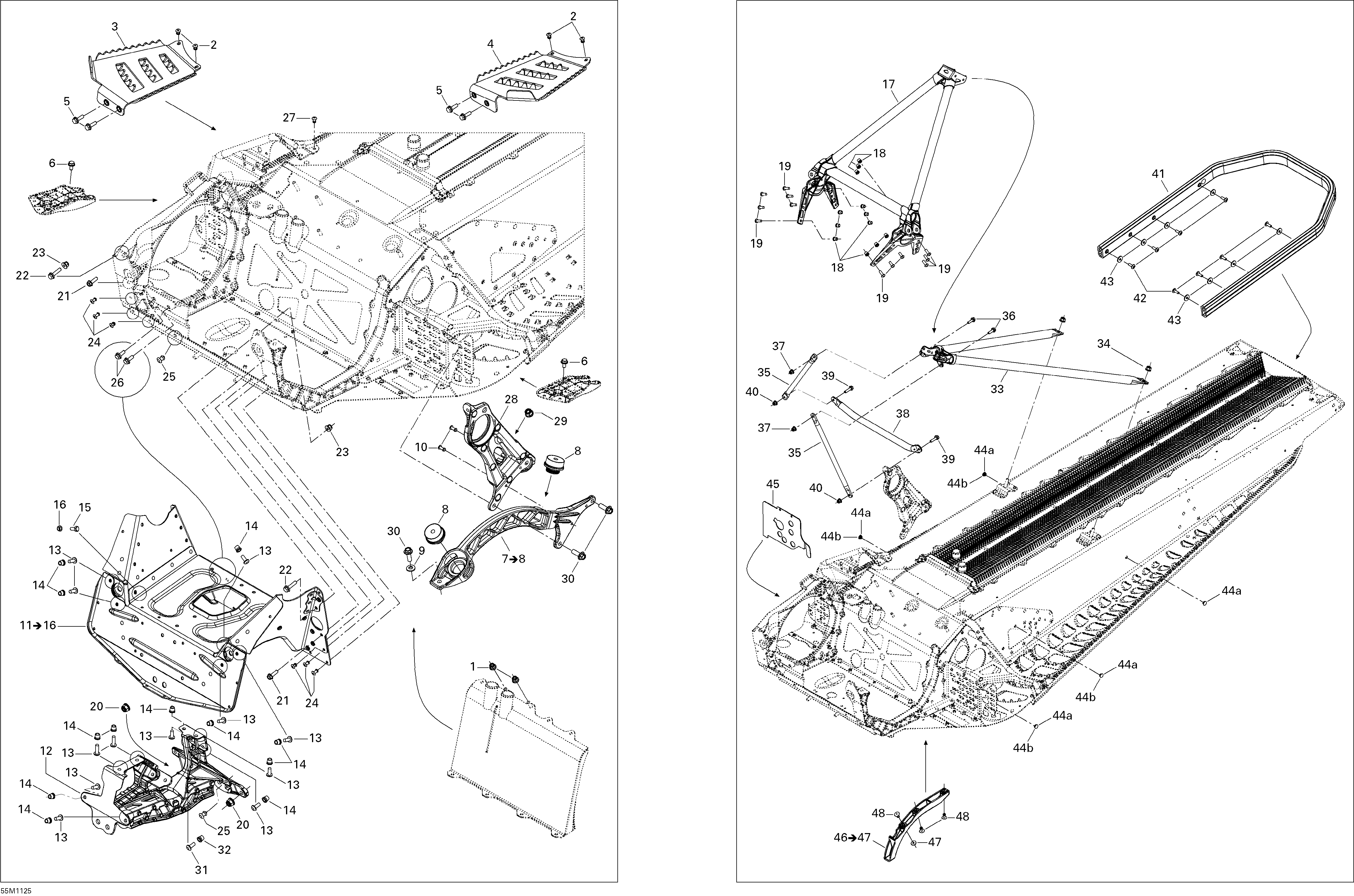

09- Frame and Components LE для BRP Ski-Doo Grand Touring LE & SE 1200 XR - 2011
-
№АртикулНазвание
-
1233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
2390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
3518326193 RH FootrestRH Footrest
-
4518326194 LH FootrestLH Footrest
-
5207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
6207561244 Hex. Flanged Screw M6 X 12, Scotch GripHex. Flanged Screw M6 X 12, Scotch Grip
-
7518326399 Brace. Includes 7 to 8Brace. Includes 7 to 8
-
8512060295 Rubber MountRubber Mount
-
9234281474 Conical Spring Washer M8Conical Spring Washer M8
-
10390407200 Pop Rivet 3/16''Pop Rivet 3/16''
-
11518326686 S-Module. Includes 11 to 16S-Module. Includes 11 to 16
-
12518325925 Front Suspension SupportFront Suspension Support
-
13207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
14233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
15207161444 Hex. Screw M6 X 14Hex. Screw M6 X 14
-
16232561600 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
17518326555 Front MemberFront Member
-
18233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
19207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
20233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
21210261680 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
22207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
23233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
24293150191 Monobolt Rivet, 4.8 mmMonobolt Rivet, 4.8 mm
-
25293150182 Monobolt Rivet 6.4Monobolt Rivet 6.4
-
26207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
27390909100 Avex RivetAvex Rivet
-
28518326192 Driven Pulley SupportDriven Pulley Support
-
29233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
30250000351 Hex. Flanged Screw M8 X 25, NylonHex. Flanged Screw M8 X 25, Nylon
-
31207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
32233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
33518326559 Rear MemberRear Member
-
34233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
35518325114 Upper Column SupportUpper Column Support
-
36207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
37233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
38518326657 Center Column SupportCenter Column Support
-
39207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
40233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
41518325470 Rear BumperRear Bumper
-
42250000402 Torx-Truss Screw M6 X 18Torx-Truss Screw M6 X 18
-
43224061201 Flat WasherFlat Washer
-
44a293730041 Dart 8 mm, Full MoonDart 8 mm, Full Moon
-
45518325418 Heat ShieldHeat Shield
-
46518326973 Front Protector. Includes 46 to 47Front Protector. Includes 46 to 47
-
47517124300 WasherWasher
-
48293150108 Pop Rivet 3/16''Pop Rivet 3/16''
