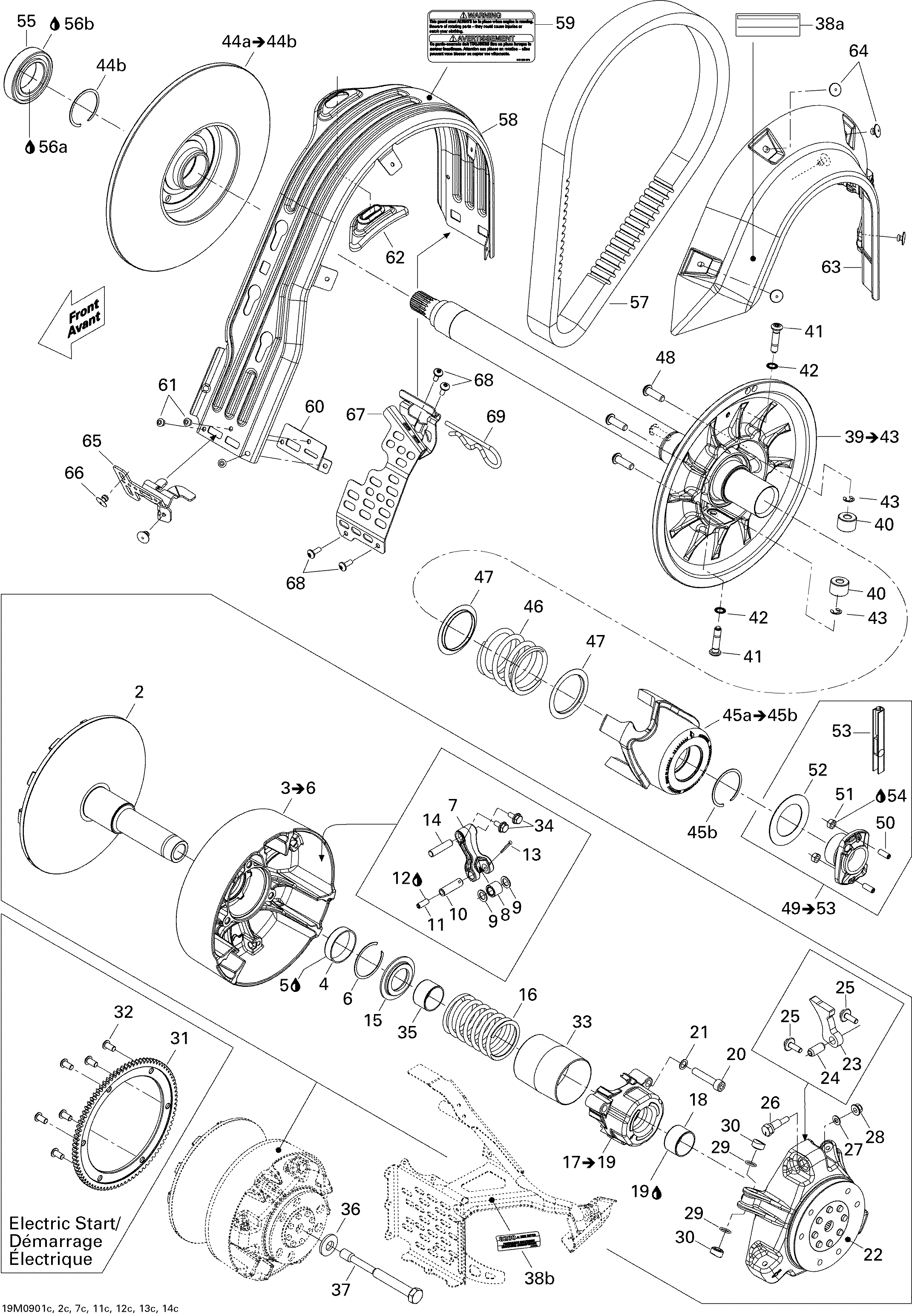

05- Pulley System 800R для BRP Ski-Doo Summit X 800R Power T.E.K. - 2009

№

Артикул

Название
2

417222966 Fixed Flange Ass'y

Fixed Flange Ass'y
3

417223093 Sliding Flanged Ass'y. Includes 3 to 6

Sliding Flanged Ass'y. Includes 3 to 6
4

417223086 Cushion

Cushion
5

293800118 Loctite 680, 50 ml

Loctite 680, 50 ml
6

293370037 Circlip

Circlip
7

417222671 Lever Ass'y

Lever Ass'y
8

417222947 Roller

Roller
9

417004302 Stopper Washer

Stopper Washer
10

417222594 Pin. Europe

Pin. Europe
10

417222595 Threaded Pin, M6. CDN/USA

Threaded Pin, M6. CDN/USA
11

206261299 Socket Set Screw M6 X 12. CDN/USA

Socket Set Screw M6 X 12. CDN/USA
12

293800060 Loctite 243, 10 ml. CDN/USA

Loctite 243, 10 ml. CDN/USA
13

732958001 Cotter Pin

Cotter Pin
14

417009202 Lever Axle

Lever Axle
15

417222312 Spring Seat

Spring Seat
16

415034900 Spring, Violet/blue

Spring, Violet/blue
17

417222759 Spring Cover Ass'y. Includes 17 to 19

Spring Cover Ass'y. Includes 17 to 19
18

417009204 Bushing

Bushing
19

413703100 Loctite 609, 10 ml

Loctite 609, 10 ml
20

205084044 Socket Head Screw M8 X 40

Socket Head Screw M8 X 40
21

250200009 Lock Washer 8 mm

Lock Washer 8 mm
22

417222634 Governor Cup

Governor Cup
23

417222508 Ramp 413. Europe

Ramp 413. Europe
23

417223098 Ramp 441. CDN/USA

Ramp 441. CDN/USA
24

250400009 Rolled Pin 10 X 22

Rolled Pin 10 X 22
25

250000059 Hex. Flanged Scew M6 X 18

Hex. Flanged Scew M6 X 18
26

417222955 Calibration Screw

Calibration Screw
27

417005600 Washer

Washer
28

233061414 Hex. Flanged Nut M6

Hex. Flanged Nut M6
29

732401030 O-Ring

O-Ring
30

417223021 Slider Shoe

Slider Shoe
31

417222952 Ring Gear

Ring Gear
32

250000243 Torx Screw M8 X 16, Scotch Grip

Torx Screw M8 X 16, Scotch Grip
33

417009205 Guard

Guard
34

250000182 Serrated Hex. Flanged Screw M6 X 16

Serrated Hex. Flanged Screw M6 X 16
35

417222826 Bushing

Bushing
36

250200006 Spring Washer 14 mm

Spring Washer 14 mm
37

417300296 Drive Pulley Bolt

Drive Pulley Bolt
38a

516003708 Decal, Notice, Drive Pulley Bolt

Decal, Notice, Drive Pulley Bolt
38b

516004045 Decal RPM, Maximum Horsepower

Decal RPM, Maximum Horsepower
39

417127075 Fixe Flange Ass'y. Includes 39 to 43

Fixe Flange Ass'y. Includes 39 to 43
40

417127016 Roller

Roller
41

417127078 Stud

Stud
42

250200009 Lock Washer 8 mm

Lock Washer 8 mm
43

414753500 Circlip

Circlip
44a

417126955 Sliding Flange Ass'y. Includes 44a to 44b

Sliding Flange Ass'y. Includes 44a to 44b
44b

293370049 Circlip

Circlip
45a

417127133 Cam Ass'y. Includes 45a to 45b, CDN/USA

Cam Ass'y. Includes 45a to 45b, CDN/USA
45a

417126973 Cam Ass'y. Includes 45a to 45b, Europe

Cam Ass'y. Includes 45a to 45b, Europe
45b

293370049 Circlip

Circlip
46

417127062 Spring

Spring
47

417127116 Swivel Abutment

Swivel Abutment
48

250000283 Torx Screw M8 X 25, Scotch Grip

Torx Screw M8 X 25, Scotch Grip
49

415129409 Adjustment Kit. Includes 49 to 53

Adjustment Kit. Includes 49 to 53
50

206261690 Pressure Screw M6 X 16

Pressure Screw M6 X 16
51

232061414 Hex. Nut M6

Hex. Nut M6
52

417127155 Washer

Washer
53

529035501 Spacing Tool

Spacing Tool
54

293800060 Loctite 243, 10 ml

Loctite 243, 10 ml
55

504152574 Ball Bearing

Ball Bearing
56a

413703100 Loctite 609, 10 ml

Loctite 609, 10 ml
56b

293800070 Loctite 767, Antiseize Lubricant, 8 oz

Loctite 767, Antiseize Lubricant, 8 oz
57

417300377 Belt

Belt
58

417300357 Belt Guard

Belt Guard
59

516002670 Warning Decal, Security Belt Guard

Warning Decal, Security Belt Guard
60

417300380 Reinforcement

Reinforcement
61

390909200 Avex Rivet

Avex Rivet
62

417300381 Guide

Guide
63

417300356 Side Protector

Side Protector
64

293150103 Pop Rivet

Pop Rivet
65

417300360 Front Belt Guard Attach

Front Belt Guard Attach
66

293150104 Pop Rivet 3/16''

Pop Rivet 3/16''
67

417300375 Belt Guard Bracket

Belt Guard Bracket
68

250000145 Torx Screw M5 X 14

Torx Screw M5 X 14
69

114045200 Hair Pin

Hair Pin
