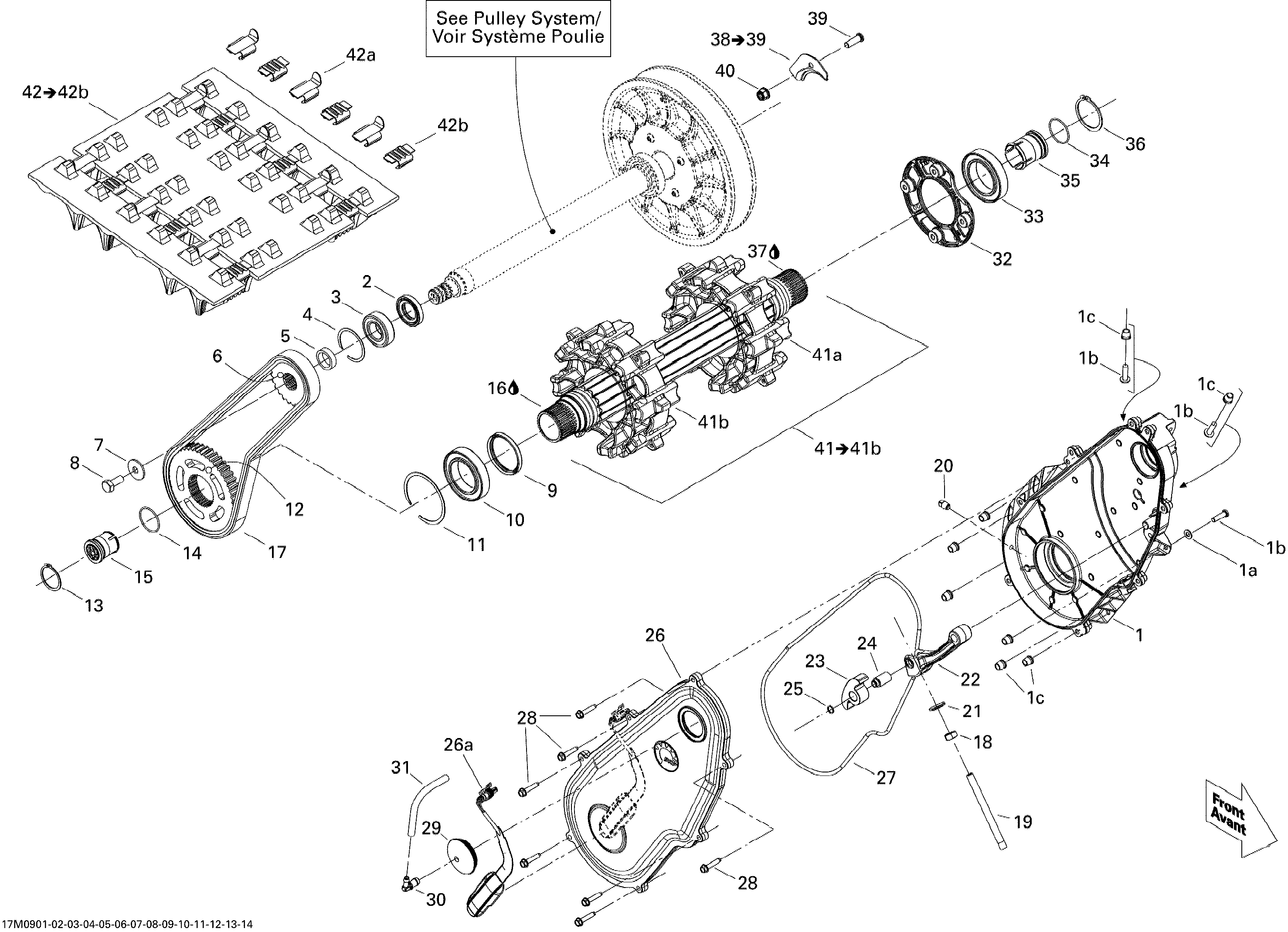

05- Drive System 800R для BRP Ski-Doo Summit X 800R Power T.E.K. - 2009

  • №
    Артикул
    Название
  • 1
    504152865 Chaincase
    Chaincase
  • 1a
    234062410 Flat Washer 6 mm
    Flat Washer 6 mm
  • 1b
    207662034 Hex. Flanged Screw
    Hex. Flanged Screw
  • 1c
    233261434 Flanged Elastic Nut M6
    Flanged Elastic Nut M6
  • 2
    415049300 Seal
    Seal
  • 3
    293350055 Ball Bearing
    Ball Bearing
  • 4
    504152576 Circlip
    Circlip
  • 5
    504152628 Shim
    Shim
  • 6
    504096200 Sprocket, 21 Teeth. 800R PTEK
    Sprocket, 21 Teeth. 800R PTEK
  • 7
    504152784 Spring Washer
    Spring Washer
  • 8
    207102544 Hex. Screw M10 X 25
    Hex. Screw M10 X 25
  • 9
    504152571 Seal
    Seal
  • 10
    504152573 Ball Bearing
    Ball Bearing
  • 11
    504152582 Circlip
    Circlip
  • 12
    504152593 Sprocket, 45 Teeth. 800R PTEK, Track 146'' and 154''
    Sprocket, 45 Teeth. 800R PTEK, Track 146'' and 154''
  • 12
    504152581 Sprocket, 49 Teeth. 800R PTEK Track 163'', 600HO ETEC Track 154''
    Sprocket, 49 Teeth. 800R PTEK Track 163'', 600HO ETEC Track 154''
  • 13
    504152572 Circlip
    Circlip
  • 14
    293300122 O-Ring
    O-Ring
  • 15
    504152619 Cap
    Cap
  • 16
    219700417 Synthetic Grease, 400 g
    Synthetic Grease, 400 g
  • 17
    504152579 Drive Chain, 102 Links. 800R PTEK, Track 146'' and 154''
    Drive Chain, 102 Links. 800R PTEK, Track 146'' and 154''
  • 17
    504152630 Drive Chain 106 Links. 800R PTEK Track 163''
    Drive Chain 106 Links. 800R PTEK Track 163''
  • 18
    232006414 Hex. Nut M10
    Hex. Nut M10
  • 19
    504152602 Adjustment Screw
    Adjustment Screw
  • 20
    504152636 Magnetic Plug
    Magnetic Plug
  • 21
    250200100 Bonded Washer
    Bonded Washer
  • 22
    504152685 Chain Tensioner
    Chain Tensioner
  • 23
    504152739 Chain Slider
    Chain Slider
  • 24
    504152841 Tensionner Axle
    Tensionner Axle
  • 25
    504152282 Circlip
    Circlip
  • 26
    504152763 Chaincase Cover Ass'y
    Chaincase Cover Ass'y
  • 26a
    504152732 Chaincase Cover Sensor
    Chaincase Cover Sensor
  • 27
    293300130 O-Ring
    O-Ring
  • 28
    250000360 Flanged Hex. Screw M6 X 30
    Flanged Hex. Screw M6 X 30
  • 29
    504152860 Cap
    Cap
  • 30
    414580700 Elbow Male Connector
    Elbow Male Connector
  • 31
    415080200 Polyurethane Hose
    Polyurethane Hose
  • 32
    507032437 Bearing Housing
    Bearing Housing
  • 33
    293350059 Ball Bearing
    Ball Bearing
  • 34
    293300122 O-Ring
    O-Ring
  • 35
    504152619 Cap
    Cap
  • 36
    504152572 Circlip
    Circlip
  • 37
    219700417 Synthetic Grease, 400 g
    Synthetic Grease, 400 g
  • 38
    504152633 Bearing Housing. Includes 38 to 39
    Bearing Housing. Includes 38 to 39
  • 39
    250300028 Clinch Stud, M8 X 25
    Clinch Stud, M8 X 25
  • 40
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 41
    504152845 Axle Drive Ass'y. Includes 41 to 41b
    Axle Drive Ass'y. Includes 41 to 41b
  • 42
    504152799 Track Ass'y 16X146X2.2P. Includes 42 to 42b, 800R PTEK
    Track Ass'y 16X146X2.2P. Includes 42 to 42b, 800R PTEK
  • 42
    504152801 Track Ass'y 16X163X2.2P. Includes 42 to 42b, 800R PTEK
    Track Ass'y 16X163X2.2P. Includes 42 to 42b, 800R PTEK
  • 42
    504152800 Track Ass'y 16X154X2.2P. Includes 42 to 42b, 800R PTEK
    Track Ass'y 16X154X2.2P. Includes 42 to 42b, 800R PTEK
  • 42a
    415129222 Guide
    Guide
  • 42b
    504152652 Cleat
    Cleat
