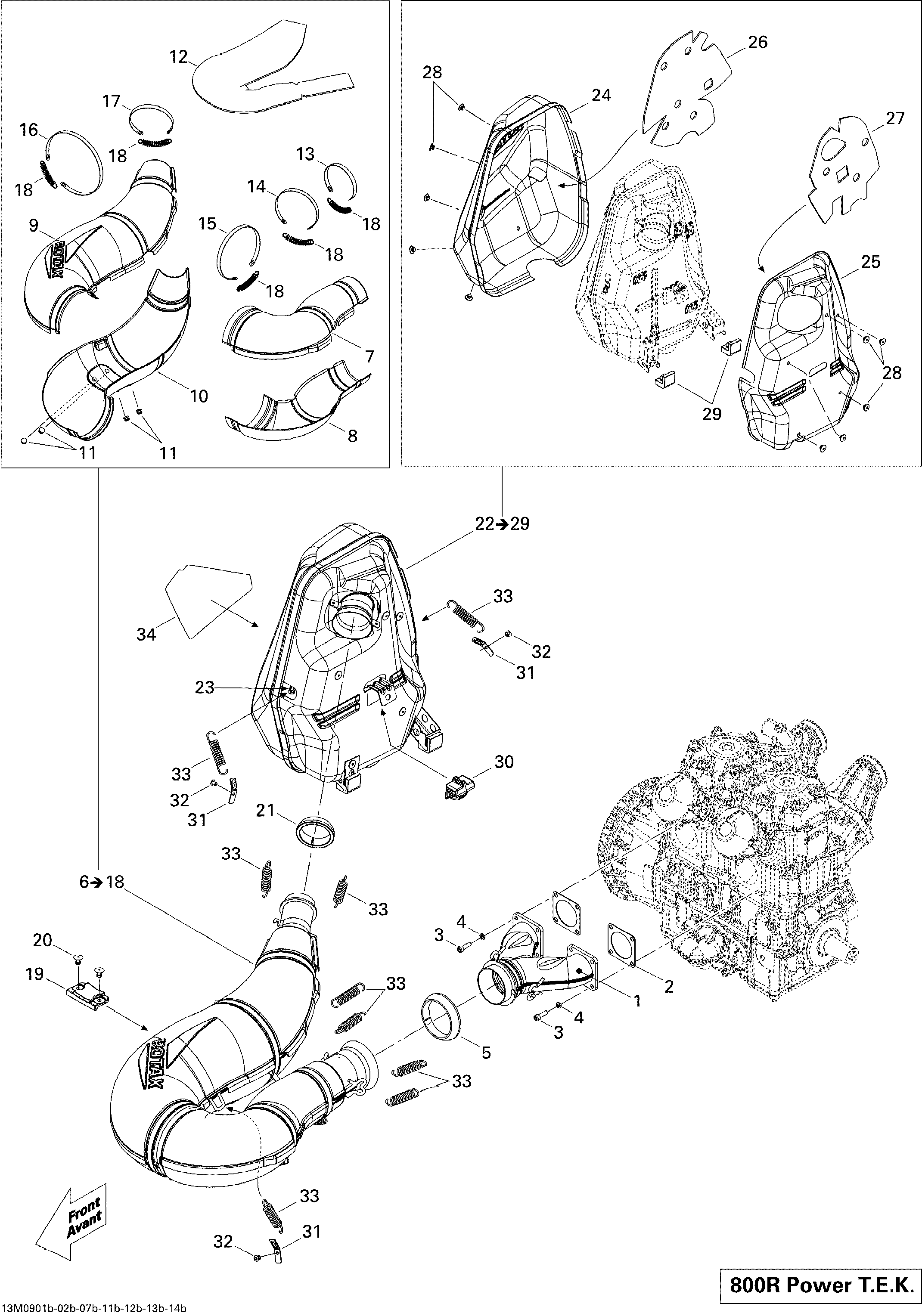

01- Exhaust System для BRP Ski-Doo Summit X 800R Power T.E.K. - 2009
-
№АртикулНазвание
-
1420673370 Exhaust ManifoldExhaust Manifold
-
2420430480 GasketGasket
-
3514054626 Socket Screw M6 X 22, Scotch GripSocket Screw M6 X 22, Scotch Grip
-
4514053953 WasherWasher
-
5514053487 Exhaust GasketExhaust Gasket
-
6514054593 Tune Pipe Ass'y. Includes 6 to 18Tune Pipe Ass'y. Includes 6 to 18
-
7514054219 Front Upper Half EnvelopeFront Upper Half Envelope
-
8514054220 Front Lower Half EnvelopeFront Lower Half Envelope
-
9514054590 Rear Upper Half EnveloppeRear Upper Half Enveloppe
-
10514054279 Rear Lower Half EnveloppeRear Lower Half Enveloppe
-
11293150091 Henrob RivetHenrob Rivet
-
12514054273 Insulating WoolInsulating Wool
-
13514053536 Retaining StrapRetaining Strap
-
14514054408 Retaining StrapRetaining Strap
-
15514054409 Retaining StrapRetaining Strap
-
16514054410 Retaining StrapRetaining Strap
-
17514053499 Retaining StrapRetaining Strap
-
18514053643 SpringSpring
-
19514054275 BumperBumper
-
20293150103 Pop RivetPop Rivet
-
21514054174 Exhaust GasketExhaust Gasket
-
22514054441 Muffler Ass'y. Includes 22 to 29Muffler Ass'y. Includes 22 to 29
-
23514054155 Spring BracketSpring Bracket
-
24514054433 RH DeflectorRH Deflector
-
25514054202 LH DeflectorLH Deflector
-
26514054298 RH Insulating WoolRH Insulating Wool
-
27514054299 LH Insulating WoolLH Insulating Wool
-
28390910000 Pop Rivet 3/16''Pop Rivet 3/16''
-
29514054274 Lower StopperLower Stopper
-
30514054606 Upper StopperUpper Stopper
-
31514054391 Spring BracketSpring Bracket
-
32390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
33514054226 SpringSpring
-
34514054488 Reflective SheetReflective Sheet
