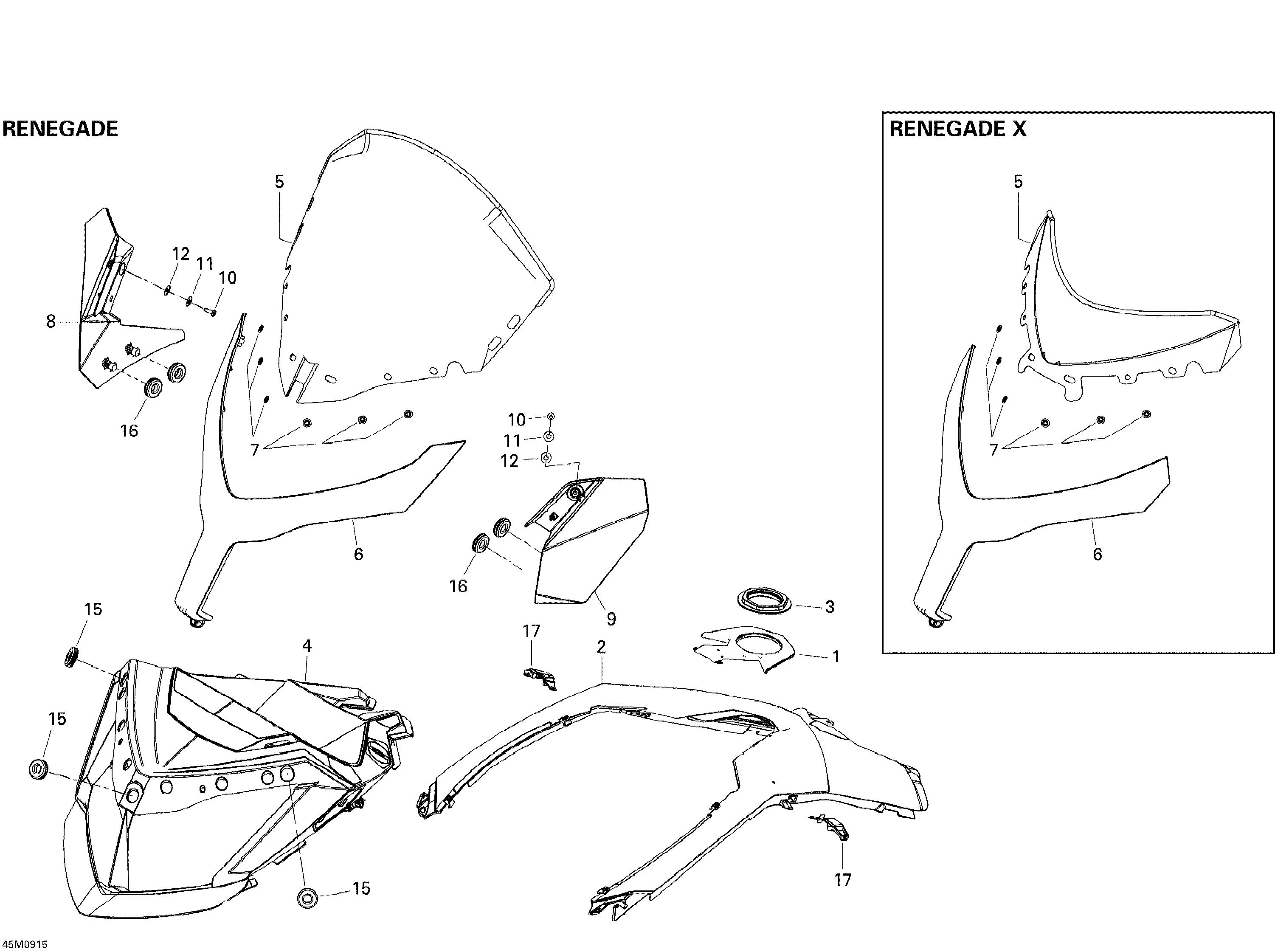

09- Windshield And Console Renegade для BRP Ski-Doo MX Z Renegade 1200 4-TEC - 2009
-
№АртикулНазвание
-
1517304027 Cap ConsoleCap Console
-
2517303741 Console. Black-BlackConsole. Black-Black
-
2517304041 Console. Yellow/Yellow-BlackConsole. Yellow/Yellow-Black
-
3517302575 Console NutConsole Nut
-
4517303972 Indicator SupportIndicator Support
-
5517303887 Medium WindshieldMedium Windshield
-
6517303798 Medium Windshield SupportMedium Windshield Support
-
7732610072 Push NutPush Nut
-
8517304024 RH Console Air DeflectorRH Console Air Deflector
-
9517304025 LH Console Air DeflectorLH Console Air Deflector
-
10250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
11250200025 Washer M5Washer M5
-
12250200024 Rubber Washer 5 mmRubber Washer 5 mm
-
15517303756 GrommetGrommet
-
16517303756 GrommetGrommet
-
17517303973 Panel LatchPanel Latch
