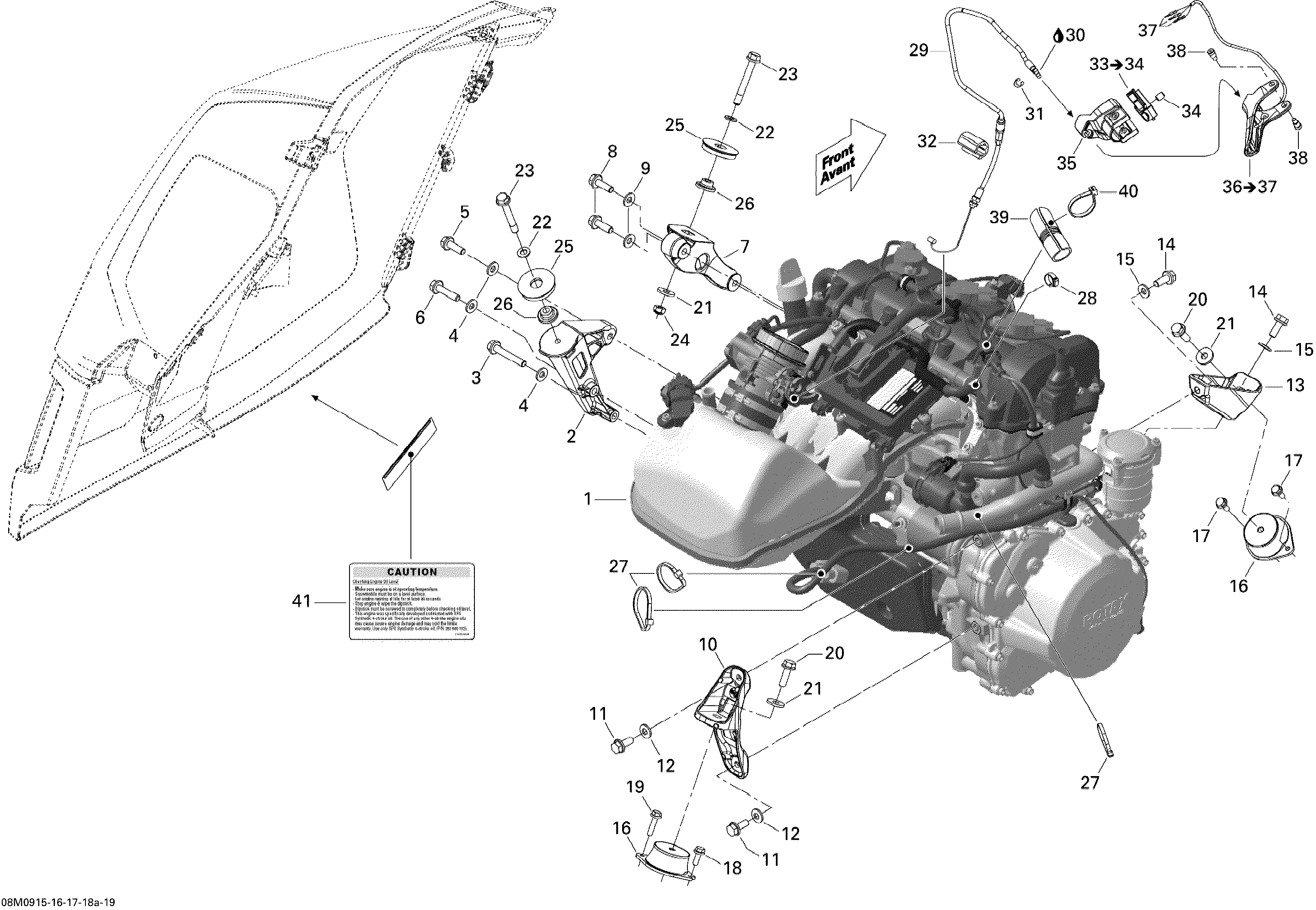

01- Engine RENEGADE для BRP Ski-Doo MX Z Renegade 1200 4-TEC - 2009

  • №
    Артикул
    Название
  • 1
    400101128 Engine 1203
    Engine 1203
  • 2
    512060231 Rear Support, PTO
    Rear Support, PTO
  • 3
    207585086 Hex. Flanged Screw M8 X 50, Scotch Grip
    Hex. Flanged Screw M8 X 50, Scotch Grip
  • 4
    234281474 Conical Spring Washer M8
    Conical Spring Washer M8
  • 5
    207582586 Hex. Flanged Screw M8 X 25, Scotch Grip
    Hex. Flanged Screw M8 X 25, Scotch Grip
  • 6
    207583586 Hex. Flanged Screw M8 X 35, Scotch Grip
    Hex. Flanged Screw M8 X 35, Scotch Grip
  • 7
    512060232 Front Support, PTO
    Front Support, PTO
  • 8
    207582586 Hex. Flanged Screw M8 X 25, Scotch Grip
    Hex. Flanged Screw M8 X 25, Scotch Grip
  • 9
    234281474 Conical Spring Washer M8
    Conical Spring Washer M8
  • 10
    512060233 Rear Support, MAG
    Rear Support, MAG
  • 11
    207582044 Hex. Flanged Screw M8 X 20, Scotch Grip
    Hex. Flanged Screw M8 X 20, Scotch Grip
  • 12
    234281474 Conical Spring Washer M8
    Conical Spring Washer M8
  • 13
    512060234 Front Support, MAG
    Front Support, MAG
  • 14
    207582044 Hex. Flanged Screw M8 X 20, Scotch Grip
    Hex. Flanged Screw M8 X 20, Scotch Grip
  • 15
    234281474 Conical Spring Washer M8
    Conical Spring Washer M8
  • 16
    512060457 Rubber Mount
    Rubber Mount
  • 17
    207561644 Hex. Flanged Screw M6 X 16, Scotch Grip
    Hex. Flanged Screw M6 X 16, Scotch Grip
  • 18
    207561644 Hex. Flanged Screw M6 X 16, Scotch Grip
    Hex. Flanged Screw M6 X 16, Scotch Grip
  • 19
    207562534 Hex. Flanged Screw M6 X 25, Scotch Grip
    Hex. Flanged Screw M6 X 25, Scotch Grip
  • 20
    207582586 Hex. Flanged Screw M8 X 25, Scotch Grip
    Hex. Flanged Screw M8 X 25, Scotch Grip
  • 21
    503183200 Washer, Yellow
    Washer, Yellow
  • 22
    250200008 Flat Washer 8 mm
    Flat Washer 8 mm
  • 23
    207586044 Hex. Flanged Screw M8 X 60, Scotch Grip
    Hex. Flanged Screw M8 X 60, Scotch Grip
  • 24
    232581414 Hex. Elastic Nut M8
    Hex. Elastic Nut M8
  • 25
    512060244 Stopper
    Stopper
  • 26
    512060285 Spacer
    Spacer
  • 27
    414115200 Tie-Rap 180 mm
    Tie-Rap 180 mm
  • 28
    293650025 Oetiker Clamp
    Oetiker Clamp
  • 29
    512060423 Throttle Cable
    Throttle Cable
  • 30
    293550004 Dielectric Grease, 150 g
    Dielectric Grease, 150 g
  • 31
    414274500 Circlip
    Circlip
  • 32
    512060313 Protector
    Protector
  • 33
    512060198 Upper Housing. Includes 33 to 34
    Upper Housing. Includes 33 to 34
  • 34
    414440800 Set Screw M8 X 10
    Set Screw M8 X 10
  • 35
    512060430 Lower Housing
    Lower Housing
  • 36
    512060466 Throttle Handle Ass'y. Includes 36 to 37
    Throttle Handle Ass'y. Includes 36 to 37
  • 37
    515175232 Male Terminal
    Male Terminal
  • 38
    732601143 Flanged Screw
    Flanged Screw
  • 39
    409901600 Tubing, 19 mm
    Tubing, 19 mm
  • 40
    414115200 Tie-Rap 180 mm
    Tie-Rap 180 mm
  • 41
    516003856 Caution Decal, Checking Engine Oil Level
    Caution Decal, Checking Engine Oil Level
