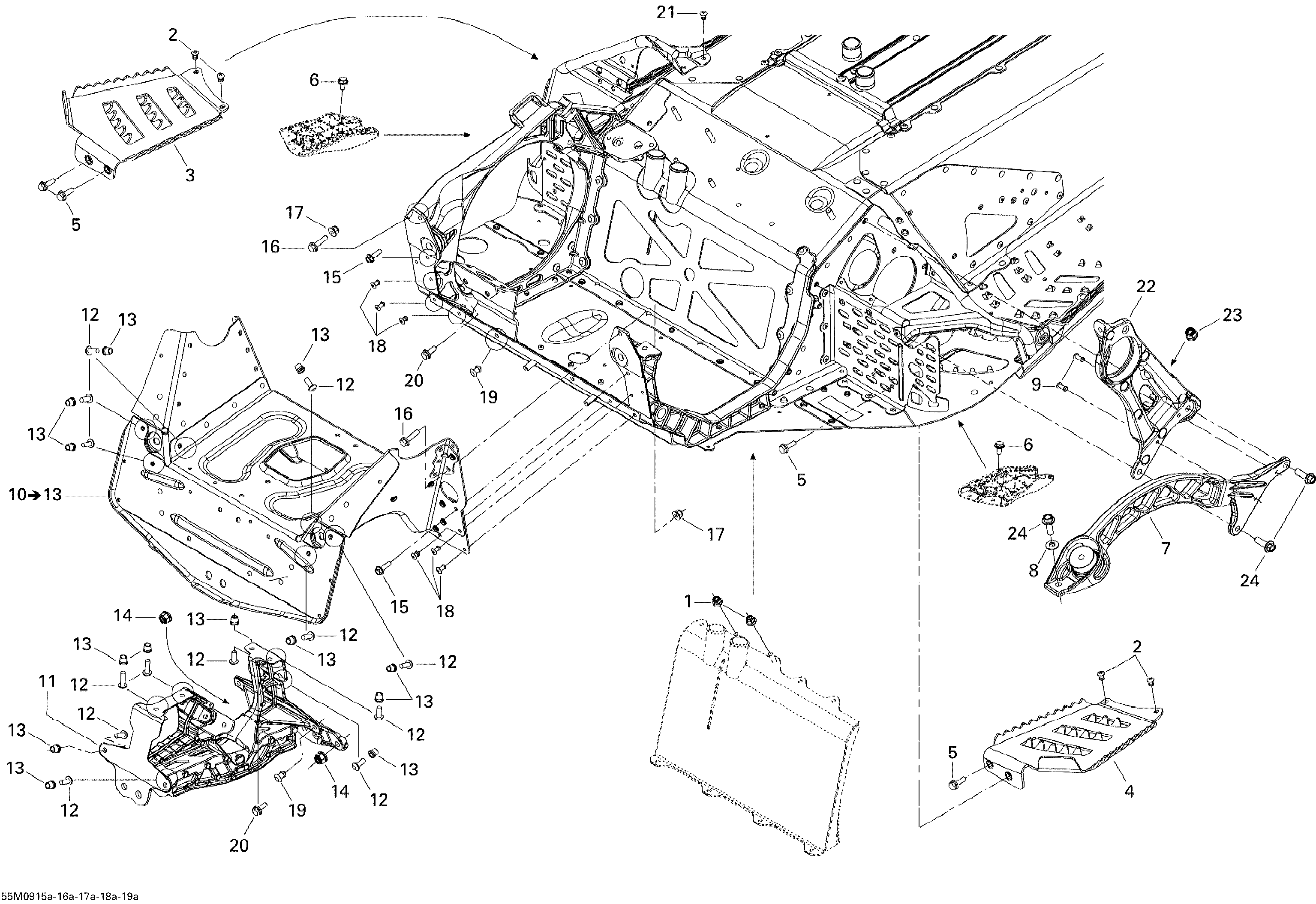

09- Frame and Components для BRP Ski-Doo MX Z Renegade 1200 4-TEC - 2009

  • №
    Артикул
    Название
  • 1
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 6
    207561244 Hex. Flanged Screw M6 X 12, Scotch Grip
    Hex. Flanged Screw M6 X 12, Scotch Grip
  • 7
    518325005 Brace
    Brace
  • 8
    234281474 Conical Spring Washer M8
    Conical Spring Washer M8
  • 9
    390407200 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 10
    518325924 S-Module. Includes 10 to 13
    S-Module. Includes 10 to 13
  • 11
    518325925 Front Suspension Support
    Front Suspension Support
  • 12
    207662044 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 13
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 14
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 15
    210262080 Hex. Forming Screw M6 X 20
    Hex. Forming Screw M6 X 20
  • 16
    207662544 Hex. Flanged Screw M6 X 25
    Hex. Flanged Screw M6 X 25
  • 17
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 18
    293150144 Stavex Rivet
    Stavex Rivet
  • 19
    293150147 Hemlock Rivet
    Hemlock Rivet
  • 20
    207661644 Hex. Flanged Screw M6 X 16
    Hex. Flanged Screw M6 X 16
  • 21
    390909100 Avex Rivet
    Avex Rivet
  • 22
    518325933 Driven Pulley Support
    Driven Pulley Support
  • 23
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 24
    250000351 Hex. Flanged Screw M8 X 25, Nylon
    Hex. Flanged Screw M8 X 25, Nylon
