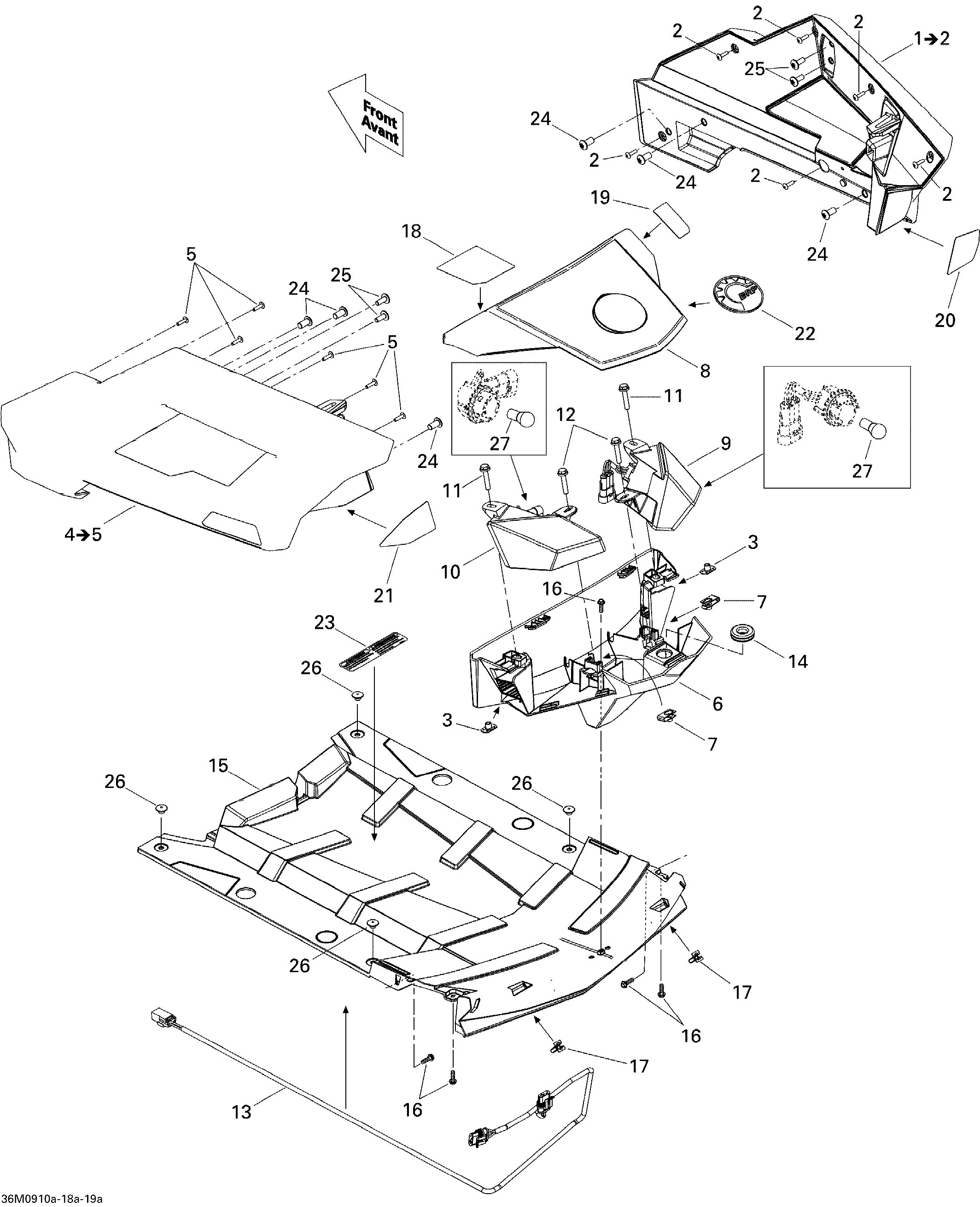

09- Luggage Rack для BRP Ski-Doo GTX Sport 500SS - 2009
-
№АртикулНазвание
-
1511000631 RH Arm Ass'y. Includes 1 to 2RH Arm Ass'y. Includes 1 to 2
-
2250000294 Torx ScrewTorx Screw
-
3293100003 Nut M6Nut M6
-
4511000632 LH Arm Ass'y. Includes 4 to 5LH Arm Ass'y. Includes 4 to 5
-
5250000294 Torx ScrewTorx Screw
-
6511000530 RackRack
-
7250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
8511000545 CoverCover
-
9515176849 RH Tail LightRH Tail Light
-
10515176850 LH Tail LightLH Tail Light
-
11207563044 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
12207662584 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
13515176634 Harness RackHarness Rack
-
14517303756 GrommetGrommet
-
15511000531 Radiator CoverRadiator Cover
-
16241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
17517302785 ClipClip
-
18520000772 English Caution LabelEnglish Caution Label
-
19520000774 English Load LabelEnglish Load Label
-
20520000731 RH Rear ReflectorRH Rear Reflector
-
21520000732 LH Rear ReflectorLH Rear Reflector
-
22219902469 BRP Logo, 68 mmBRP Logo, 68 mm
-
23516003035 Clenching DecalClenching Decal
-
24250000243 Torx Screw M8 X 16, Scotch GripTorx Screw M8 X 16, Scotch Grip
-
26293150103 Pop RivetPop Rivet
-
27415129425 BulbBulb
