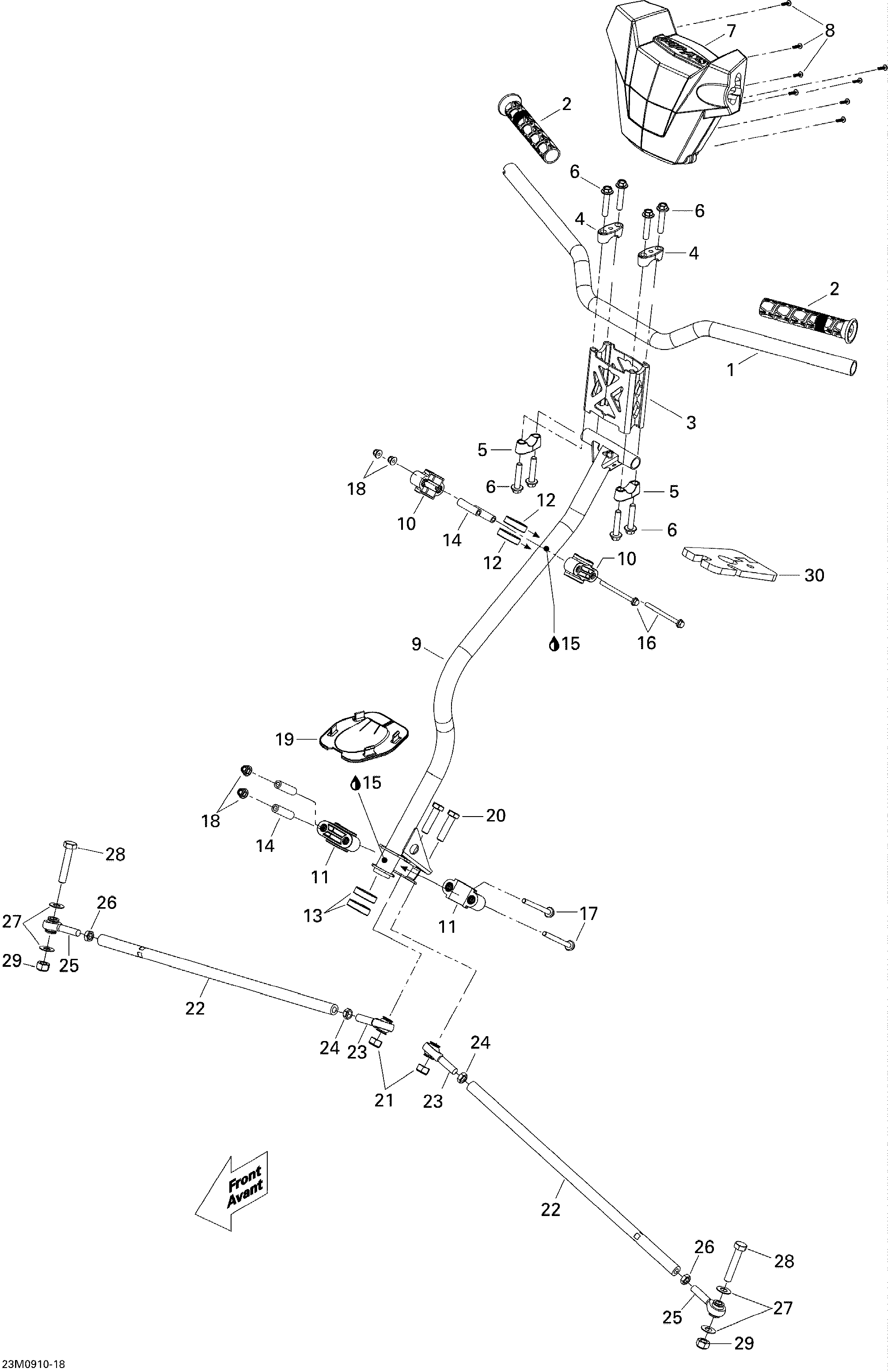

07- Steering для BRP Ski-Doo GTX Sport 500SS - 2009
-
№АртикулНазвание
-
1506152304 Handle BarHandle Bar
-
2506152424 GripGrip
-
3860200268 Handlebar ExtensionHandlebar Extension
-
4506152394 Upper Steering SupportUpper Steering Support
-
5506152395 Lower Steering SupportLower Steering Support
-
6250000285 Hex. Flanged Screw M8 x 40Hex. Flanged Screw M8 x 40
-
7506152307 Steering PadSteering Pad
-
8250000297 Truss Head Torx Screw K50 X 20Truss Head Torx Screw K50 X 20
-
9506152310 Main TubeMain Tube
-
10506152219 Upper Half HousingUpper Half Housing
-
11506152217 Lower Half HousingLower Half Housing
-
12506152292 Upper Vibration RingUpper Vibration Ring
-
13506152218 Lower Vibration RingLower Vibration Ring
-
14506152297 Housing BushingHousing Bushing
-
15219700417 Synthetic Grease, 400 gSynthetic Grease, 400 g
-
16207667086 Hex. Flanged Screw M6 x 70Hex. Flanged Screw M6 x 70
-
17207667044 Hex. Flange Screw M6 X 70Hex. Flange Screw M6 X 70
-
18233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
19506152163 PlatePlate
-
20207004034 Hex. Screw M10 X 40Hex. Screw M10 X 40
-
21232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
22506152095 Tie RodTie Rod
-
23506152081 LH Thread Ball JointLH Thread Ball Joint
-
24250100016 LH Hex. Jam Nut M10LH Hex. Jam Nut M10
-
25506152019 RH Thread Ball JointRH Thread Ball Joint
-
26732610010 RH Hex. Jam Nut M10RH Hex. Jam Nut M10
-
27506152194 WasherWasher
-
28207005544 Hex. Screw M10 X 55Hex. Screw M10 X 55
-
29232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
30506152334 CushionCushion
