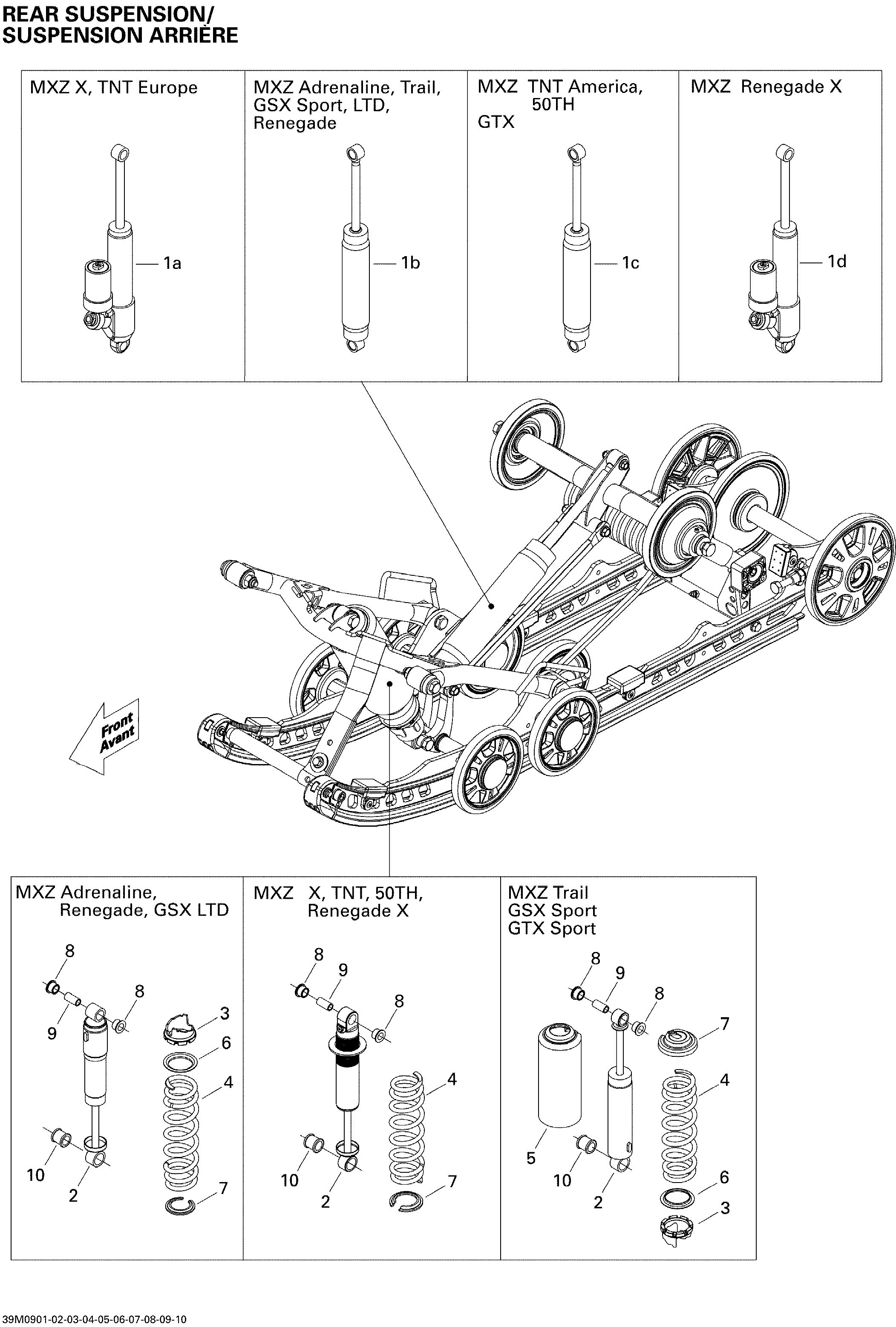

08- Rear Suspension Shocks для BRP Ski-Doo GTX Sport 500SS - 2009
-
№АртикулНазвание
-
1c503191853 Rear ShockRear Shock
-
2503191590 Center ShockCenter Shock
-
3503183700 Cam 45°Cam 45°
-
4503191329 SpringSpring
-
5503191126 ProtectorProtector
-
6503191872 Spring GuideSpring Guide
-
7706200881 Spring StopperSpring Stopper
-
8503189117 CushionCushion
-
9503189282 BushingBushing
-
10503189271 CushionCushion
