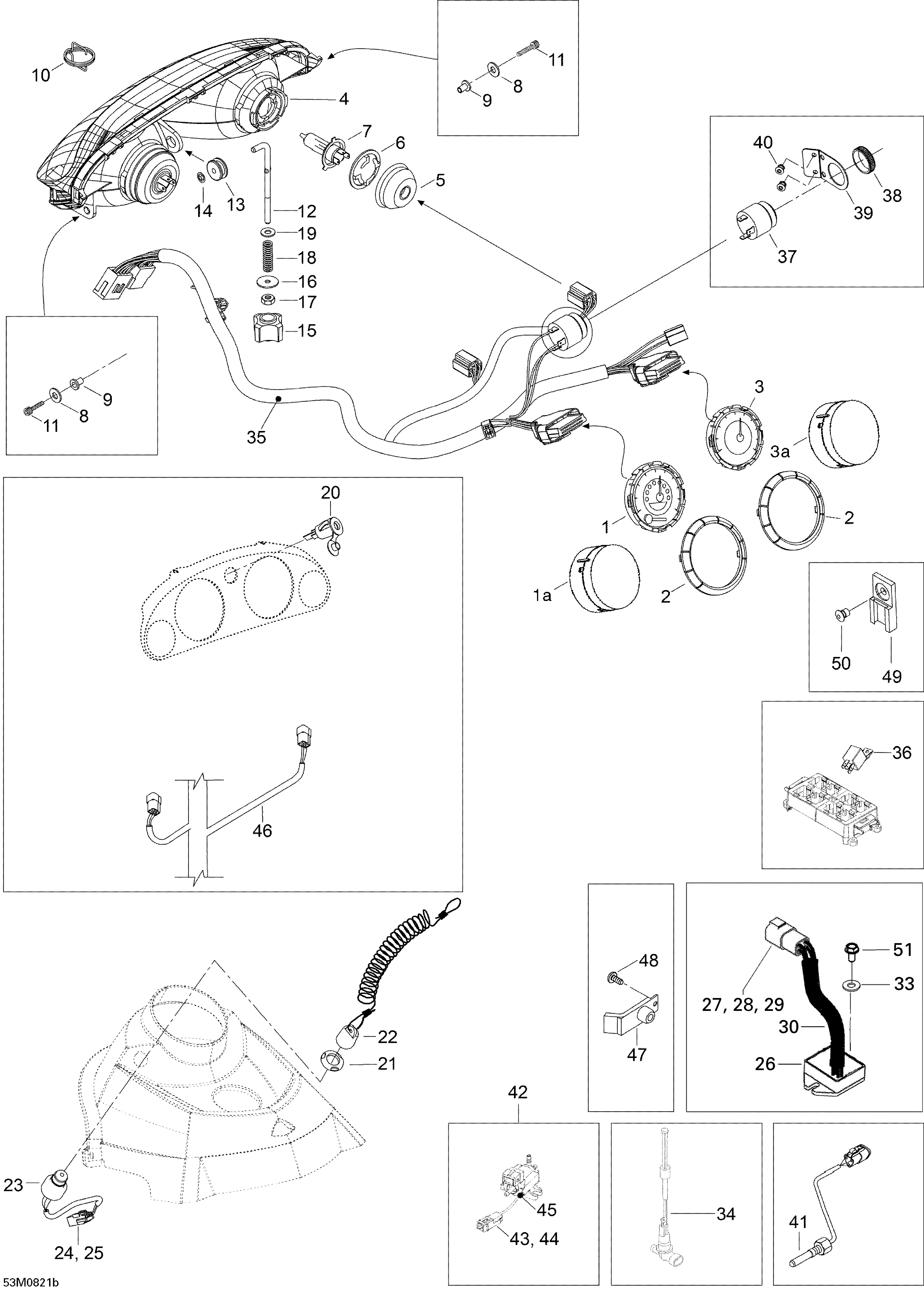

10- Electrical Accessories 600HO SDI для BRP Ski-Doo Skandic SUV 600HO SDI - 2008
-
№АртикулНазвание
-
1515176477 speedometer. Includes 1 to 1aspeedometer. Includes 1 to 1a
-
1a415129319 LensLens
-
2515176242 Gauge RingGauge Ring
-
3515176478 Tachometer. Includes 3 to 3aTachometer. Includes 3 to 3a
-
3a415128937 Remplacement Lens, TachometerRemplacement Lens, Tachometer
-
4515176311 Halogen Headlamp Ass'yHalogen Headlamp Ass'y
-
7515176274 Halogen Bulb, 60/55 W, 12 VHalogen Bulb, 60/55 W, 12 V
-
6515175910 Bulb HolderBulb Holder
-
8M20008 Washer 5 mmWasher 5 mm
-
9250100018 Nut M5Nut M5
-
10M5447238 SpringSpring
-
11M40235 Screw M5X35Screw M5X35
-
12605450023 Adjuster RodAdjuster Rod
-
13415100800 GrommetGrommet
-
14732610072 Push NutPush Nut
-
15515175548 HandleHandle
-
16M20038 WasherWasher
-
17232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
18415100600 SpringSpring
-
19234061410 Flat Washer 6 mmFlat Washer 6 mm
-
20605352915 Power outlet kit (Revo)Power outlet kit (Revo)
-
21278000508 Safety Switch NutSafety Switch Nut
-
22515176461 DESS CapDESS Cap
-
23515175797 Dess Switch. Includes 23 to 25Dess Switch. Includes 23 to 25
-
24515175232 Male TerminalMale Terminal
-
25515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
26515176243 Voltage Regulator. Includes 26 to 30Voltage Regulator. Includes 26 to 30
-
27278001477 Female Housing, 4 CircuitsFemale Housing, 4 Circuits
-
28515175568 Male TerminalMale Terminal
-
29278001478 (Female) Secondary Lock (4 Circuits) (Deutsch)(Female) Secondary Lock (4 Circuits) (Deutsch)
-
30710000497 TubingTubing
-
33M20009 Washer 6.4 Din 9021Washer 6.4 Din 9021
-
34605452095 Oil SensorOil Sensor
-
35605355336 Main HarnessMain Harness
-
36410113604 RelayRelay
-
37515176035 HornHorn
-
38414805101 Plastic NutPlastic Nut
-
39M5447941 HolderHolder
-
40M36005 RivetRivet
-
41515176132 Temperature SensorTemperature Sensor
-
42515176473 Heater Element Ass'y. Includes 42 to 44Heater Element Ass'y. Includes 42 to 44
-
43515175654 Male Terminal Housing, 2 CircuitsMale Terminal Housing, 2 Circuits
-
44515175232 Male TerminalMale Terminal
-
45512059809 Heating Element BracketHeating Element Bracket
-
46605354914 Harness Ass'yHarness Ass'y
-
47420274055 MAPS, Manifold Air Pressure SensorMAPS, Manifold Air Pressure Sensor
-
48M40905 Screw M6 X 16Screw M6 X 16
-
49515175917 ClipClip
-
50M36005 RivetRivet
-
51M40322 ScrewScrew
