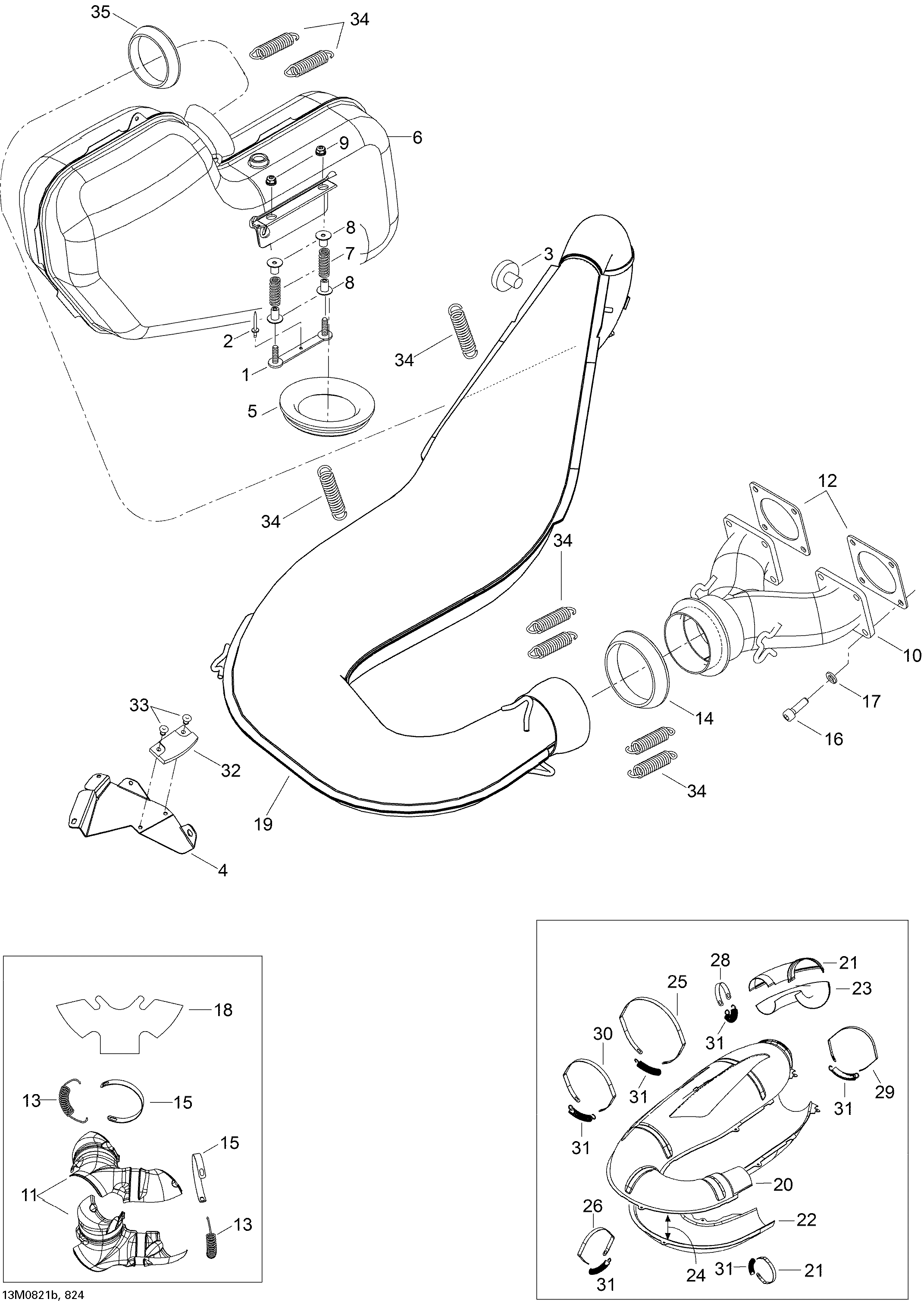

01- Exhaust System 600HO SDI для BRP Ski-Doo Skandic SUV 600HO SDI - 2008
-
№АртикулНазвание
-
1605453843 BracketBracket
-
2M36489 RivetRivet
-
3514053654 Rubber BumperRubber Bumper
-
4605351705 SupportSupport
-
5514054224 Exhaust GrommetExhaust Grommet
-
6605153845 Muffler Ass'yMuffler Ass'y
-
7414913700 SpringSpring
-
8514053343 GuideGuide
-
9M33029 Lock Nut Vm8Lock Nut Vm8
-
10420673072 Exhaust ManifoldExhaust Manifold
-
11514053593 Enveloppe, Exhaust ManifoldEnveloppe, Exhaust Manifold
-
12420850552 GasketGasket
-
13514053643 SpringSpring
-
14514053487 Exhaust GasketExhaust Gasket
-
15514053603 Retaining StrapRetaining Strap
-
16M40052 Socket Head Screw M6 X 20Socket Head Screw M6 X 20
-
17234161471 Lock Washer M6, BlackLock Washer M6, Black
-
18514053588 Insulating WoolInsulating Wool
-
19514054003 Tuned Pipe Ass'yTuned Pipe Ass'y
-
32514053352 BumperBumper
-
33M36037 RivetRivet
-
34415107100 SpringSpring
-
35514053677 Exhaust GasketExhaust Gasket
