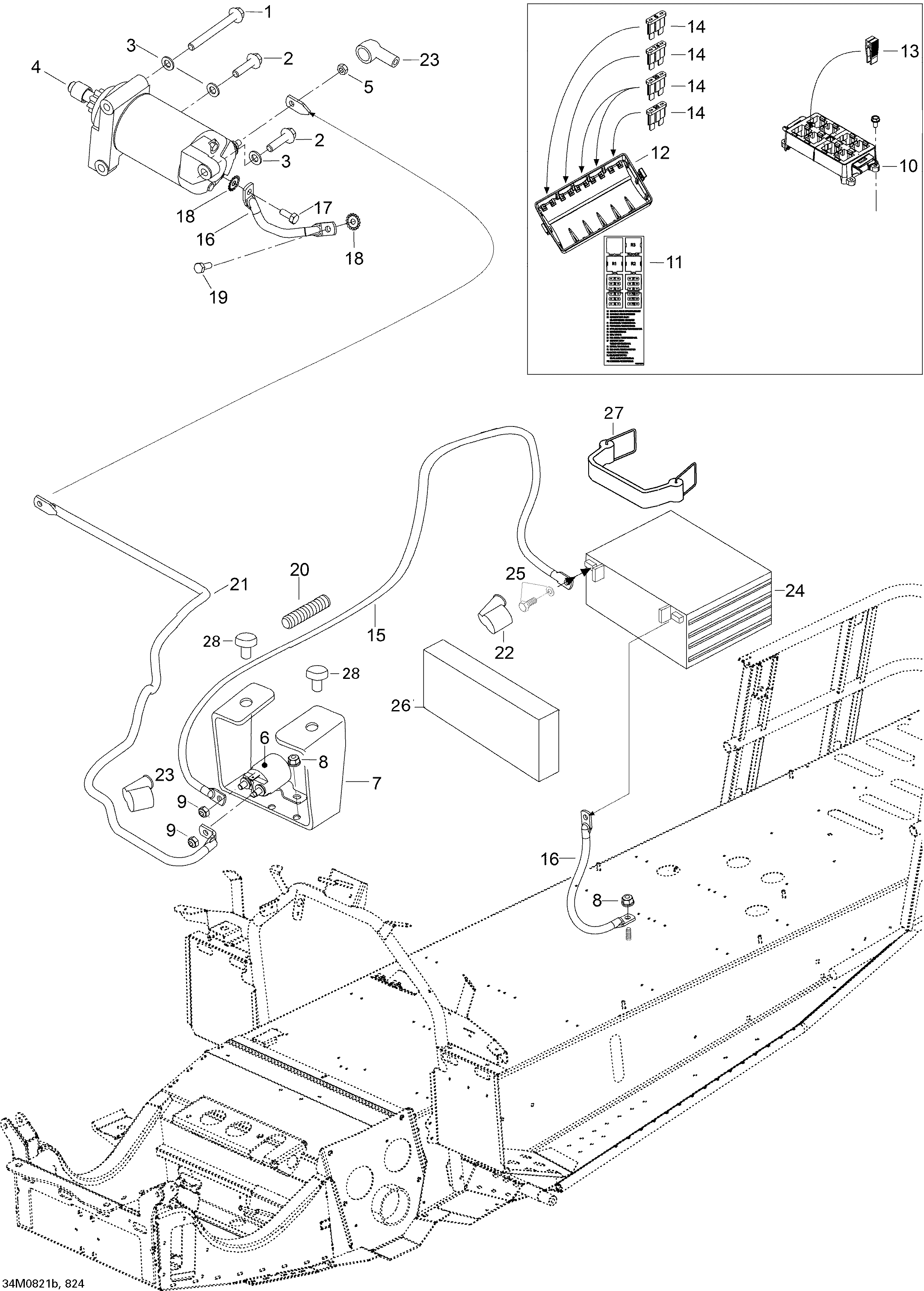

10- Battery And Starter 600HO SDI для BRP Ski-Doo Skandic SUV 600HO SDI - 2008
-
№АртикулНазвание
-
1207587544 Hex. Flanged Screw M8 X 75, Scotch GripHex. Flanged Screw M8 X 75, Scotch Grip
-
2207583044 Hex. Flanged Screw M8 X 30, Scotch GripHex. Flanged Screw M8 X 30, Scotch Grip
-
3250200008 Flat Washer 8 mmFlat Washer 8 mm
-
4515176133 Electric Starter Ass'yElectric Starter Ass'y
-
415129334 Clutch KitClutch Kit
-
415129333 Brush KitBrush Kit
-
415129340 Bolt KitBolt Kit
-
415129342 O-Ring KitO-Ring Kit
-
5232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
6515176011 Starter RelayStarter Relay
-
7605351708 BracketBracket
-
8M33200 Nut M6Nut M6
-
9232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
10515176065 Fuse Box BaseFuse Box Base
-
11605453790 Fuse DecalFuse Decal
-
12515176066 CoverCover
-
13515175811 Fuse ToolFuse Tool
-
14278000344 Fuse, 5 AmperesFuse, 5 Amperes
-
14278000704 Fuse, 7.5 AmperesFuse, 7.5 Amperes
-
14409003900 Fuse, 20 AmperesFuse, 20 Amperes
-
14410917200 Fuse, 30 AmperesFuse, 30 Amperes
-
14M42044 Fuse 1 AFuse 1 A
-
15605151524 Battery WireBattery Wire
-
16515175483 Ground WireGround Wire
-
17207361644 Hex. Screw M6 X 16, Scotch GripHex. Screw M6 X 16, Scotch Grip
-
18M20017 Serrated Lock WasherSerrated Lock Washer
-
19M40327 Allen Screw M6 X 12Allen Screw M6 X 12
-
20M28015 HousingHousing
-
21M5348358 Battery WireBattery Wire
-
22278001771 Protector CapProtector Cap
-
23570151000 Protection CapProtection Cap
-
24410301203 Battery, 18 AmperesBattery, 18 Amperes
-
25295500849 Battery Fastener Kit. Includes 24 to 25Battery Fastener Kit. Includes 24 to 25
-
26605352572 CoverCover
-
27605352573 Steel StripSteel Strip
-
28570044700 Rubber BumperRubber Bumper
