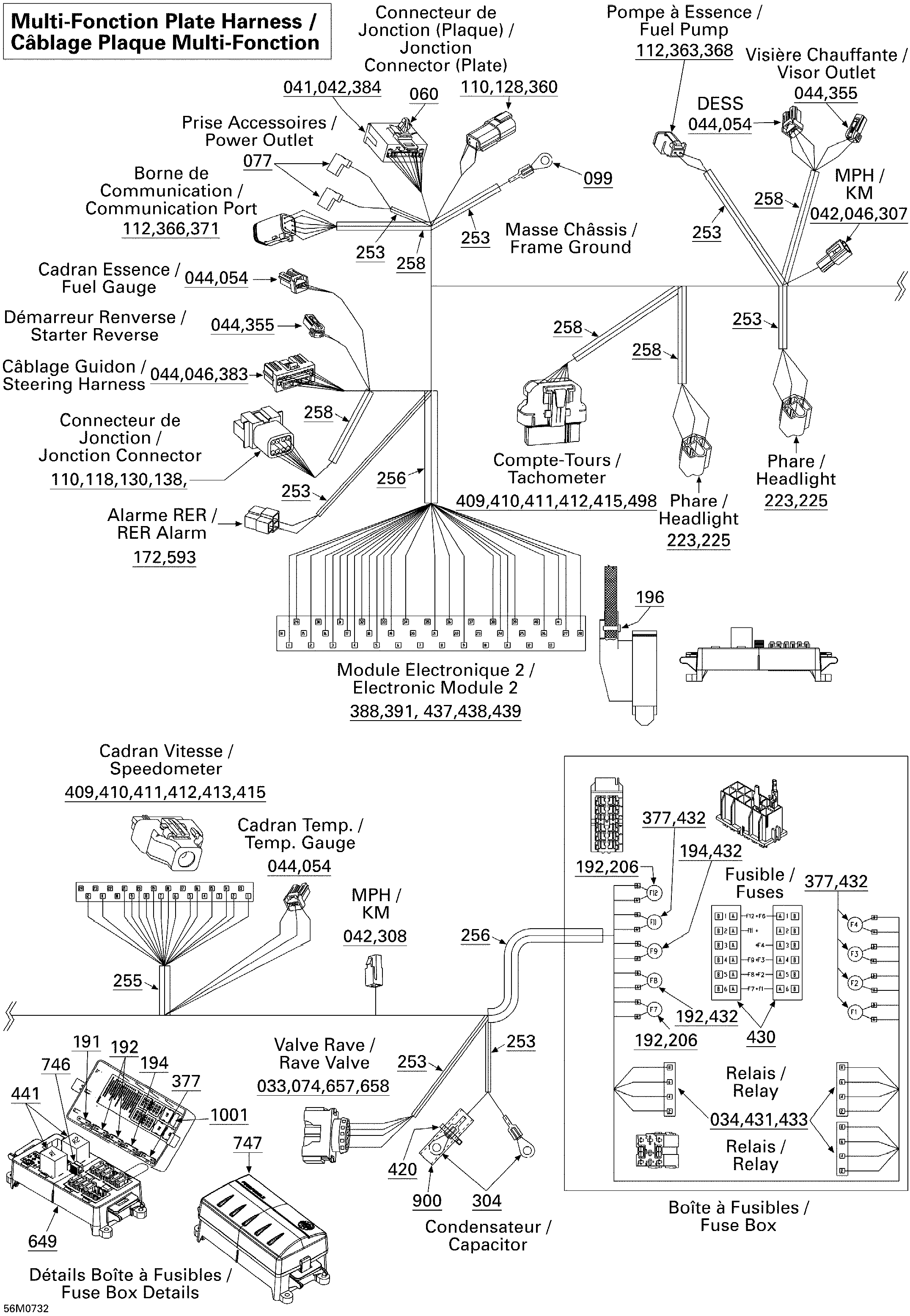

10- Multi Function Plate Harness для BRP Ski-Doo Summit Highmark & Highmark X 1000 SDI - 2007

  • №
    Артикул
    Название
  • 1
    515176475 Multi-Function Plate Harness. Includes 1 to 1001
    Multi-Function Plate Harness. Includes 1 to 1001
  • 33
    278000999 Wire Seal
    Wire Seal
  • 34
    409010100 Female Terminal
    Female Terminal
  • 41
    515175232 Male Terminal
    Male Terminal
  • 42
    515175273 Male Terminal
    Male Terminal
  • 44
    515175231 Female Terminal
    Female Terminal
  • 46
    515175282 Female Terminal
    Female Terminal
  • 54
    515175495 Female Housing, 3 Circuits
    Female Housing, 3 Circuits
  • 60
    515175283 Housing Support
    Housing Support
  • 74
    409013700 Plug
    Plug
  • 77
    409010300 Female Terminal
    Female Terminal
  • 99
    278000992 Open Barrel
    Open Barrel
  • 110
    278000631 Male Terminal
    Male Terminal
  • 112
    278000632 Female Terminal
    Female Terminal
  • 118
    278001742 Male Terminal Housing, 8 Circuits
    Male Terminal Housing, 8 Circuits
  • 128
    278000636 (Female) Secondary Lock (4 Circuits) (Deutsch)
    (Female) Secondary Lock (4 Circuits) (Deutsch)
  • 130
    515175276 Lock Male, 8 Circuits
    Lock Male, 8 Circuits
  • 138
    293000052 Sealing Cap
    Sealing Cap
  • 172
    561503100 Female Terminal
    Female Terminal
  • 191
    410917200 Fuse, 30 Amperes
    Fuse, 30 Amperes
  • 192
    409003900 Fuse, 20 Amperes
    Fuse, 20 Amperes
  • 194
    278001197 Fuse 10 Amperes
    Fuse 10 Amperes
  • 196
    293750002 Tie-Rap 130 mm
    Tie-Rap 130 mm
  • 206
    409004200 Female Terminal
    Female Terminal
  • 223
    515175320 Female Terminal
    Female Terminal
  • 225
    409202700 Female Terminal Housing, 3 Circuits
    Female Terminal Housing, 3 Circuits
  • 253
    515175442 Tubing 6 mm
    Tubing 6 mm
  • 255
    409901800 Tubing 13 mm
    Tubing 13 mm
  • 256
    415080000 Tubing 16 mm
    Tubing 16 mm
  • 258
    415079900 Tubing 10 mm
    Tubing 10 mm
  • 304
    515175504 Ring Terminal
    Ring Terminal
  • 307
    515175509 Male Terminal Housing, 1 Circuit
    Male Terminal Housing, 1 Circuit
  • 308
    515175510 Female Terminal Housing, 1 Circuit
    Female Terminal Housing, 1 Circuit
  • 355
    515175658 Female Housing, 2 Circuits
    Female Housing, 2 Circuits
  • 363
    515175670 Female Terminal Housing, 2 Circuits
    Female Terminal Housing, 2 Circuits
  • 366
    515175673 Male Housing, 6 Circuits
    Male Housing, 6 Circuits
  • 368
    515175675 Female Lock, 2 Circuits
    Female Lock, 2 Circuits
  • 371
    515175678 Male Wedge, 6 Circuits
    Male Wedge, 6 Circuits
  • 377
    278000344 Fuse, 5 Amperes
    Fuse, 5 Amperes
  • 383
    515175719 Female Terminal Housing, 11 Circuits
    Female Terminal Housing, 11 Circuits
  • 384
    515175720 Male Terminal Housing, 11 Circuits
    Male Terminal Housing, 11 Circuits
  • 388
    278001750 Female Terminal
    Female Terminal
  • 391
    278001751 Male Housing, 41 Circuits
    Male Housing, 41 Circuits
  • 409
    515175812 Plug
    Plug
  • 410
    515175801 Female Housing, 24 Circuits
    Female Housing, 24 Circuits
  • 411
    515175802 Retainer Block
    Retainer Block
  • 412
    515175803 Wire Seal
    Wire Seal
  • 413
    515175804 Block
    Block
  • 415
    515175806 Female Terminal
    Female Terminal
  • 420
    414115200 Tie-Rap 180 mm
    Tie-Rap 180 mm
  • 430
    515175857 Fuse Holder
    Fuse Holder
  • 431
    515175856 Relay Holder
    Relay Holder
  • 432
    515175855 Female Terminal
    Female Terminal
  • 433
    515175854 Female Terminal
    Female Terminal
  • 437
    515175886 Seal
    Seal
  • 438
    515175883 Latch
    Latch
  • 439
    515175884 Lock
    Lock
  • 441
    410113604 Relay
    Relay
  • 498
    710000399 Female Housing
    Female Housing
  • 593
    515176069 Male Terminal Housing, 3 Circuits
    Male Terminal Housing, 3 Circuits
  • 649
    515176065 Fuse Box Base
    Fuse Box Base
  • 657
    515176238 Male Housing, 5 Circuits
    Male Housing, 5 Circuits
  • 658
    515176239 Female Terminal
    Female Terminal
  • 746
    515175811 Fuse Tool
    Fuse Tool
  • 747
    515176066 Cover
    Cover
  • 900
    415079200 Hose
    Hose
  • 1001
    516002975 Fuse Decal
    Fuse Decal
