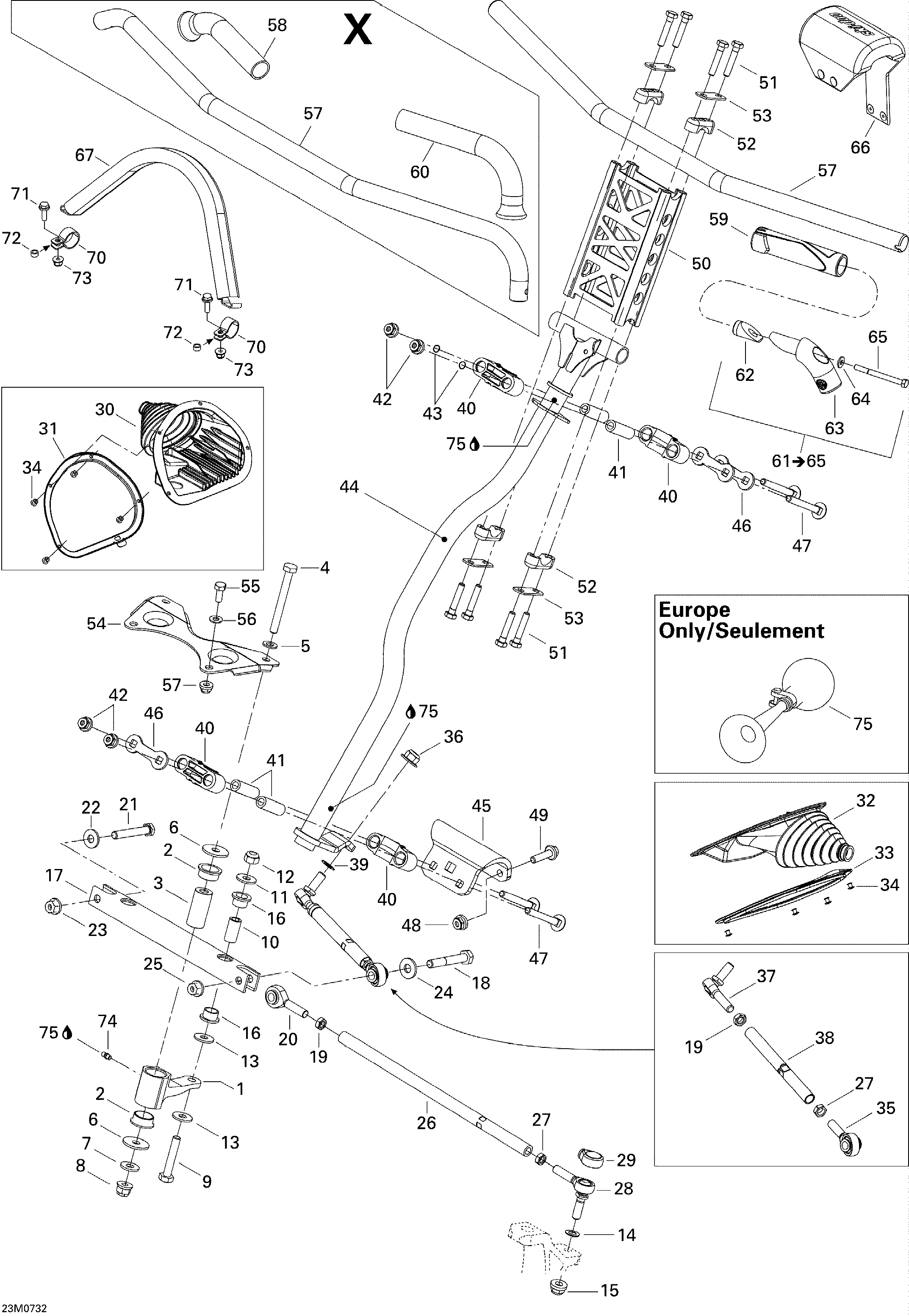

07- Steering System для BRP Ski-Doo Summit Highmark & Highmark X 1000 SDI - 2007
-
№АртикулНазвание
-
1506152124 RH Swivel ArmRH Swivel Arm
-
1506152123 LH Swivel ArmLH Swivel Arm
-
2415041100 CushionCushion
-
3506151272 Swivel PivotSwivel Pivot
-
4207009086 Hex Screw M10 X 90Hex Screw M10 X 90
-
5503183800 WasherWasher
-
6506150000 Washer 10 mmWasher 10 mm
-
7506151251 WasherWasher
-
8732610084 Flanged Nut M10Flanged Nut M10
-
9207005544 Hex Screw M10 X 55Hex Screw M10 X 55
-
10506151273 Pivot BarPivot Bar
-
11224002251 Flat WasherFlat Washer
-
12233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
13250200032 WasherWasher
-
14503175800 WasherWasher
-
15250100088 Hex. Elastic Hex Nut M10Hex. Elastic Hex Nut M10
-
16506150200 Bushing SwivelBushing Swivel
-
17506151328 Swivel BarSwivel Bar
-
18207006544 Hex Screw M10 X 65Hex Screw M10 X 65
-
19250100016 LH Hex Jam Nut M10LH Hex Jam Nut M10
-
20506151810 LH Ball JointLH Ball Joint
-
21207004544 Hex Screw M10 X 45Hex Screw M10 X 45
-
22224002251 Flat WasherFlat Washer
-
23233201414 Hex Flanged Elastic Nut M10Hex Flanged Elastic Nut M10
-
24224002251 Flat WasherFlat Washer
-
25233201414 Hex Flanged Elastic Nut M10Hex Flanged Elastic Nut M10
-
26506151375 Tie-RodTie-Rod
-
27732610010 RH Hex Jam Nut M10RH Hex Jam Nut M10
-
28506152017 RH Thread Ball JointRH Thread Ball Joint
-
29506151650 Protection CapProtection Cap
-
30506151725 RH Tie-Rod CapRH Tie-Rod Cap
-
31506151356 RH Retainer RingRH Retainer Ring
-
32506151726 LH Tie-Rod CapLH Tie-Rod Cap
-
33506151357 LH Retainer RingLH Retainer Ring
-
34390909100 Avex RivetAvex Rivet
-
35506151828 RH Ball Joint 40°RH Ball Joint 40°
-
36250100088 Hex. Elastic Hex Nut M10Hex. Elastic Hex Nut M10
-
37506151845 LH Joint BallLH Joint Ball
-
38506152006 Tie RodTie Rod
-
39503175800 WasherWasher
-
40506150400 Housing HalfHousing Half
-
41506150500 Housing BushingHousing Bushing
-
42233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
43506151140 O-RingO-Ring
-
44506152157 Main TubeMain Tube
-
45506151819 Main Tube SupportMain Tube Support
-
46506150600 Stopper PlateStopper Plate
-
47207787044 Carriage Bolt M8 X 70Carriage Bolt M8 X 70
-
48233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
49207683044 Hex Flanged Screw M8 X 30Hex Flanged Screw M8 X 30
-
50506152107 ExtensionExtension
-
51506151622 Steering SupportSteering Support
-
52506151196 ReinforcementReinforcement
-
53506151536 Pivot SupportPivot Support
-
54207182544 Hex Screw M8 X 25Hex Screw M8 X 25
-
55234081410 Flat Washer 8 mmFlat Washer 8 mm
-
56233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
57506151782 Handlebar. HMHandlebar. HM
-
57506151820 Handlebar. HMXHandlebar. HMX
-
58506151530 RH Grip 6-1/2''. HMXRH Grip 6-1/2''. HMX
-
59506152122 Handle Grip. HMHandle Grip. HM
-
60506151541 LH Grip 8-3/4''. HMXLH Grip 8-3/4''. HMX
-
61506151936 J-hook Ass'y. HM, Includes 61 to 65J-hook Ass'y. HM, Includes 61 to 65
-
62506151839 Wedge Lock. HMWedge Lock. HM
-
63506151837 Short J-hook. HMShort J-hook. HM
-
64250200039 Flat Washer. HMFlat Washer. HM
-
65207067084 Hex Screw M6 X 70. HMHex Screw M6 X 70. HM
-
66506152166 Steering Pad. HMXSteering Pad. HMX
-
66506152167 Steering Pad. HMSteering Pad. HM
-
67506152115 Strap Ass'yStrap Ass'y
-
70506151792 Support Plate, BlackSupport Plate, Black
-
71207662084 Hex Flanged Screw M6 X 20Hex Flanged Screw M6 X 20
-
72506152156 BushingBushing
-
73233261494 Hex Elastic Flanged Nut M6Hex Elastic Flanged Nut M6
-
74408200700 Grease FittingGrease Fitting
-
75219700417 Synthetic Grease, 400 GSynthetic Grease, 400 G
