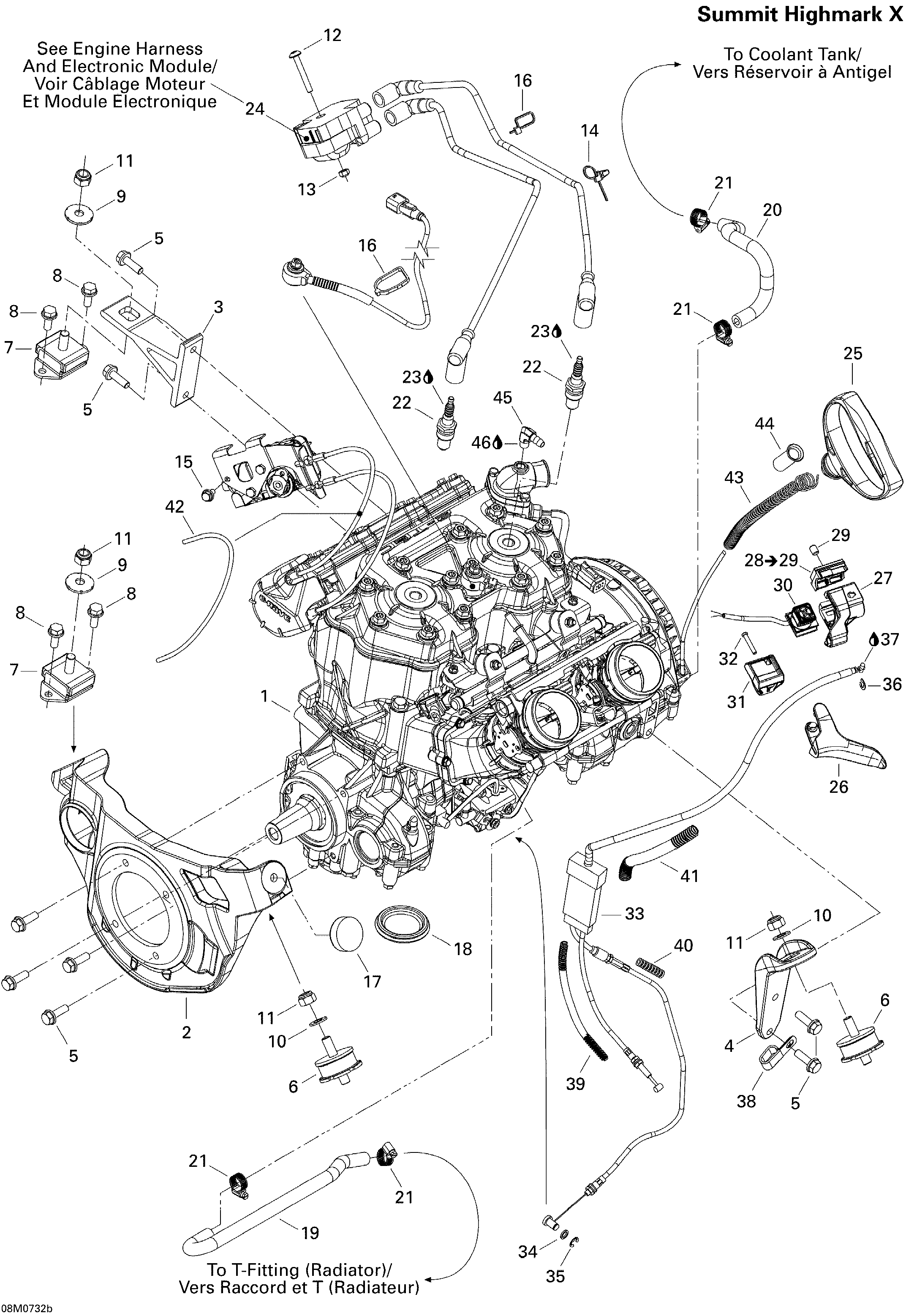

01- Engine Highmark X для BRP Ski-Doo Summit Highmark & Highmark X 1000 SDI - 2007

  • №
    Артикул
    Название
  • 1
    400101121 Engine 995 SDI . Europe
    Engine 995 SDI . Europe
  • 1
    400101122 Engine 995 SDI. Canada and United States
    Engine 995 SDI. Canada and United States
  • 2
    512059792 Engine Support, PTO
    Engine Support, PTO
  • 3
    512059894 Front Engine Support, MAG
    Front Engine Support, MAG
  • 4
    512059794 Rear Engine Support, MAG
    Rear Engine Support, MAG
  • 5
    207582544 Hex Flanged Screw M8 X 25, Scotch Grip
    Hex Flanged Screw M8 X 25, Scotch Grip
  • 6
    512059960 Rubber Mount
    Rubber Mount
  • 7
    512059936 Rubber Mount
    Rubber Mount
  • 8
    207582044 Hex Flanged Screw M8 X 20, Scotch Grip
    Hex Flanged Screw M8 X 20, Scotch Grip
  • 9
    512056700 Lock Washer
    Lock Washer
  • 10
    234001410 Flat Washer 10 mm
    Flat Washer 10 mm
  • 11
    232500416 Elastic Stop Nut M10
    Elastic Stop Nut M10
  • 12
    250000215 Torx Screw M6 X 45
    Torx Screw M6 X 45
  • 13
    232561414 Elastic Stop Nut M6
    Elastic Stop Nut M6
  • 14
    515175220 Tie Rap
    Tie Rap
  • 15
    207661244 Hex Flanged Screw M6 X 12
    Hex Flanged Screw M6 X 12
  • 16
    414115200 Tie-Rap 180 mm
    Tie-Rap 180 mm
  • 17
    512060000 Stopper
    Stopper
  • 18
    570045101 Bottom Pan Cap
    Bottom Pan Cap
  • 19
    512060012 Formed Hose, Inlet Throttle Body
    Formed Hose, Inlet Throttle Body
  • 20
    512059935 Formed Hose, Outlet Throttle Body
    Formed Hose, Outlet Throttle Body
  • 21
    293650170 Hose Clamp
    Hose Clamp
  • 22
    512060029 Spark Plug BR8ECS
    Spark Plug BR8ECS
  • 23
    293550004 Dielectric Grease, 150 g
    Dielectric Grease, 150 g
  • 24
    278001546 Ignition Coil
    Ignition Coil
  • 25
    572084400 Starter Grip
    Starter Grip
  • 26
    512060219 Throttle Handle Ass'y
    Throttle Handle Ass'y
  • 27
    512060197 Lower Housing
    Lower Housing
  • 28
    512060198 Upper Housing. Includes 28 to 29
    Upper Housing. Includes 28 to 29
  • 29
    414440800 Set Screw M8 X 10
    Set Screw M8 X 10
  • 30
    515176091 Kill Switch
    Kill Switch
  • 31
    515176418 Kill Switch Support
    Kill Switch Support
  • 32
    250000263 Torx Screw #8-18
    Torx Screw #8-18
  • 33
    512060165 Throttle Cable
    Throttle Cable
  • 34
    234081100 Flat Washer 8 mm
    Flat Washer 8 mm
  • 35
    414753500 Circlip
    Circlip
  • 36
    414274500 Circlip
    Circlip
  • 37
    293550004 Dielectric Grease, 150 g
    Dielectric Grease, 150 g
  • 38
    515175980 Open Clamp
    Open Clamp
  • 39
    515175442 Tubing 6 mm
    Tubing 6 mm
  • 40
    515175442 Tubing 6 mm
    Tubing 6 mm
  • 41
    409901700 Tubing 9 mm
    Tubing 9 mm
  • 42
    515175442 Tubing 6 mm
    Tubing 6 mm
  • 43
    512059964 Rope Guide
    Rope Guide
  • 44
    512059536 Tube
    Tube
  • 45
    293700045 Elbow Fitting 90°
    Elbow Fitting 90°
  • 46
    293800018 Loctite 592, Pipe Sealant, 50 ml
    Loctite 592, Pipe Sealant, 50 ml
