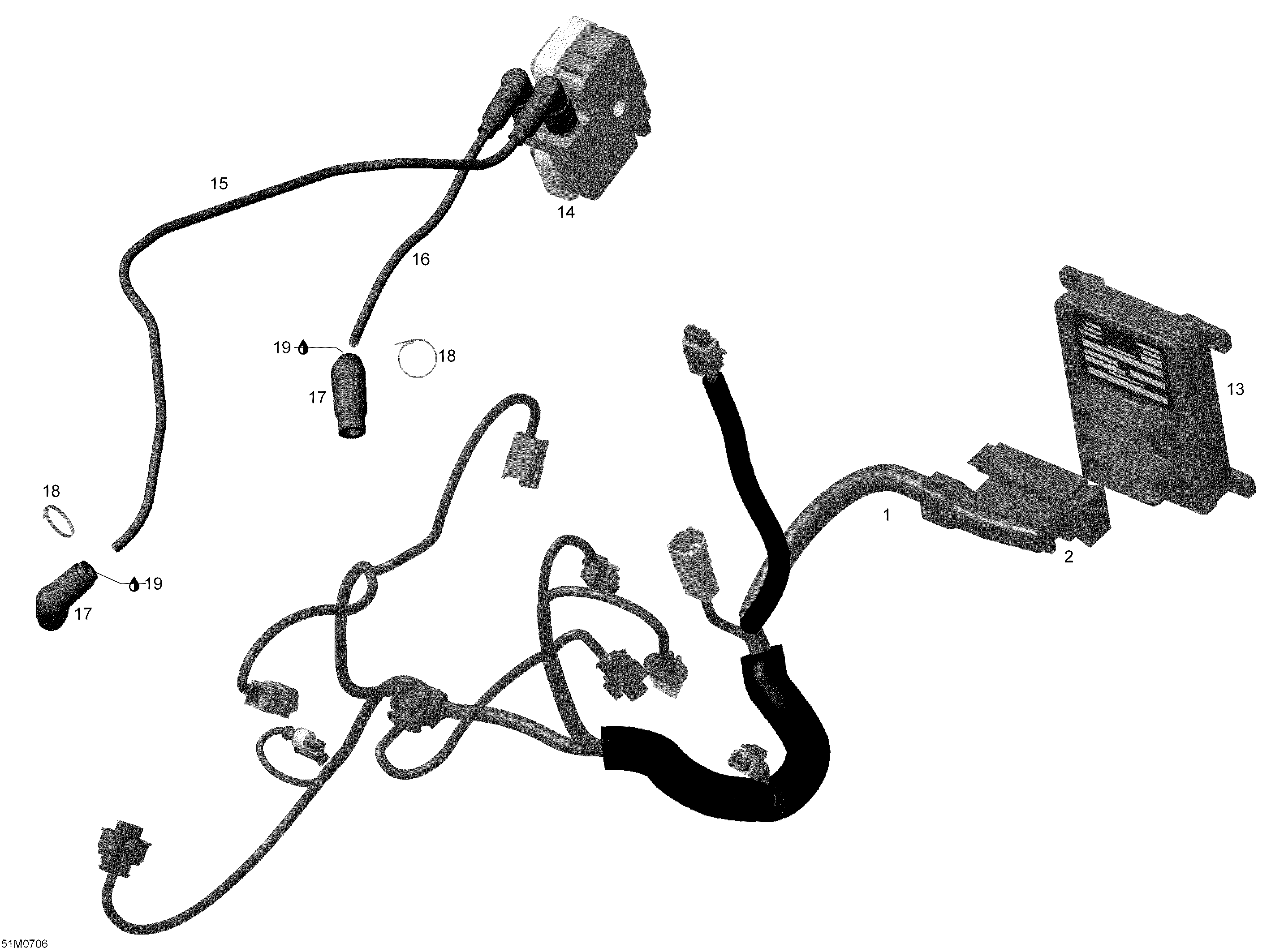

10- Engine Harness And Electronic Module для BRP Ski-Doo Expedition TUV V800 - 2007
-
№АртикулНазвание
-
1420665243 Wiring HarnessWiring Harness
-
2420664450 ECM ConnectorECM Connector
-
13420665279 Electronic BoxElectronic Box
-
14420266070 Ignition CoilIgnition Coil
-
15420665330 spark plug cable, rear, 610 mm PTO Sidespark plug cable, rear, 610 mm PTO Side
-
16420664305 Cable Ass'Y 245 mm PTOCable Ass'Y 245 mm PTO
-
17420265240 Spark Plug ConnectorSpark Plug Connector
-
18420866710 ClampClamp
-
19293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
