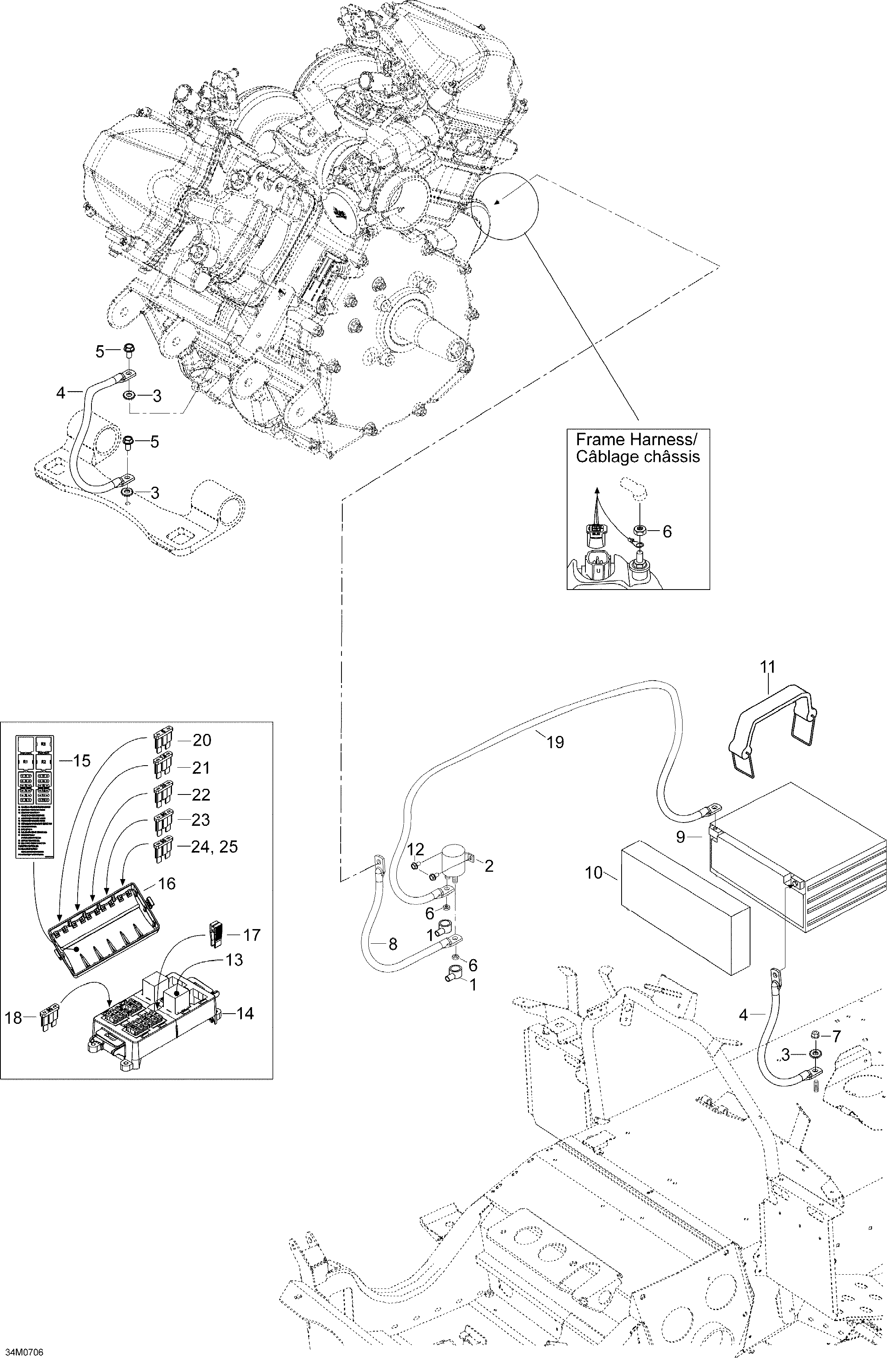

10- Battery And Starter для BRP Ski-Doo Expedition TUV V800 - 2007
-
№АртикулНазвание
-
1570151000 Protection CapProtection Cap
-
2515176011 Starter RelayStarter Relay
-
3M20017 Serrated Lock WasherSerrated Lock Washer
-
5M40401 Screw-hex.cap M6x10Screw-hex.cap M6x10
-
6232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
7M33200 Nut M6Nut M6
-
8515175793 Battery WireBattery Wire
-
9410922962 Battery, 12 Volts, 21 AmperesBattery, 12 Volts, 21 Amperes
-
10605352572 CoverCover
-
11605352573 Steel StripSteel Strip
-
12207162044 Hex Cap Screw M6 X 20Hex Cap Screw M6 X 20
-
13410113604 RelayRelay
-
14515176065 Fuse Box BaseFuse Box Base
-
15605454618 Fuse DecalFuse Decal
-
16515176066 CoverCover
-
17515175811 Fuse ToolFuse Tool
-
18M42044 Fuse 1 AFuse 1 A
-
18278000344 Fuse, 5 AmperesFuse, 5 Amperes
-
18278000704 Fuse, 7.5 AmperesFuse, 7.5 Amperes
-
18409003900 Fuse, 20 AmperesFuse, 20 Amperes
-
18410917200 Fuse, 30 AmperesFuse, 30 Amperes
-
19605151524 Battery WireBattery Wire
-
20710000745 Little Fuse, 15 AmperesLittle Fuse, 15 Amperes
-
21278000344 Fuse, 5 AmperesFuse, 5 Amperes
-
22278000704 Fuse, 7.5 AmperesFuse, 7.5 Amperes
-
23409003900 Fuse, 20 AmperesFuse, 20 Amperes
-
24410917200 Fuse, 30 AmperesFuse, 30 Amperes
-
25710000745 Little Fuse, 15 AmperesLittle Fuse, 15 Amperes
