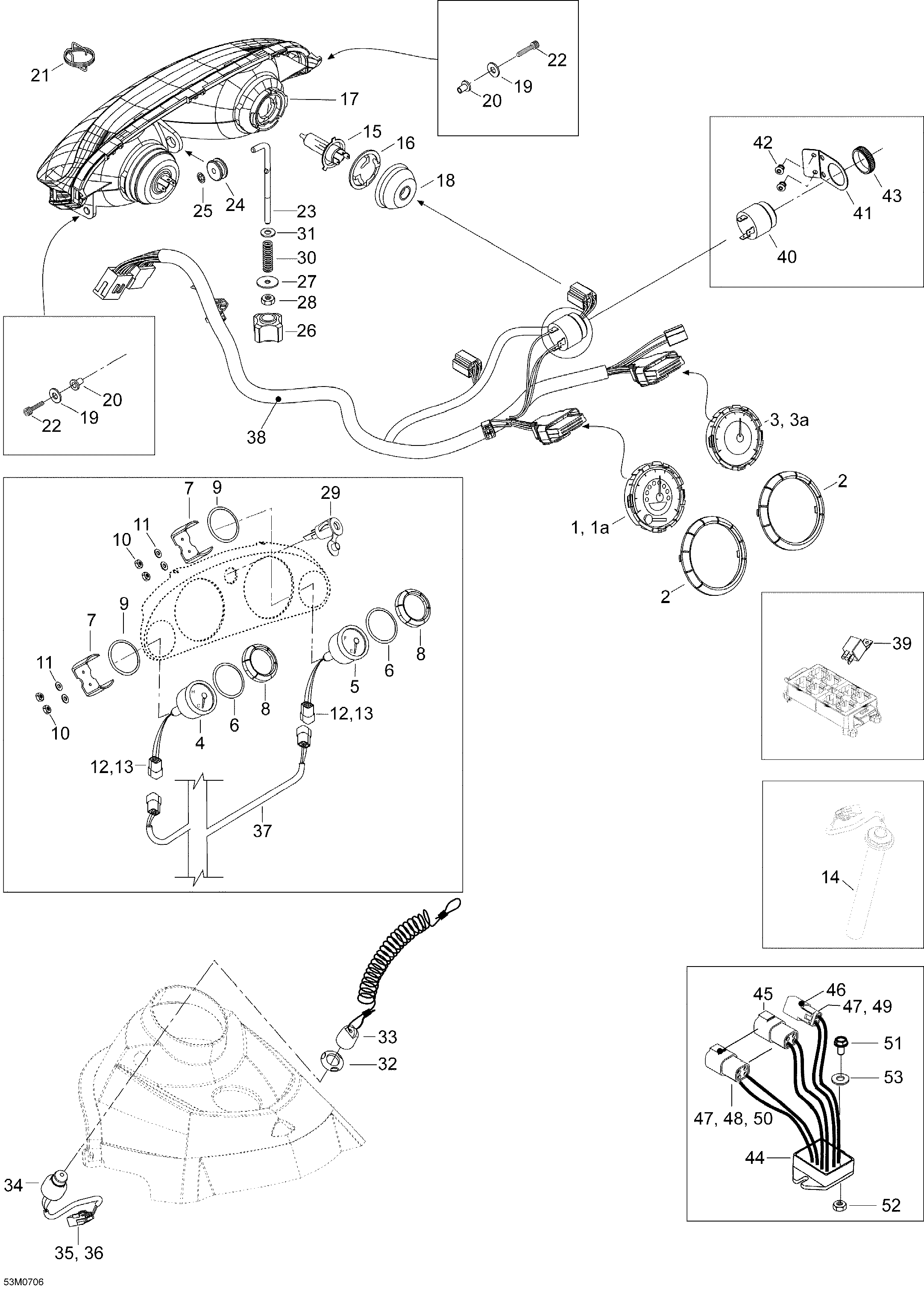

10- Electrical Accessories для BRP Ski-Doo Expedition TUV V800 - 2007
-
№АртикулНазвание
-
1515176477 speedometerspeedometer
-
1a415128938 Remplacement Lens, SpeedometerRemplacement Lens, Speedometer
-
2515176242 Gauge RingGauge Ring
-
3515176478 TachometerTachometer
-
3a415128937 Remplacement Lens, TachometerRemplacement Lens, Tachometer
-
4515175601 Temperature GaugeTemperature Gauge
-
5515175529 Fuel GaugeFuel Gauge
-
6414807200 O-RingO-Ring
-
7415099800 Case HolderCase Holder
-
8515175711 Ring GaugeRing Gauge
-
9517258600 WasherWasher
-
10232541414 Elastic Stop Nut M4Elastic Stop Nut M4
-
11M20037 WasherWasher
-
12M42269 Male Connector HousingMale Connector Housing
-
13605642628 ConnectorConnector
-
14605354768 Fuel SensorFuel Sensor
-
15515176274 Halogen Bulb, 60/55 W, 12 VHalogen Bulb, 60/55 W, 12 V
-
16515175910 Bulb HolderBulb Holder
-
17515176311 Halogen Headlamp Ass'yHalogen Headlamp Ass'y
-
18410607100 Protector CapProtector Cap
-
19M20008 Washer 5 mmWasher 5 mm
-
20250100018 Nut M5Nut M5
-
21M5447238 SpringSpring
-
22M40235 Screw M5X35Screw M5X35
-
23605450023 Adjuster RodAdjuster Rod
-
24415100800 GrommetGrommet
-
25732610072 Push NutPush Nut
-
26515175548 HandleHandle
-
27M20038 WasherWasher
-
28232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
29M42026 Current OutletCurrent Outlet
-
30415100600 SpringSpring
-
31234061410 Flat Washer 6 mmFlat Washer 6 mm
-
32278000508 Safety Switch NutSafety Switch Nut
-
33515176461 DESS CapDESS Cap
-
34515175797 Dess SwitchDess Switch
-
35515175232 Male TerminalMale Terminal
-
36515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
37605153859 Harness Ass'yHarness Ass'y
-
38605153275 Harness Ass'yHarness Ass'y
-
39410113604 RelayRelay
-
40515176035 HornHorn
-
41M5447941 HolderHolder
-
42M36005 RivetRivet
-
43414805101 Plastic NutPlastic Nut
-
44515176243 Voltage RegulatorVoltage Regulator
-
45278001477 Female Housing, 4 CircuitsFemale Housing, 4 Circuits
-
46278001674 Male Terminal Housing, 2 CircuitsMale Terminal Housing, 2 Circuits
-
47515175568 Male TerminalMale Terminal
-
48278001478 (Female) Secondary Lock (4 Circuits) (Deutsch)(Female) Secondary Lock (4 Circuits) (Deutsch)
-
49278001672 Male Lock, 2 CircuitsMale Lock, 2 Circuits
-
50293000052 Sealing CapSealing Cap
-
51207162044 Hex Cap Screw M6 X 20Hex Cap Screw M6 X 20
-
52232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
53M20009 Washer 6.4 Din 9021Washer 6.4 Din 9021
