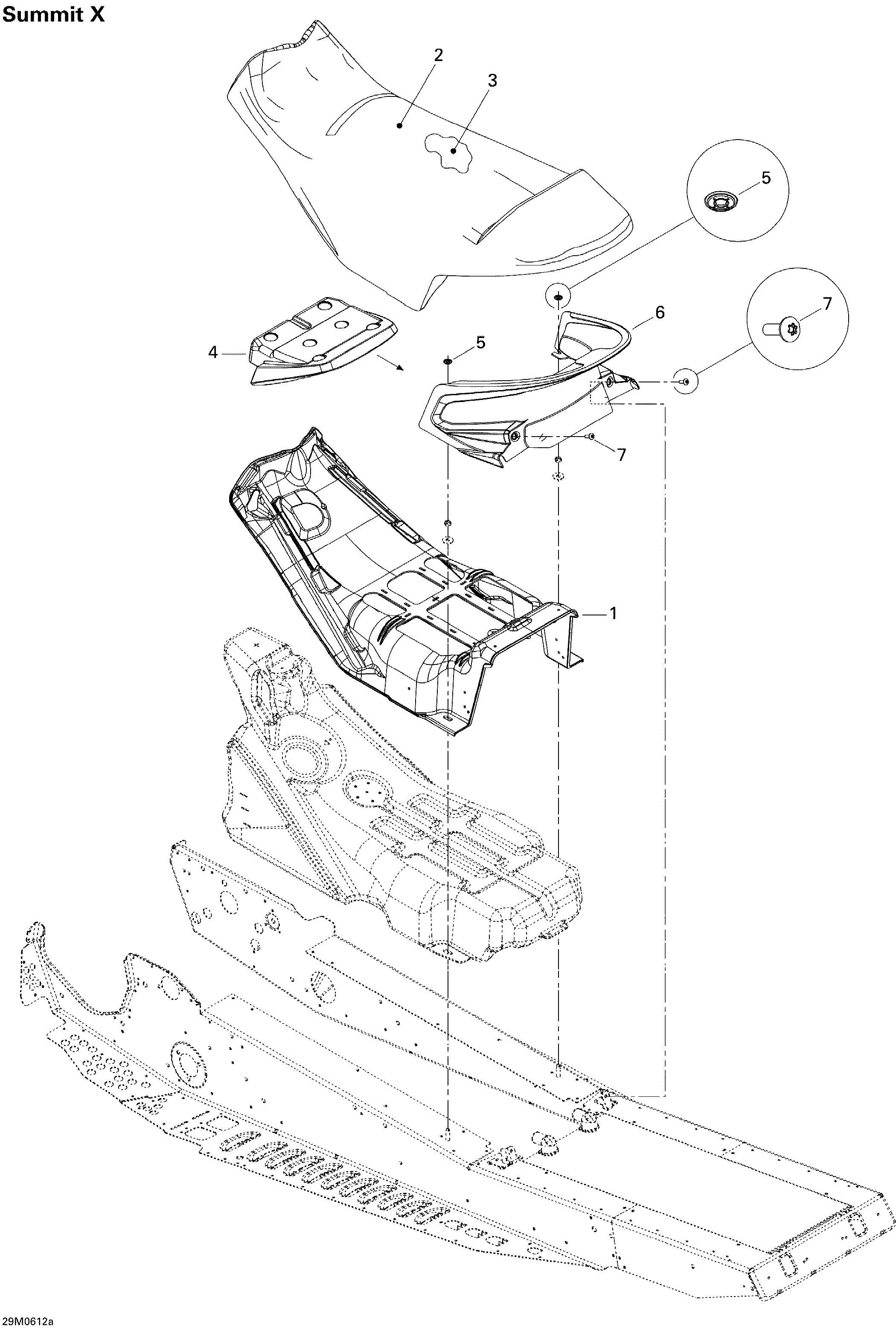

09- Seat X для BRP Ski-Doo Summit 800 HO, Adrenaline & X - 2006
-
№АртикулНазвание
-
1510004658 Seat BaseSeat Base
-
2510004659 Seat Cover. Black/Black ModelSeat Cover. Black/Black Model
-
2510004661 Seat Cover. Grey/Red ModelSeat Cover. Grey/Red Model
-
3510004660 Seat FoamSeat Foam
-
4510004714 Support BlocSupport Bloc
-
5510004715 Push NutPush Nut
-
6510004656 Seat Cap. Grey/Red ModelSeat Cap. Grey/Red Model
-
6510004657 Seat Cap. Black/Black ModelSeat Cap. Black/Black Model
-
7250000128 Torx Screw M6 X 20Torx Screw M6 X 20
