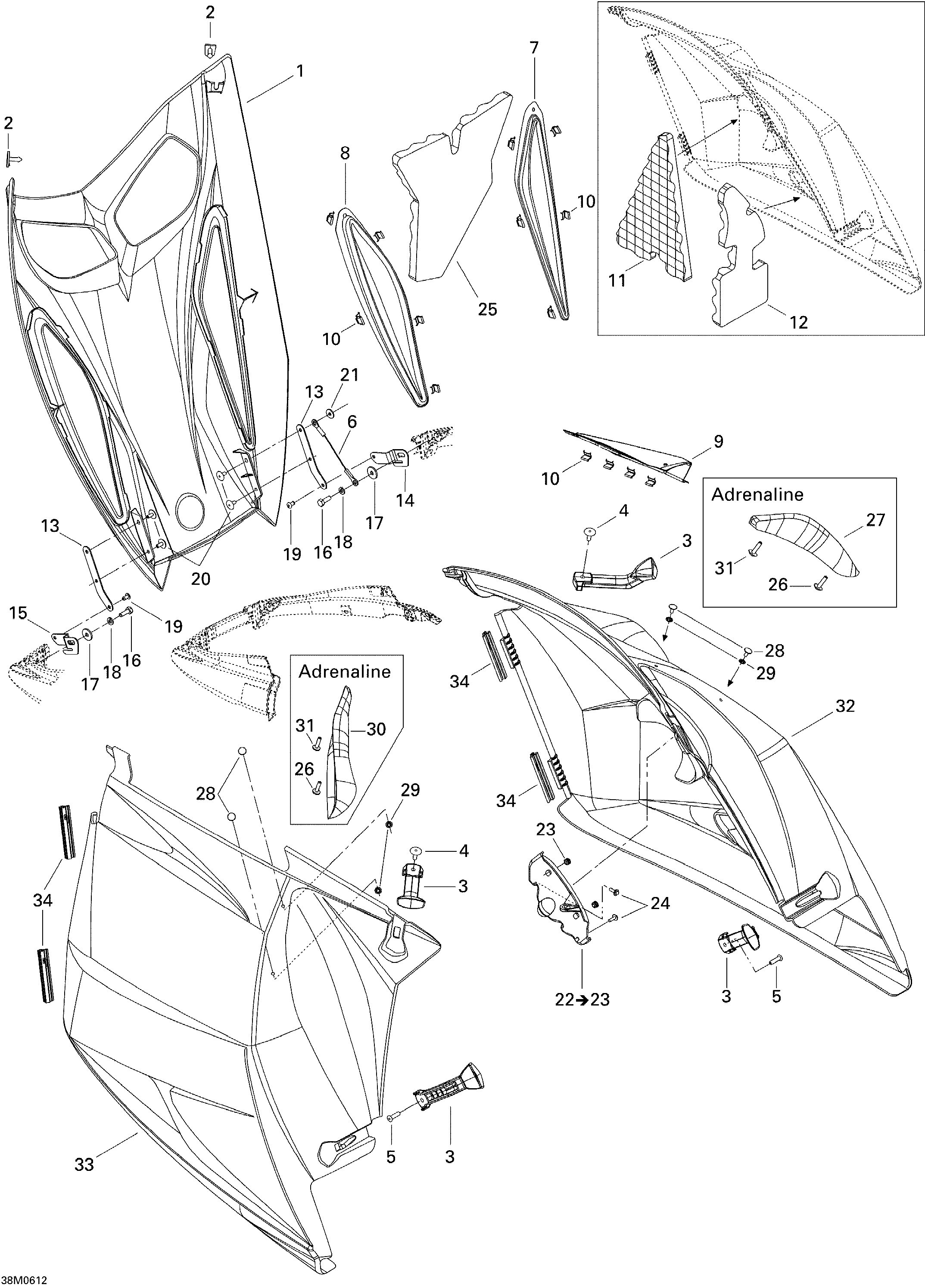

09- Hood 800HO для BRP Ski-Doo Summit 800 HO, Adrenaline & X - 2006
-
№АртикулНазвание
-
1517302788 Hood, Black, B-160. XHood, Black, B-160. X
-
1517303053 Hood, Voltage Blue Metallic, B-225. AdrenalineHood, Voltage Blue Metallic, B-225. Adrenaline
-
1517303574 Hood, Alloy Grey, B-206. XHood, Alloy Grey, B-206. X
-
1517303575 Hood, Viper Red, B-206. AdrenalineHood, Viper Red, B-206. Adrenaline
-
2517302543 PinPin
-
3517302448 Panel LatchPanel Latch
-
4293150087 Pop Rivet 3/16''Pop Rivet 3/16''
-
5390410100 Pop Rivet 3/16''Pop Rivet 3/16''
-
6517302673 Retainer CableRetainer Cable
-
7517302936 RH Hood GrillRH Hood Grill
-
8517302937 LH Hood GrillLH Hood Grill
-
9517302938 RH Panel GrillRH Panel Grill
-
10517302789 ClipClip
-
11517303082 RH Panel Front FoamRH Panel Front Foam
-
12517303492 RH Panel Rear FoamRH Panel Rear Foam
-
13517302544 Upper Half-HingeUpper Half-Hinge
-
14517302444 RH Lower Half-HingeRH Lower Half-Hinge
-
15517302445 LH Lower Half-HingeLH Lower Half-Hinge
-
16207161844 Hex Screw M6 X 18Hex Screw M6 X 18
-
17224061121 Flat WasherFlat Washer
-
18234161471 Lock Washer 6 mmLock Washer 6 mm
-
19390909200 Avex RivetAvex Rivet
-
20390406500 Pop Rivet 3/16''Pop Rivet 3/16''
-
21517225900 Flat WasherFlat Washer
-
22517303482 RH Console. Includes 22 to 23RH Console. Includes 22 to 23
-
23275500241 PlugPlug
-
24241151640 Hex Flanged Screw K50 X 16Hex Flanged Screw K50 X 16
-
25517303081 Hood FoamHood Foam
-
26250000084 Phillips Screw K40 X 16. AdrenalinePhillips Screw K40 X 16. Adrenaline
-
27517302800 RH Air Deflector. AdrenalineRH Air Deflector. Adrenaline
-
28517303070 Windshield Dart. XWindshield Dart. X
-
29250100034 Push Nut. XPush Nut. X
-
30517302801 LH Air Deflector. AdrenalineLH Air Deflector. Adrenaline
-
31250000101 Screw M4 X 25. AdrenalineScrew M4 X 25. Adrenaline
-
32517303179 RH Panel, Black, B-160. X & AdrenalineRH Panel, Black, B-160. X & Adrenaline
-
32517303260 RH Panel, Viper Red, B-176. XRH Panel, Viper Red, B-176. X
-
33517302803 LH Panel, Black, B-160. X & AdrenalineLH Panel, Black, B-160. X & Adrenaline
-
33517303261 RH Panel, Viper Red, B-176. XRH Panel, Viper Red, B-176. X
-
34517302823 Hinge LockHinge Lock
