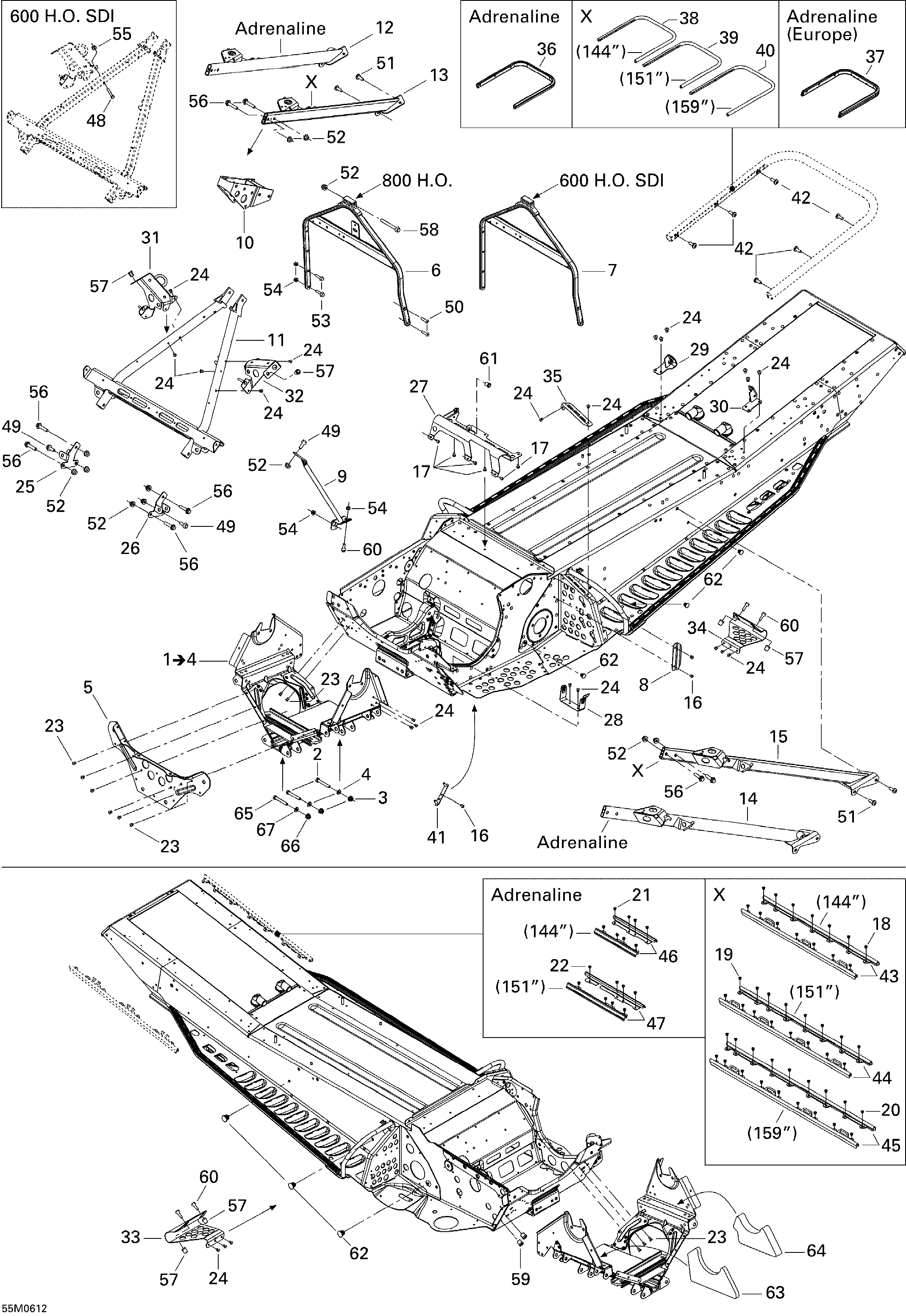

09- Frame and Components 800HO для BRP Ski-Doo Summit 800 HO, Adrenaline & X - 2006
-
№АртикулНазвание
-
1518324694 Cross Member. Includes 1 to 4Cross Member. Includes 1 to 4
-
2207085544 Hex Screw M8 X 55Hex Screw M8 X 55
-
3233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
4234081410 Flat Washer 8 mmFlat Washer 8 mm
-
5518324726 Front PlateFront Plate
-
6518323979 Handle Support. 800 H.OHandle Support. 800 H.O
-
8518317504 Cable ProtectorCable Protector
-
9518323472 Brace, BlackBrace, Black
-
10518323854 Bracket BlockBracket Block
-
11518324739 Upper Cross MemberUpper Cross Member
-
12518323352 RH Member. AdrenalineRH Member. Adrenaline
-
13518324182 RH Member. XRH Member. X
-
14518323354 LH Member. AdrenalineLH Member. Adrenaline
-
15518324183 LH Member. XLH Member. X
-
16390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
17390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
18390402400 Pop Rivet 3/16''. X with Track 144''Pop Rivet 3/16''. X with Track 144''
-
19390402400 Pop Rivet 3/16''. X with Track 151''Pop Rivet 3/16''. X with Track 151''
-
20390402400 Pop Rivet 3/16''. X with Track 159''Pop Rivet 3/16''. X with Track 159''
-
21390402400 Pop Rivet 3/16''. Adrenaline with Track 144''Pop Rivet 3/16''. Adrenaline with Track 144''
-
22390402400 Pop Rivet 3/16''. Adrenaline with Track 151''Pop Rivet 3/16''. Adrenaline with Track 151''
-
23390909100 Avex RivetAvex Rivet
-
24390909200 Avex RivetAvex Rivet
-
25518322461 RH Shock BracketRH Shock Bracket
-
26518322462 LH Shock BracketLH Shock Bracket
-
27518323532 Intake Air Admission SupportIntake Air Admission Support
-
28518322726 Guard Belt Bracket, BlackGuard Belt Bracket, Black
-
29518323769 RH Bracket, BlackRH Bracket, Black
-
30518323770 LH Bracket, BlackLH Bracket, Black
-
31518323535 RH Console SupportRH Console Support
-
32518323536 LH Console SupportLH Console Support
-
33518324391 RH Toe HoldRH Toe Hold
-
34518324392 LH Toe HoldLH Toe Hold
-
35518323105 Plate, BlackPlate, Black
-
36518323778 Rear Bumper. AdrenalineRear Bumper. Adrenaline
-
37518324829 Rear Bumper. Adrenaline (Europe)Rear Bumper. Adrenaline (Europe)
-
38518324832 Rear Bumper. X with Track 144''Rear Bumper. X with Track 144''
-
39518324832 Rear Bumper. X with Track 151''Rear Bumper. X with Track 151''
-
40518324833 Rear Bumper. X with Track 159''Rear Bumper. X with Track 159''
-
41518323896 Trunk Bracket, BlackTrunk Bracket, Black
-
42236282084 Hex Screw M8 X 20Hex Screw M8 X 20
-
43518324970 RH Wire Protector. X with Track 144''RH Wire Protector. X with Track 144''
-
43518324973 LH Wire Protector. X with Track 144''LH Wire Protector. X with Track 144''
-
44518324971 RH Wire Protector. X with Track 151''RH Wire Protector. X with Track 151''
-
44518324974 LH Wire Protector. X with Track 151''LH Wire Protector. X with Track 151''
-
45518324940 RH Wire Protector. X with Track 159''RH Wire Protector. X with Track 159''
-
45518324942 LH Wire Protector. X with Track 159''LH Wire Protector. X with Track 159''
-
46518323901 RH Wire Protector. Adrenaline with Track 144''RH Wire Protector. Adrenaline with Track 144''
-
46518323902 LH Wire Protector. Adrenaline with Track 144''LH Wire Protector. Adrenaline with Track 144''
-
47518325043 RH Wire Protector. Adrenaline with Track 151''RH Wire Protector. Adrenaline with Track 151''
-
47518325044 LH Wire Protector. Adrenaline with Track 151''LH Wire Protector. Adrenaline with Track 151''
-
49207682044 Hex Flanged Screw M8 X 20Hex Flanged Screw M8 X 20
-
50205862044 Socket Head Screw M6 X 20, Scotch GripSocket Head Screw M6 X 20, Scotch Grip
-
51250000154 Torx Screw M8 X 13Torx Screw M8 X 13
-
52233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
53207662544 Hex Flanged Screw M6 X 25Hex Flanged Screw M6 X 25
-
54233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
56207683544 Hex Flanged Screw M8 X 35Hex Flanged Screw M8 X 35
-
57415107300 InsertInsert
-
58207687044 Hex Flanged Screw M8 X 70Hex Flanged Screw M8 X 70
-
59293450166 InsertInsert
-
60207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
61293450232 InsertInsert
-
62518321954 Fastener PanelFastener Panel
-
63518323453 RH Front FoamRH Front Foam
-
64518323007 LH Front FoamLH Front Foam
-
65207085544 Hex Screw M8 X 55Hex Screw M8 X 55
-
66233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
67234081410 Flat Washer 8 mmFlat Washer 8 mm
