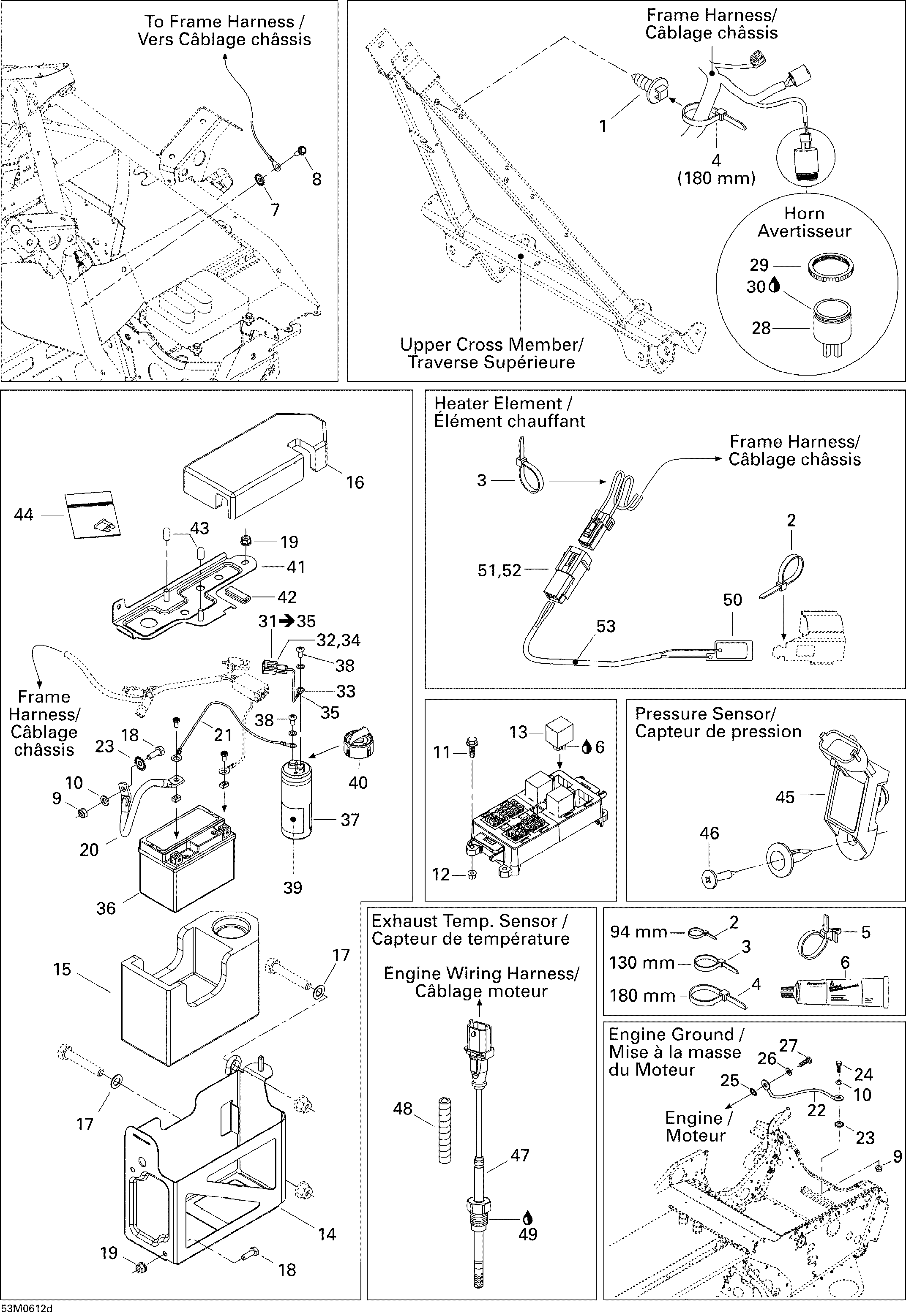

10- Electrical Accessories 2 - (600 HO SDI) для BRP Ski-Doo Summit 600 HO SDI, Adrenaline - 2006
-
№АртикулНазвание
-
1293730018 Dart MountDart Mount
-
2293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
3293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
4414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
5293750009 Tie Rap 160 mmTie Rap 160 mm
-
6293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
7394001900 External Tooth Lock WasherExternal Tooth Lock Washer
-
8210261280 Hex Forming Screw M6 X 12Hex Forming Screw M6 X 12
-
9232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
10234061410 Flat Washer M6Flat Washer M6
-
11207652044 Flanged Hex Screw M5 X 20Flanged Hex Screw M5 X 20
-
12233251414 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
13410113604 RelayRelay
-
14515176230 Battery Support BlackBattery Support Black
-
15515176190 Capacitor SupportCapacitor Support
-
16515176114 CoverCover
-
17503175800 WasherWasher
-
18207161844 Hex Screw M6 X 18Hex Screw M6 X 18
-
19233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
20515175749 Ground WireGround Wire
-
21515176119 Ground Harness (Capacitor)Ground Harness (Capacitor)
-
22515176276 Battery Assisted Ground CableBattery Assisted Ground Cable
-
23250200041 Serrated Lock Washer 6 mmSerrated Lock Washer 6 mm
-
24207162044 Hex Screw M6 X 20Hex Screw M6 X 20
-
25234481608 Serrated Lock Washer 8 mmSerrated Lock Washer 8 mm
-
26234081410 Flat Washer 8 mmFlat Washer 8 mm
-
27207181644 Hex. Screw M8 X 16Hex. Screw M8 X 16
-
28515176035 HornHorn
-
29414805101 Plastic NutPlastic Nut
-
30296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
31515176120 Capacitor Harness. Includes 31 to 35Capacitor Harness. Includes 31 to 35
-
32515175273 Male TerminalMale Terminal
-
33515175504 Ring TerminalRing Terminal
-
34515175509 Male Terminal Housing, 1 CircuitMale Terminal Housing, 1 Circuit
-
36410301204 Battery With Fasteners, 3 AmperesBattery With Fasteners, 3 Amperes
-
37515176387 CapacitorCapacitor
-
38515176257 Mechanical ScrewMechanical Screw
-
39516002976 Capacitor DecalCapacitor Decal
-
40515176211 CapCap
-
41515175735 Battery StripBattery Strip
-
42414506600 TrimTrim
-
43515176141 CapCap
-
45420274055 Pressure SensorPressure Sensor
-
46414745900 Phillips ScrewPhillips Screw
-
47515176132 Temperature SensorTemperature Sensor
-
48515175442 Tubing, 6 mmTubing, 6 mm
-
49293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
-
50515176256 Heater ElementHeater Element
-
51515175654 Male Terminal Housing, 2 CircuitsMale Terminal Housing, 2 Circuits
-
52515175232 Male TerminalMale Terminal
-
53515175332 Low Temperature Tubing, VinylLow Temperature Tubing, Vinyl
