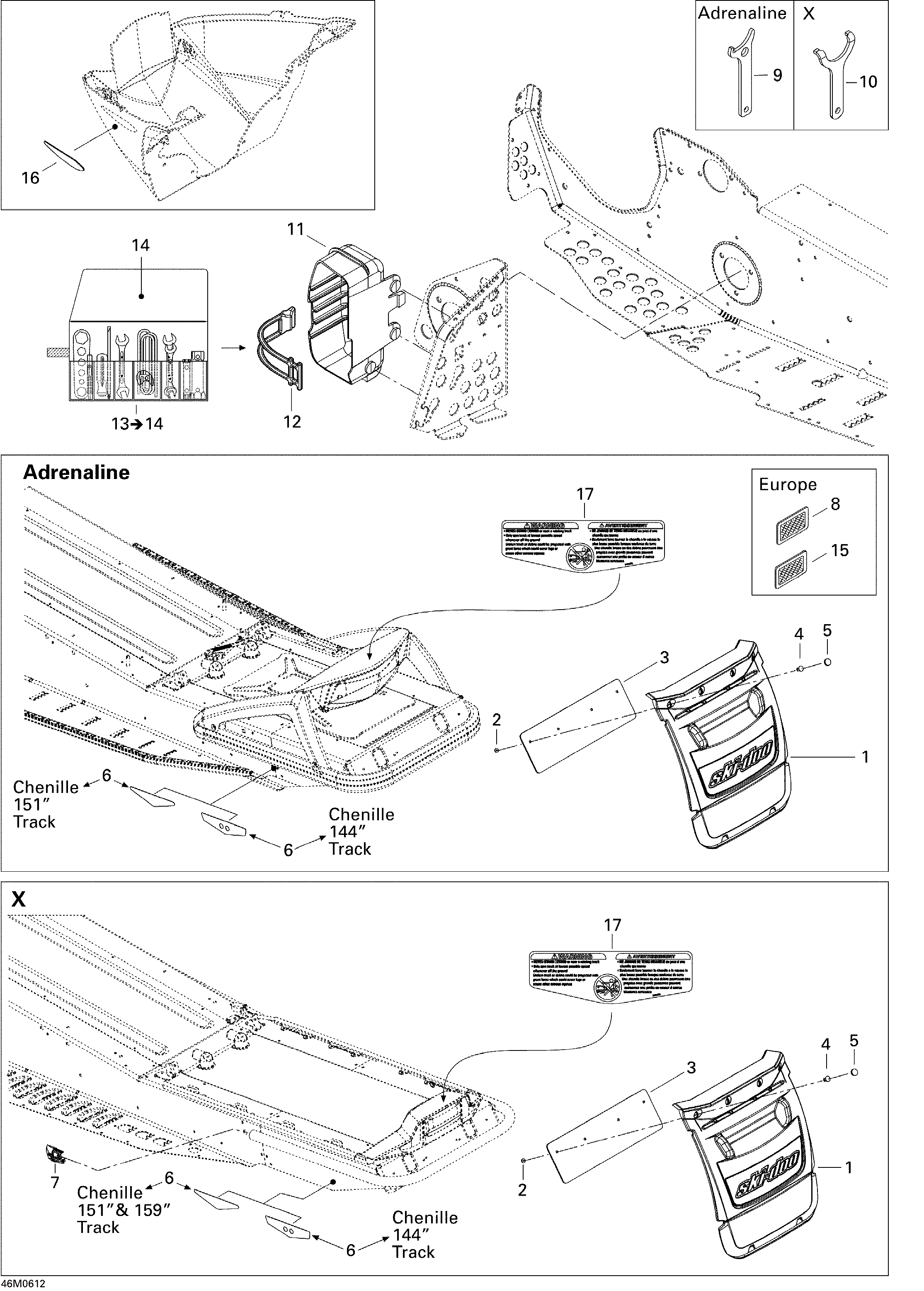

09- Utilities 600HO для BRP Ski-Doo Summit 600 HO SDI, Adrenaline - 2006
-
№АртикулНазвание
-
1520000560 Snow Guard. AdrenalineSnow Guard. Adrenaline
-
2517225900 Flat WasherFlat Washer
-
3520000488 Snow Guard ReinforcementSnow Guard Reinforcement
-
4293150087 Pop Rivet 3/16''Pop Rivet 3/16''
-
5277000203 Cap (Black)Cap (Black)
-
6520000382 Rear Reflector. 144'' TrackRear Reflector. 144'' Track
-
6520000383 Rear Reflector. 144'' Track, EuropeRear Reflector. 144'' Track, Europe
-
8520000271 Reflector Amber (Europe). Adrenaline EuropeReflector Amber (Europe). Adrenaline Europe
-
9529032900 Adjustment Wrench. AdrenalineAdjustment Wrench. Adrenaline
-
11520000322 TrunkTrunk
-
12520000528 LatchLatch
-
13529035596 Tool Kit. Includes 13 to 14Tool Kit. Includes 13 to 14
-
14520000047 Tool BagTool Bag
-
15415037900 White Reflector, Europe. Adrenaline EuropeWhite Reflector, Europe. Adrenaline Europe
-
16516001336 Front ReflectorFront Reflector
-
17516003034 Track Security Warning LabelTrack Security Warning Label
