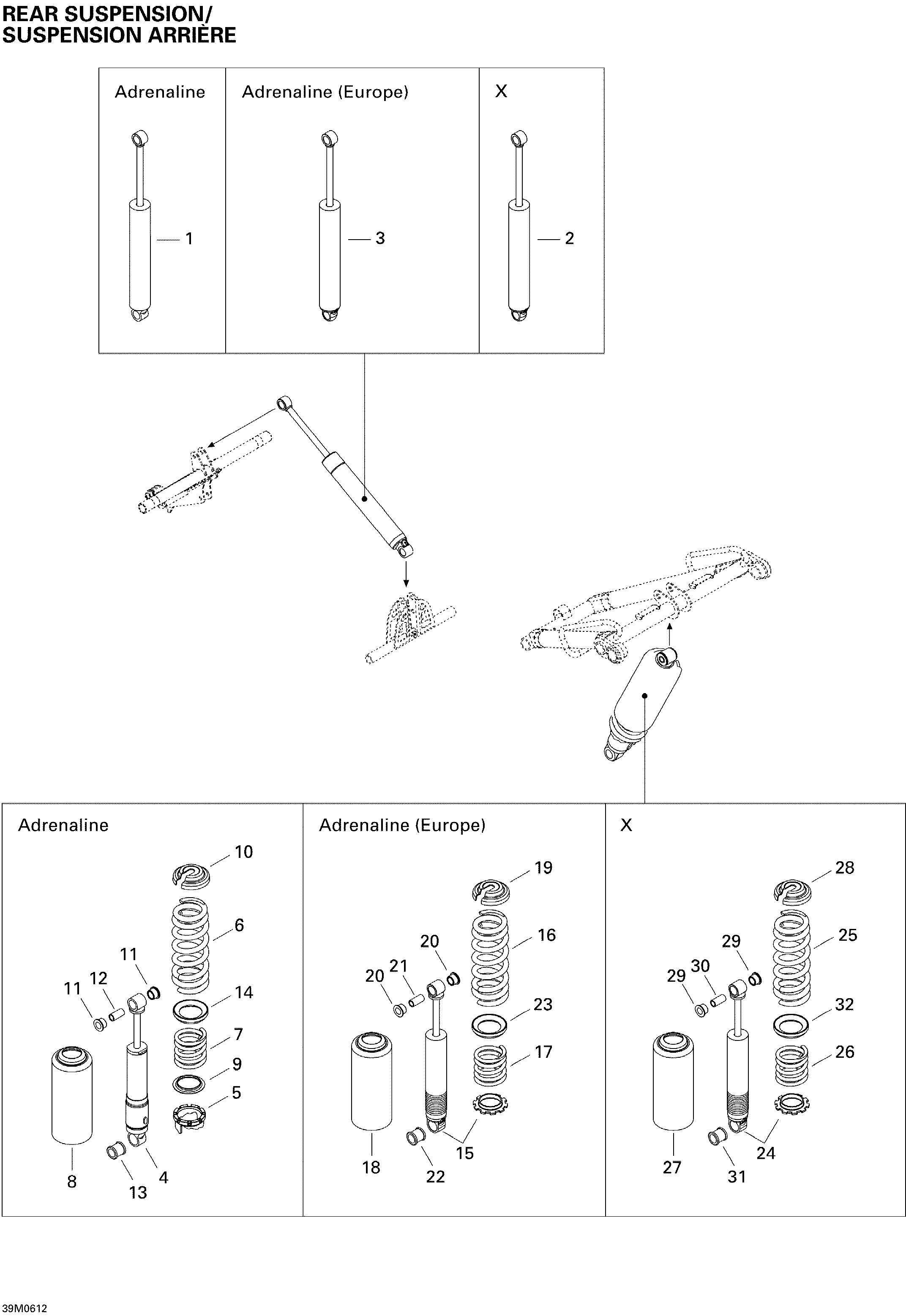

08- Rear Suspension Shocks 600HO для BRP Ski-Doo Summit 600 HO SDI, Adrenaline - 2006
-
№АртикулНазвание
-
1503190977 Rear Shock. AdrenalineRear Shock. Adrenaline
-
3503190990 Rear Shock. Adrenaline (Europe)Rear Shock. Adrenaline (Europe)
-
4503190664 Center Shock. AdrenalineCenter Shock. Adrenaline
-
5503183700 Cam 45°. AdrenalineCam 45°. Adrenaline
-
6503189990 Spring. AdrenalineSpring. Adrenaline
-
7503190471 Spring. AdrenalineSpring. Adrenaline
-
8503188930 Protector. AdrenalineProtector. Adrenaline
-
9517184300 Spring Guide. AdrenalineSpring Guide. Adrenaline
-
10503140600 Spring Stopper. AdrenalineSpring Stopper. Adrenaline
-
11503189117 Cushion. AdrenalineCushion. Adrenaline
-
12503189282 Bushing. AdrenalineBushing. Adrenaline
-
13503189271 Cushion. AdrenalineCushion. Adrenaline
-
14505070538 Spring Spacer. AdrenalineSpring Spacer. Adrenaline
-
15503190662 Center Shock. Adrenaline (Europe)Center Shock. Adrenaline (Europe)
-
16503189990 Spring. Adrenaline (Europe)Spring. Adrenaline (Europe)
-
17503190471 Spring. Adrenaline (Europe)Spring. Adrenaline (Europe)
-
18503188930 Protector. Adrenaline (Europe)Protector. Adrenaline (Europe)
-
19503140600 Spring Stopper. Adrenaline (Europe)Spring Stopper. Adrenaline (Europe)
-
20503189117 Cushion. Adrenaline (Europe)Cushion. Adrenaline (Europe)
-
21503189282 Bushing. Adrenaline (Europe)Bushing. Adrenaline (Europe)
-
22503189271 Cushion. Adrenaline (Europe)Cushion. Adrenaline (Europe)
-
23505070538 Spring Spacer. Adrenaline (Europe)Spring Spacer. Adrenaline (Europe)
