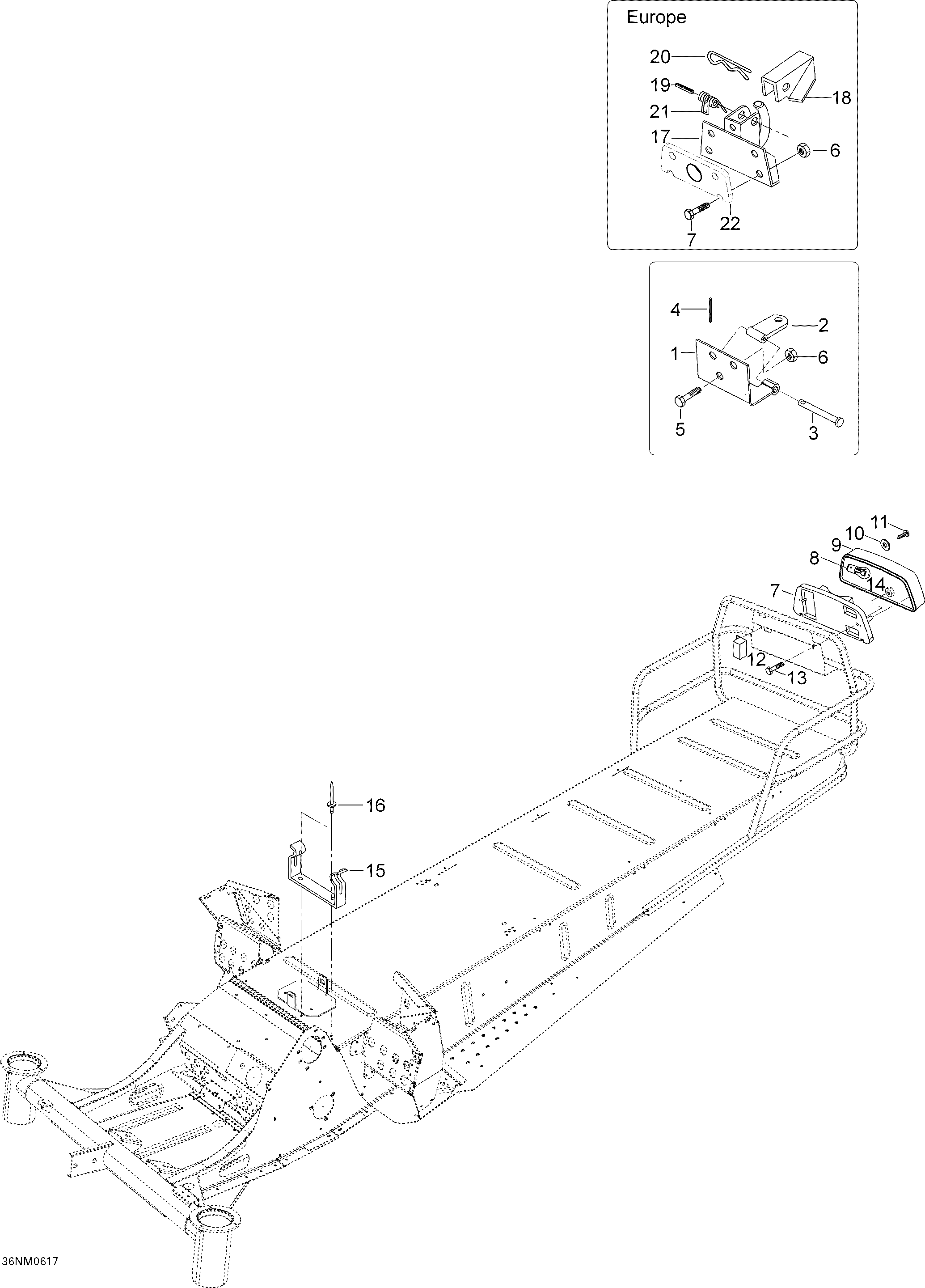

09- Frame and Components для BRP Ski-Doo Skandic LT 440F - 2006
-
№АртикулНазвание
-
1M5346638 Plate. Canada / U.S.APlate. Canada / U.S.A
-
2M548745 Hitch Plate. Canada / U.S.AHitch Plate. Canada / U.S.A
-
3560309200 Pin-Retainer. Canada / U.S.APin-Retainer. Canada / U.S.A
-
4M41031 Pin. Canada / U.S.APin. Canada / U.S.A
-
5M40336 Screw M8 X 20. Canada / U.S.AScrew M8 X 20. Canada / U.S.A
-
540037 He. screw M8 x 25. EuropeHe. screw M8 x 25. Europe
-
6232581414 Elastic Stop Nut M8. Canada / U.S.AElastic Stop Nut M8. Canada / U.S.A
-
633011 Elastic stop nut M8. EuropeElastic stop nut M8. Europe
-
7510004061 Light HousingLight Housing
-
8410504100 Tail Lamp BulbTail Lamp Bulb
-
9414513700 LensLens
-
10414516400 WasherWasher
-
11209632540 Phillips Tapping Screw M3.9 X 25Phillips Tapping Screw M3.9 X 25
-
12605448415 Protection PlateProtection Plate
-
13207063044 Hex Screw M6 X 30Hex Screw M6 X 30
-
14M33200 Nut M6Nut M6
-
15M5346204 SupportSupport
-
16M36083 RivetRivet
-
175344208 Hitch. EuropeHitch. Europe
-
185440767 Lock. EuropeLock. Europe
-
1941012 Pin. EuropePin. Europe
-
2041029 Hair pin. EuropeHair pin. Europe
-
21545693 Spring. EuropeSpring. Europe
-
225446915 Extension. EuropeExtension. Europe
