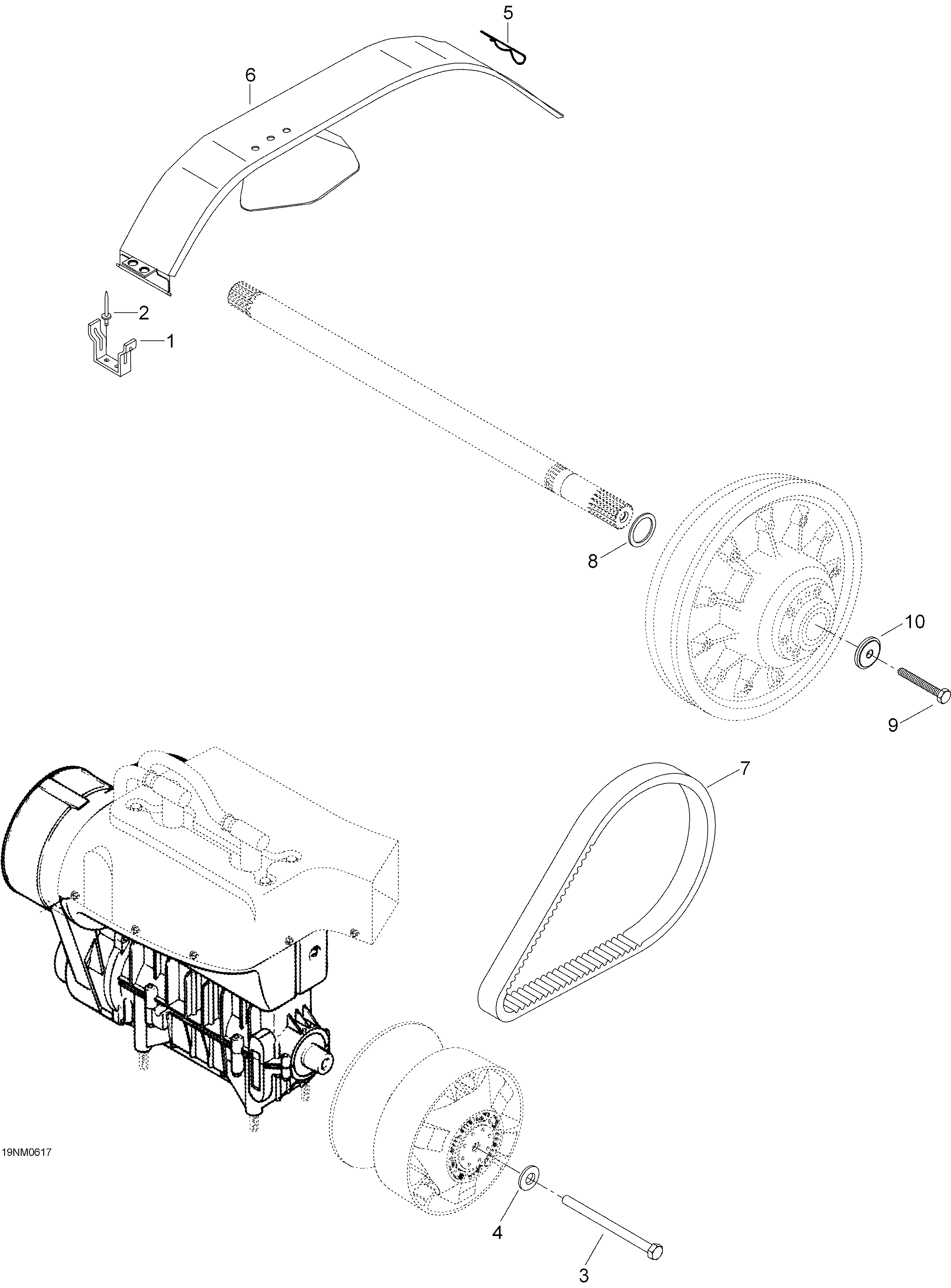

05- Pulley System для BRP Ski-Doo Skandic LT 440F - 2006
-
№АртикулНазвание
-
1518202100 Belt Guard BracketBelt Guard Bracket
-
2M36083 RivetRivet
-
3417113800 BoltBolt
-
4M20090 Conical Spring WasherConical Spring Washer
-
5M5442726 PinPin
-
6M5145964 Belt GuardBelt Guard
-
7414633800 Drive BeltDrive Belt
-
8M548001 ShimShim
-
9M40012 Screw M8 X 80Screw M8 X 80
-
10517302322 Strength WasherStrength Washer
