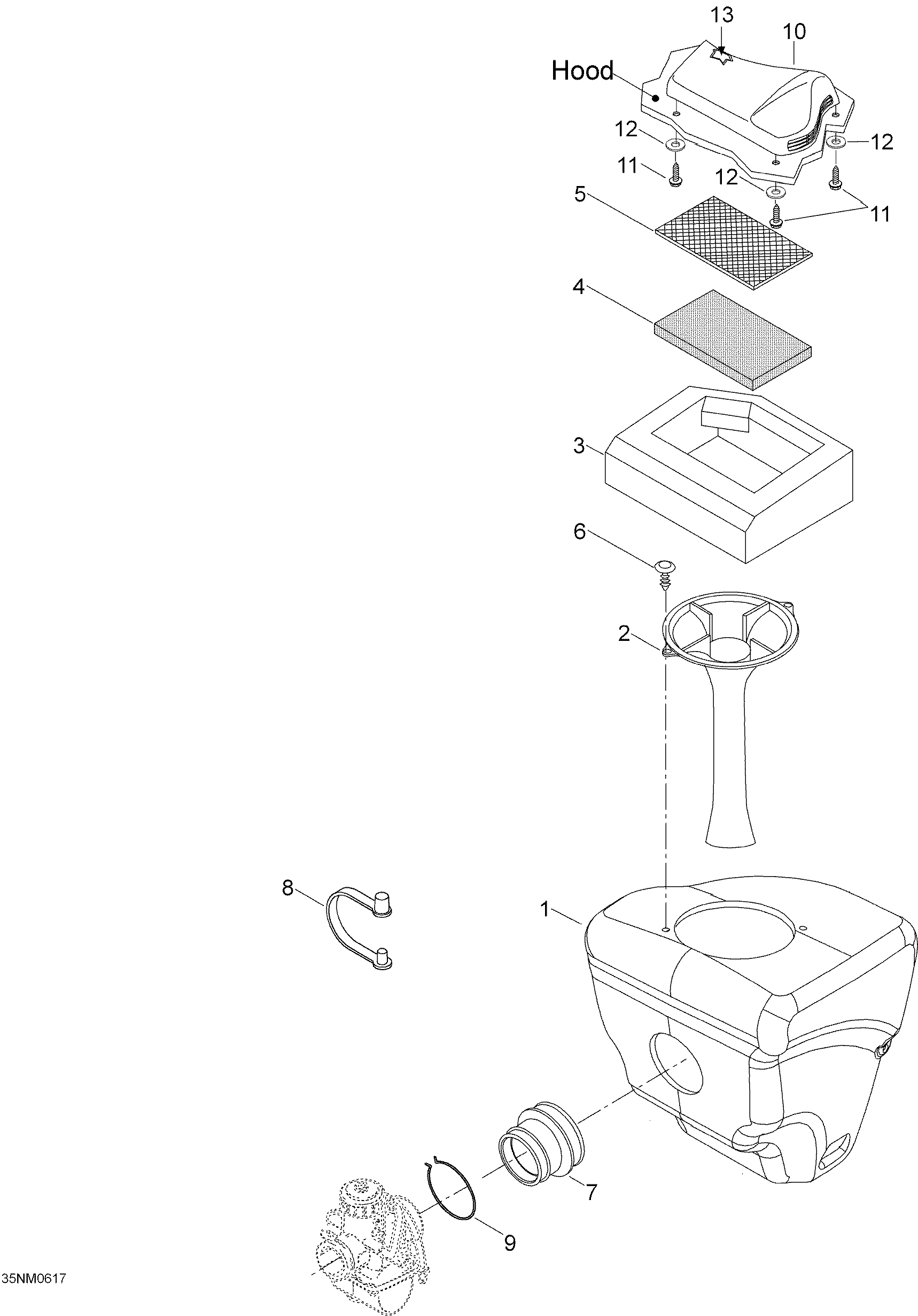

02- Air Intake System для BRP Ski-Doo Skandic LT 440F - 2006
-
№АртикулНазвание
-
1M5145397 Air IntakeAir Intake
-
3M5346536 External FoamExternal Foam
-
4M5345398 Air FilterAir Filter
-
5M5346220 Intake GrillIntake Grill
-
6414644300 DartDart
-
7M5245961 Air Intake AdaptorAir Intake Adaptor
-
8414379300 Cable ClipCable Clip
-
9M5346755 CollarCollar
-
10572077900 Intake CoverIntake Cover
-
11M40901 Hex ScrewHex Screw
-
12M20008 Washer 5 mmWasher 5 mm
-
13414972600 Air FilterAir Filter
