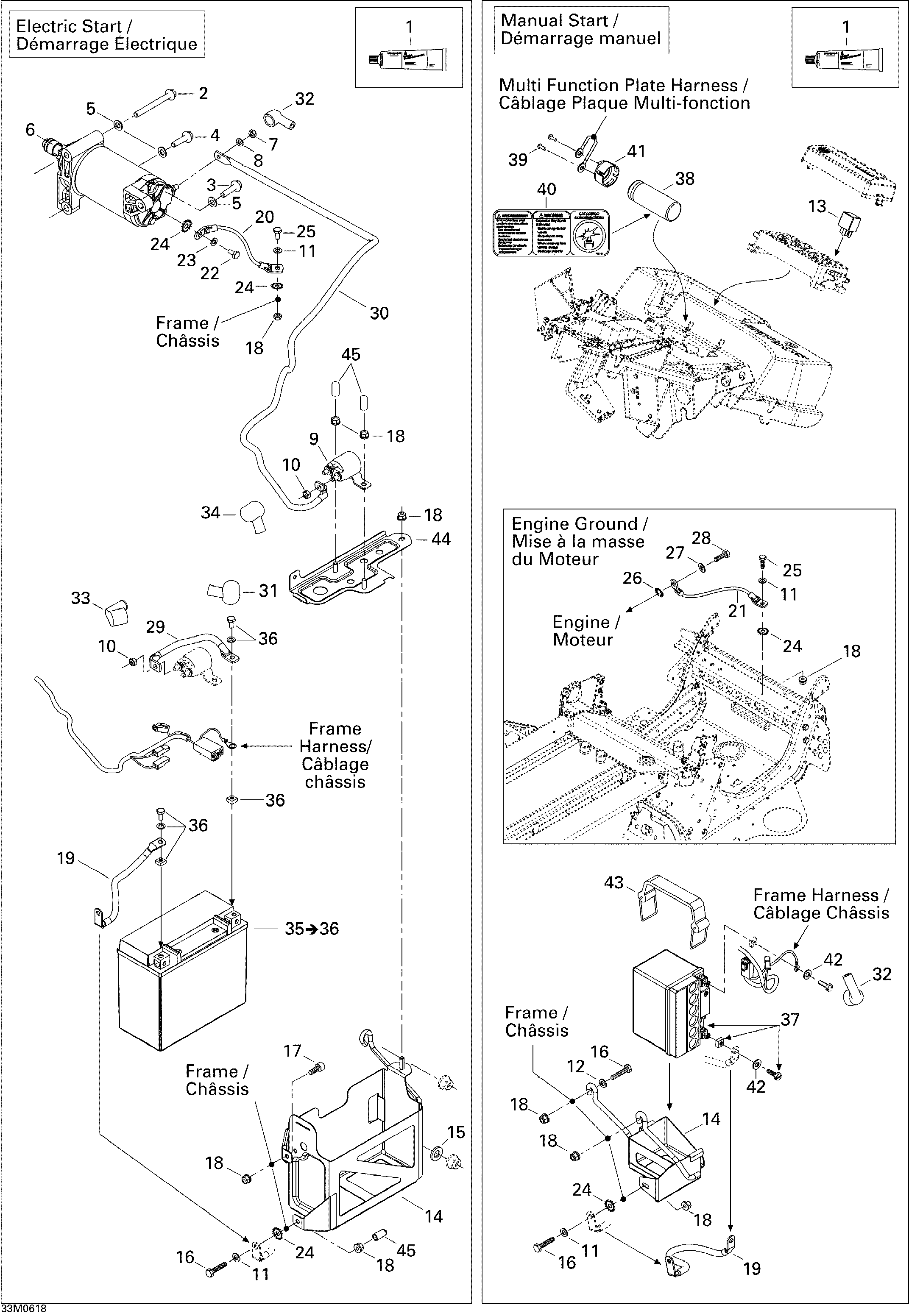

10- Electrical System для BRP Ski-Doo Mach Z 1000 SDI Adrenaline & X - 2006

№

Артикул

Название
1

293550004 Dielectric Grease, 150 g

Dielectric Grease, 150 g
2

207587544 Hex Flanged Screw M8 X 75, Scotch Grip. Electric Start

Hex Flanged Screw M8 X 75, Scotch Grip. Electric Start
3

207583044 Hex Flanged Screw M8 X 30, Scotch Grip. Electric Start

Hex Flanged Screw M8 X 30, Scotch Grip. Electric Start
4

207583044 Hex Flanged Screw M8 X 30, Scotch Grip. Electric Start

Hex Flanged Screw M8 X 30, Scotch Grip. Electric Start
5

250200008 Flat Washer 8 mm. Electric Start

Flat Washer 8 mm. Electric Start
6

515176133 Electric Starter Ass'y. Electric Start

Electric Starter Ass'y. Electric Start
7

232561414 Elastic Stop Nut M6. Electric Start

Elastic Stop Nut M6. Electric Start
8

234061410 Flat Washer M6. Electric Start

Flat Washer M6. Electric Start
9

515176011 Starter Relay. Electric Start

Starter Relay. Electric Start
10

232561414 Elastic Stop Nut M6. Electric Start

Elastic Stop Nut M6. Electric Start
11

234061410 Flat Washer M6

Flat Washer M6
12

224061121 Flat Washer. Manual Start

Flat Washer. Manual Start
13

410113604 Relay. Manual Start

Relay. Manual Start
14

515176048 Battery Support. Electric Start

Battery Support. Electric Start
14

515176142 Battery Support. Manual Start

Battery Support. Manual Start
15

506151251 Washer. Electric Start

Washer. Electric Start
16

207162544 Hex Screw M6 X 25. Manual Start

Hex Screw M6 X 25. Manual Start
16

207162544 Hex Screw M6 X 25. Electric Start

Hex Screw M6 X 25. Electric Start
17

205061644 Socket Head Screw M6 X 16. Electric Start

Socket Head Screw M6 X 16. Electric Start
18

233261414 Elastic Flanged Nut M6. Manual Start

Elastic Flanged Nut M6. Manual Start
18

233261414 Elastic Flanged Nut M6. Electric Start

Elastic Flanged Nut M6. Electric Start
19

515176172 Ground Wire

Ground Wire
20

515176277 Ground Wire. Electric Start

Ground Wire. Electric Start
21

515176276 Battery Assisted Ground Cable. Manual Start

Battery Assisted Ground Cable. Manual Start
22

207361644 Hex Screw M6 X 16, Scotch Grip. Electric Start

Hex Screw M6 X 16, Scotch Grip. Electric Start
23

234061410 Flat Washer M6. Electric Start

Flat Washer M6. Electric Start
24

250200041 Serrated Lock Washer 6 mm. Electric Start

Serrated Lock Washer 6 mm. Electric Start
24

250200041 Serrated Lock Washer 6 mm. Manual Start

Serrated Lock Washer 6 mm. Manual Start
25

207162044 Hex Screw M6 X 20

Hex Screw M6 X 20
26

234481608 Serrated Lock Washer 8 mm. Manual Start

Serrated Lock Washer 8 mm. Manual Start
27

234081410 Flat Washer 8 mm. Manual Start

Flat Washer 8 mm. Manual Start
28

207181644 Hex. Screw M8 X 16. Manual Start

Hex. Screw M8 X 16. Manual Start
29

515175904 Battery Wire. Electric Start

Battery Wire. Electric Start
30

515176259 Battery Wire. Electric Start

Battery Wire. Electric Start
31

570151000 Protection Cap. Electric Start

Protection Cap. Electric Start
32

278001771 Protector Cap

Protector Cap
33

570064200 Protection Cap. Electric Start

Protection Cap. Electric Start
34

515175919 Protector Cap. Electric Start

Protector Cap. Electric Start
35

410301203 Battery, 18 Amperes. Electric Start, Includes 35 To 36

Battery, 18 Amperes. Electric Start, Includes 35 To 36
36

295500849 Battery Fastener Kit. Electric Start

Battery Fastener Kit. Electric Start
37

410301204 Battery With Fasteners, 3 Amperes. Manual Start

Battery With Fasteners, 3 Amperes. Manual Start
38

515176387 Capacitor. Manual Start

Capacitor. Manual Start
39

515176257 Mechanical Screw. Manual Start

Mechanical Screw. Manual Start
40

516002976 Capacitor Decal. Manual Start

Capacitor Decal. Manual Start
41

515176211 Cap. Manual Start

Cap. Manual Start
42

234051410 Flat Washer. Manual Start

Flat Washer. Manual Start
43

515175475 Battery Strap. Manual Start

Battery Strap. Manual Start
44

515175735 Battery Strip. Electric Start

Battery Strip. Electric Start
45

515176141 Cap. Electric Start

Cap. Electric Start
