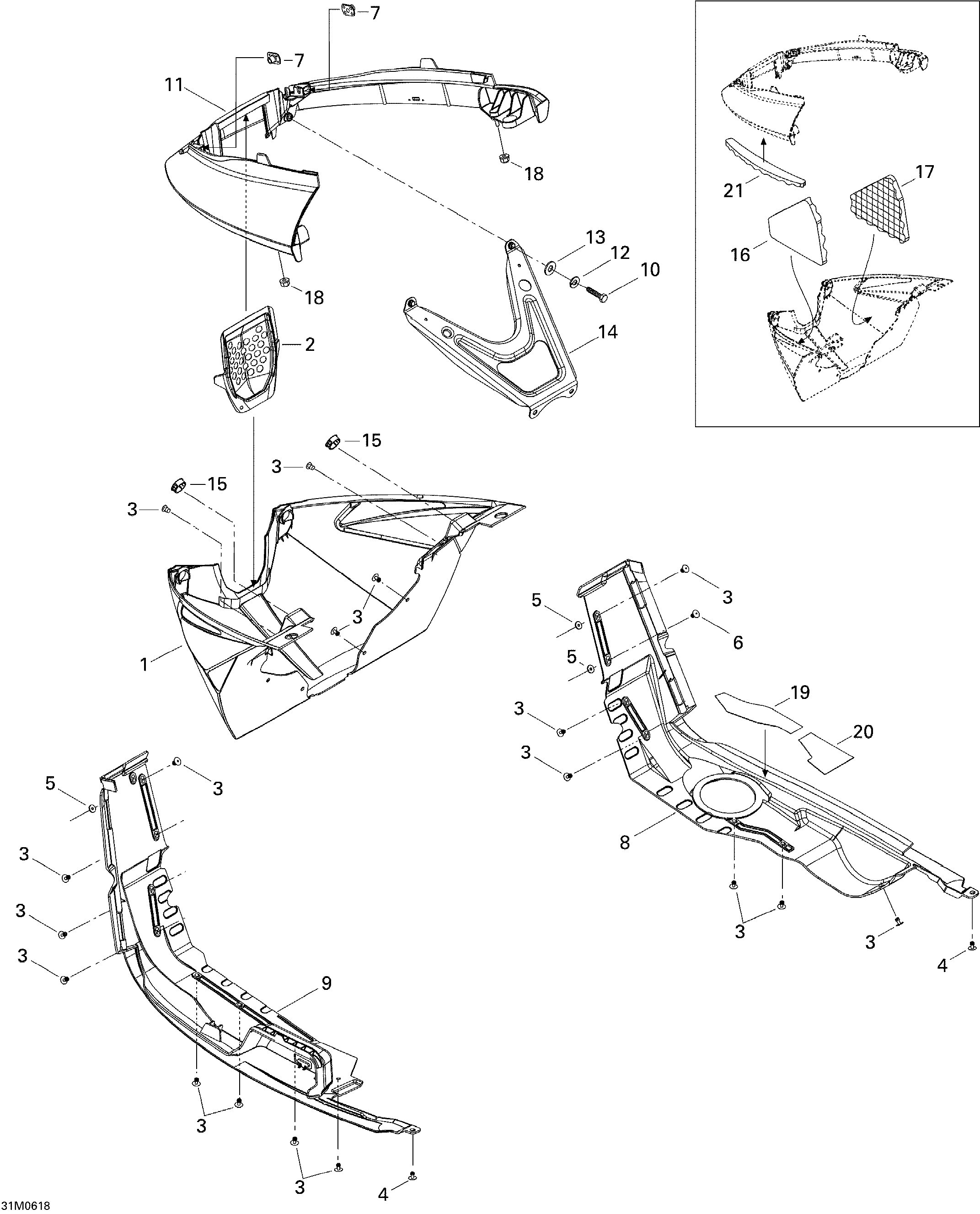

09- Bottom Pan для BRP Ski-Doo Mach Z 1000 SDI Adrenaline & X - 2006

  • №
    Артикул
    Название
  • 1
    502006727 Front Bottom Pan, Slate Grey. X
    Front Bottom Pan, Slate Grey. X
  • 1
    502006821 Front Bottom Pan. Adrenaline
    Front Bottom Pan. Adrenaline
  • 2
    502006746 Bottom Pan Grill, Black
    Bottom Pan Grill, Black
  • 3
    293150104 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 4
    293150103 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 5
    517124300 Washer
    Washer
  • 6
    293150043 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 7
    293100003 Nut M6
    Nut M6
  • 8
    502006725 RH Bottom Pan, Black
    RH Bottom Pan, Black
  • 9
    502006726 LH Bottom Pan, Black
    LH Bottom Pan, Black
  • 10
    207161444 Hex Screw M6 X 14
    Hex Screw M6 X 14
  • 11
    502006724 Bumper, Black. Adrenaline
    Bumper, Black. Adrenaline
  • 11
    502006760 Bumper, Slate Grey. X
    Bumper, Slate Grey. X
  • 12
    234161471 Lock Washer 6 mm
    Lock Washer 6 mm
  • 13
    224061121 Flat Washer
    Flat Washer
  • 14
    502006772 Support
    Support
  • 15
    414916600 Nylon Cap
    Nylon Cap
  • 16
    502006765 LH Bottom Pan Foam
    LH Bottom Pan Foam
  • 17
    502006767 RH Bottom Pan Foam
    RH Bottom Pan Foam
  • 18
    233261414 Elastic Flanged Nut M6
    Elastic Flanged Nut M6
  • 19
    502006809 Reflective Sheet
    Reflective Sheet
  • 20
    502006810 Reflective Sheet
    Reflective Sheet
  • 21
    502006800 Bumper Foam
    Bumper Foam
