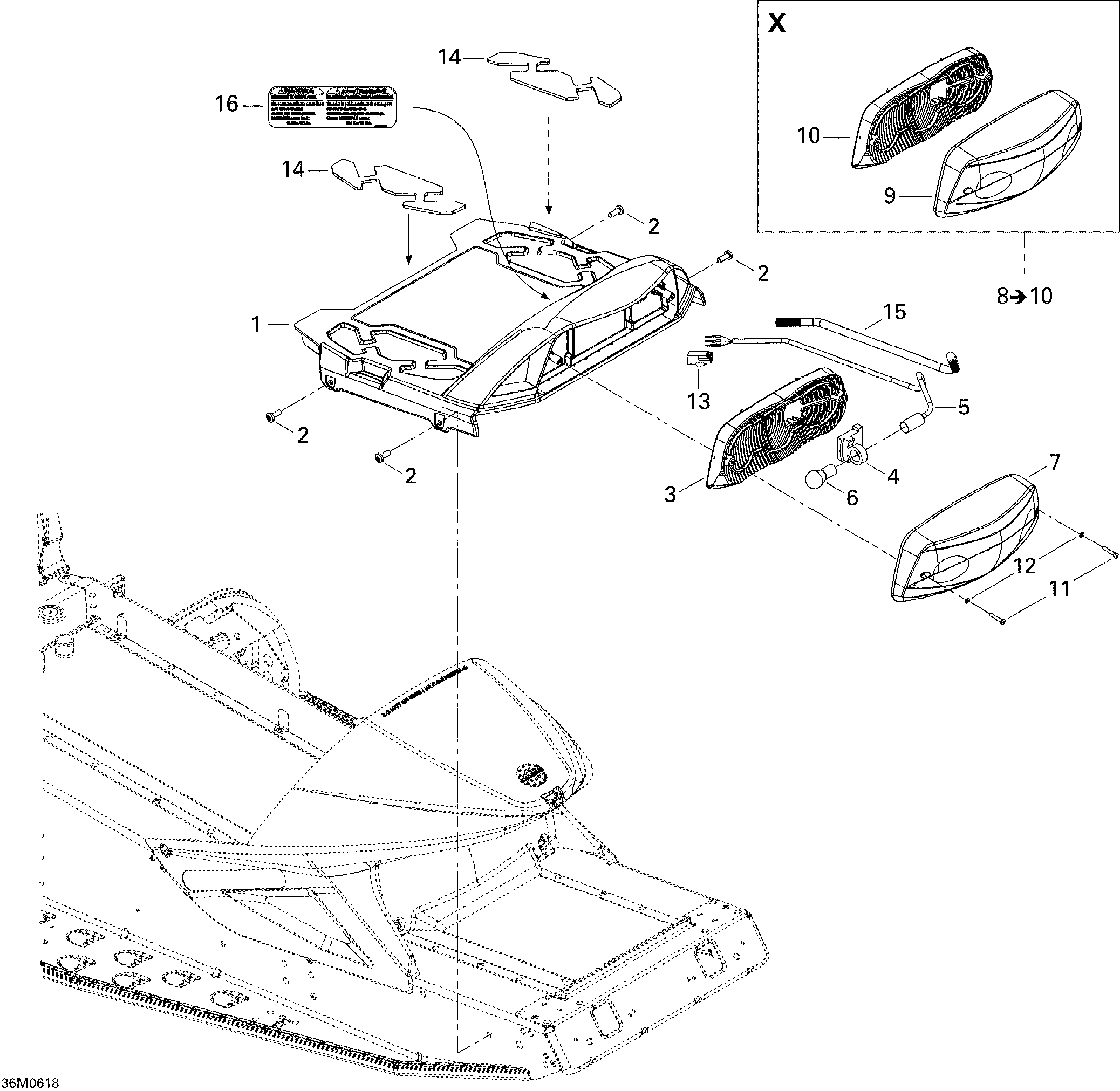

09- Luggage Rack для BRP Ski-Doo Mach Z 1000 SDI Adrenaline & X - 2006
-
№АртикулНазвание
-
1511000434 Luggage RackLuggage Rack
-
2250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
3510004442 ReflectorReflector
-
4511000431 Bulb SupportBulb Support
-
5511000465 Bulb SocketBulb Socket
-
6410504100 Tail Lamp BulbTail Lamp Bulb
-
7511000315 Lens. AdrenalineLens. Adrenaline
-
8861509300 Lens And Reflector Kit. X, Includes 8 to 10Lens And Reflector Kit. X, Includes 8 to 10
-
10510004442 Reflector. XReflector. X
-
11209632580 Phillips Tapping Screw 3.9 X 25Phillips Tapping Screw 3.9 X 25
-
12414516400 WasherWasher
-
13515175494 Male Terminal Housing, 3 CircuitsMale Terminal Housing, 3 Circuits
-
14520000481 Rear CarpetRear Carpet
-
15515175442 Tubing, 6 mmTubing, 6 mm
-
16516002960 Warning Label, Maximum Cargo LoadWarning Label, Maximum Cargo Load
