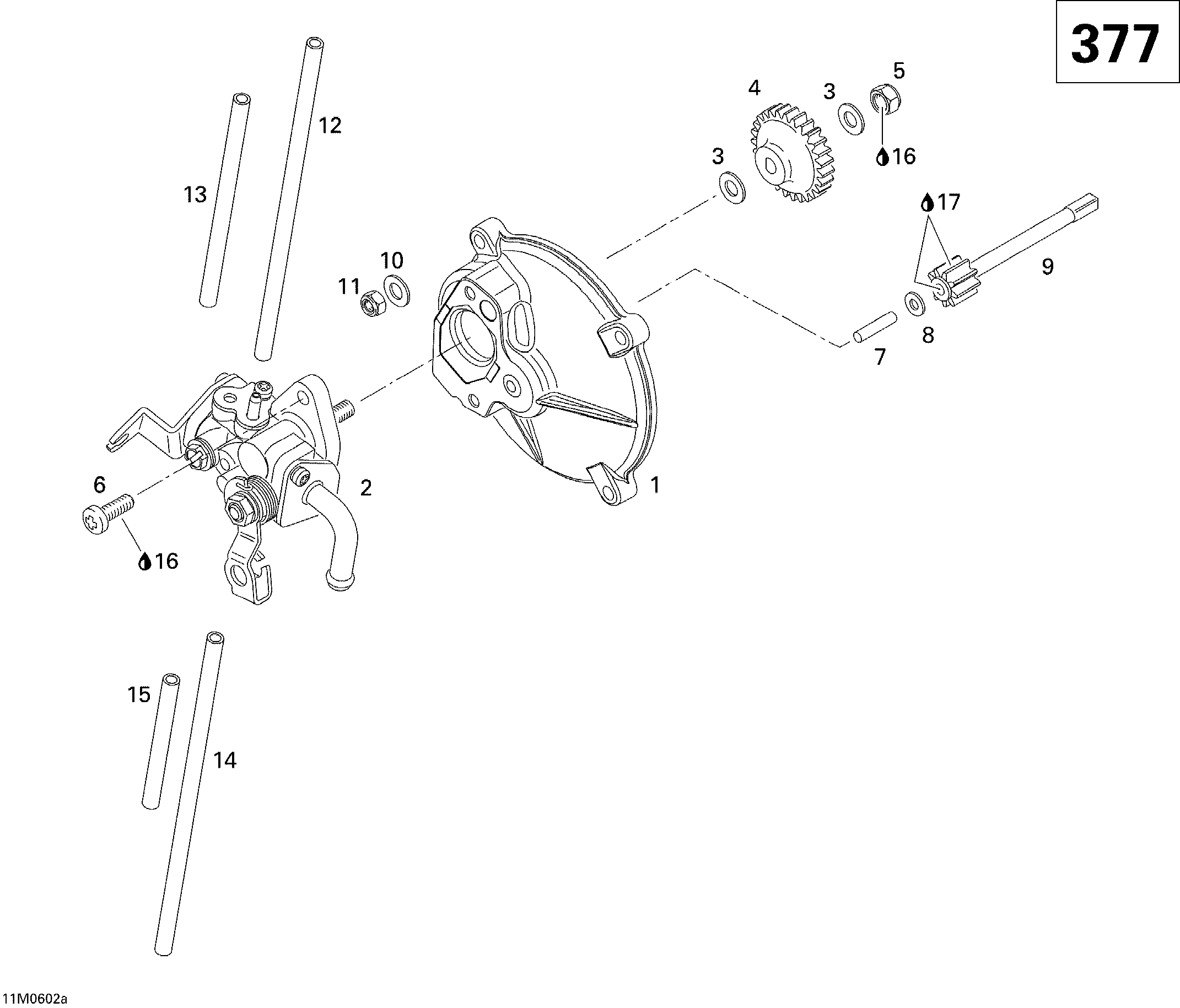

02- Oil Pump GSX 377 для BRP Ski-Doo GSX 380F - 2006
-
№АртикулНазвание
-
1420910162 Pump Mounting FlangePump Mounting Flange
-
2420889800 Oil Pump Ass'yOil Pump Ass'y
-
3420927945 Flat WasherFlat Washer
-
4420935930 Oil Pump Gear, 27 TeethOil Pump Gear, 27 Teeth
-
5232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
6420841971 ScrewScrew
-
7420832260 Needle PinNeedle Pin
-
8420244073 Washer 4.3 mmWasher 4.3 mm
-
9420935970 Gear, 9 TeethGear, 9 Teeth
-
10420827800 WasherWasher
-
11420942025 Nut M5Nut M5
-
12414413800 Oil LineOil Line
-
13276000048 Isolation Hose, 6 mmIsolation Hose, 6 mm
-
14414413800 Oil LineOil Line
-
15420960729 Isolation Hose 150 mmIsolation Hose 150 mm
-
16293800060 Loctite 243, 250 mlLoctite 243, 250 ml
-
17413707000 Molykote 111, 150 GMolykote 111, 150 G
