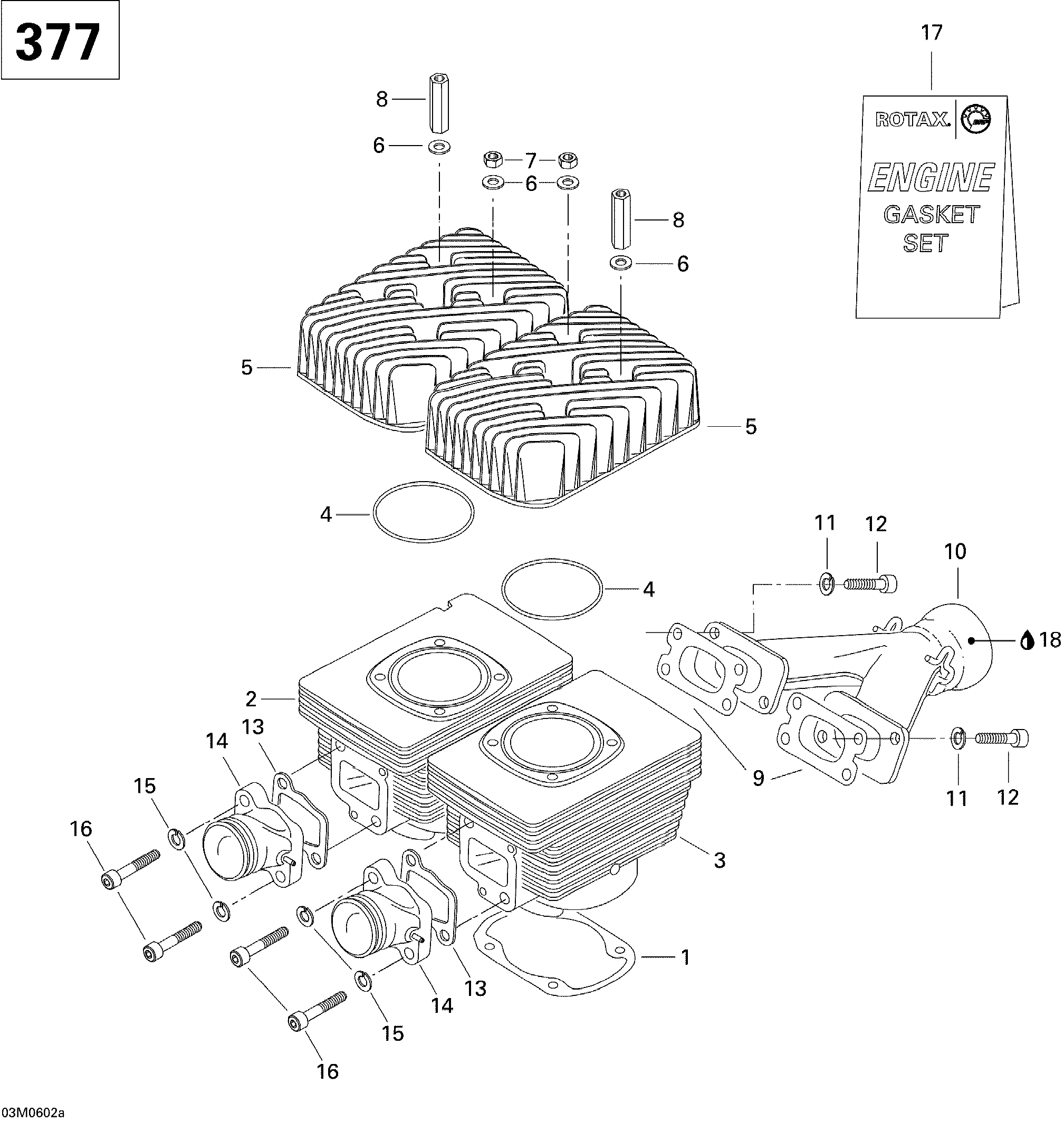

01- Cylinder And Exhaust Manifold GSX 377 для BRP Ski-Doo GSX 380F - 2006
-
№АртикулНазвание
-
1420430351 Gasket 0.4Gasket 0.4
-
2420923403 Cylinder With Sleeve, PTOCylinder With Sleeve, PTO
-
3420623235 Cylinder With Sleeve, MagCylinder With Sleeve, Mag
-
4420931380 O-ringO-ring
-
5420613630 Cylinder HeadCylinder Head
-
6420250311 Washer 8.4 mmWasher 8.4 mm
-
7232081414 Hex Nut M8Hex Nut M8
-
8420842208 Distance Nut M8 X 51Distance Nut M8 X 51
-
9420850114 GasketGasket
-
10420879457 Exhaust ManifoldExhaust Manifold
-
11420945752 Lock Washer 8 mmLock Washer 8 mm
-
12205083044 Socket Head Screw M8 X 30Socket Head Screw M8 X 30
-
13420831867 Intake Gasket 1.0 mmIntake Gasket 1.0 mm
-
14420667290 Intake SocketIntake Socket
-
15420945752 Lock Washer 8 mmLock Washer 8 mm
-
16420841591 Screw M8 X 35Screw M8 X 35
-
17420994232 Gasket Set, EngineGasket Set, Engine
-
18293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
