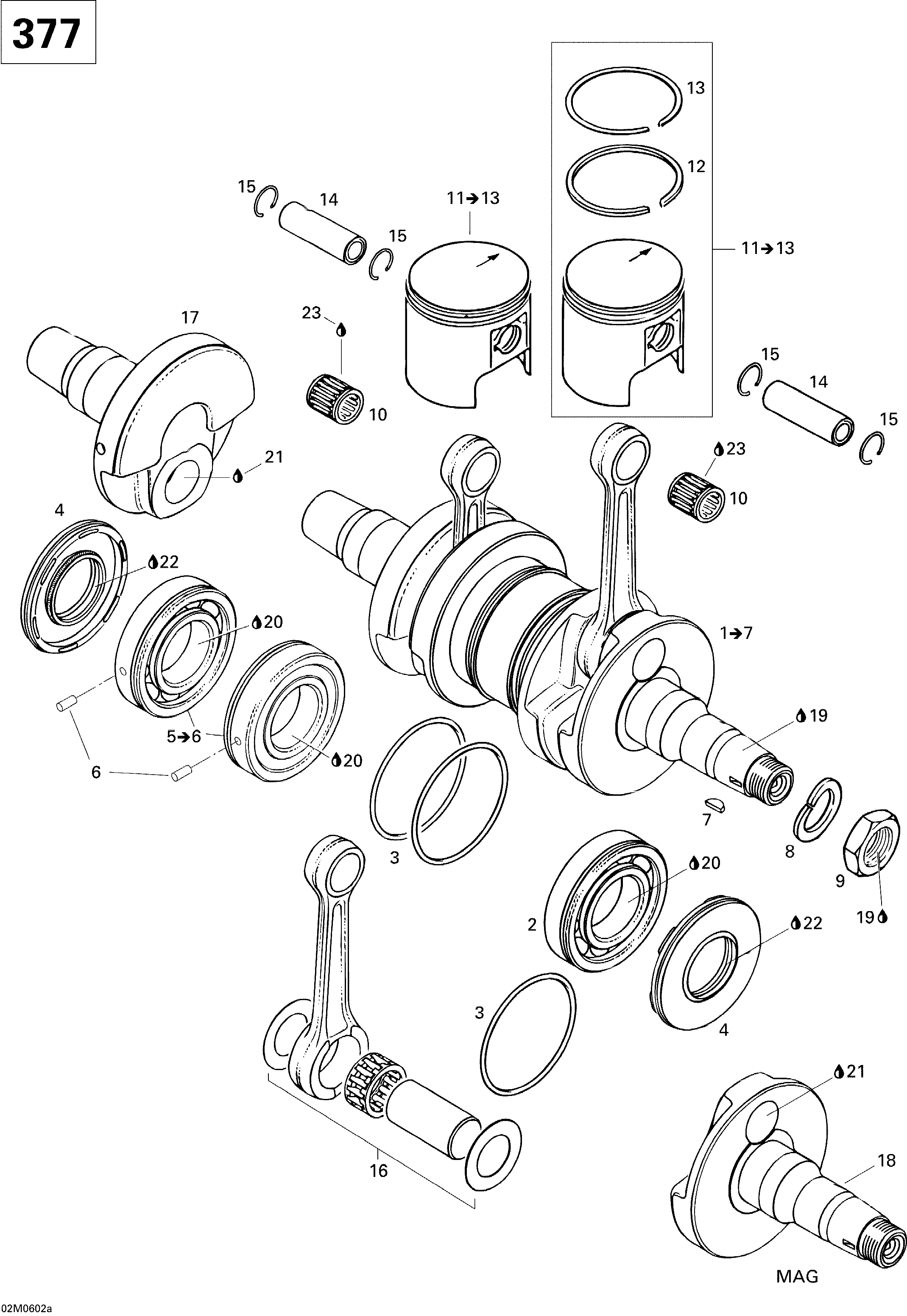

01- Crankshaft And Pistons GSX 377 для BRP Ski-Doo GSX 380F - 2006
-
№АртикулНазвание
-
1420889630 Crankshaft. Includes 1 to 7Crankshaft. Includes 1 to 7
-
1420889630 Crankshaft. Includes 1 to 7Crankshaft. Includes 1 to 7
-
2420832570 Ball Bearing 6207Ball Bearing 6207
-
2420832570 Ball Bearing 6207Ball Bearing 6207
-
3293300022 O-Ring 64 mmO-Ring 64 mm
-
3293300022 O-Ring 64 mmO-Ring 64 mm
-
4420831952 Oil SealOil Seal
-
4420831952 Oil SealOil Seal
-
5420832574 Ball Bearing 6207 Ass'y. Includes 5 to 6Ball Bearing 6207 Ass'y. Includes 5 to 6
-
5420832574 Ball Bearing 6207 Ass'y. Includes 5 to 6Ball Bearing 6207 Ass'y. Includes 5 to 6
-
6420929972 Dowel PinDowel Pin
-
6420929972 Dowel PinDowel Pin
-
7420246055 Woodruff KeyWoodruff Key
-
7420246055 Woodruff KeyWoodruff Key
-
8420945759 Lock Washer 22 mmLock Washer 22 mm
-
8420945759 Lock Washer 22 mmLock Washer 22 mm
-
9420842234 Hex Nut M22Hex Nut M22
-
9420842234 Hex Nut M22Hex Nut M22
-
10420932904 Needle BearingNeedle Bearing
-
10420932904 Needle BearingNeedle Bearing
-
11420890060 Piston Ass'y, 61.93 mm. Includes 11 to 13Piston Ass'y, 61.93 mm. Includes 11 to 13
-
11420890060 Piston Ass'y, 61.93 mm. Includes 11 to 13Piston Ass'y, 61.93 mm. Includes 11 to 13
-
11420890061 Piston 62.18 mm, 1st Oversize. Includes 11 to 13Piston 62.18 mm, 1st Oversize. Includes 11 to 13
-
11420890061 Piston 62.18 mm, 1st Oversize. Includes 11 to 13Piston 62.18 mm, 1st Oversize. Includes 11 to 13
-
11420890062 Piston 62.43 mm, 2nd Oversize. Includes 11 to 13Piston 62.43 mm, 2nd Oversize. Includes 11 to 13
-
11420890062 Piston 62.43 mm, 2nd Oversize. Includes 11 to 13Piston 62.43 mm, 2nd Oversize. Includes 11 to 13
-
12420915895 Rectangular Ring, 62.0 mmRectangular Ring, 62.0 mm
-
12420915895 Rectangular Ring, 62.0 mmRectangular Ring, 62.0 mm
-
12420915896 Rectangular Ring, 62.25 mmRectangular Ring, 62.25 mm
-
12420915896 Rectangular Ring, 62.25 mmRectangular Ring, 62.25 mm
-
12420915897 Rectangular Ring, 62.5 mmRectangular Ring, 62.5 mm
-
12420915897 Rectangular Ring, 62.5 mmRectangular Ring, 62.5 mm
-
13420215215 Semi-trapez Ring, 62.0 mmSemi-trapez Ring, 62.0 mm
-
13420215215 Semi-trapez Ring, 62.0 mmSemi-trapez Ring, 62.0 mm
-
13420215216 Semi-trapez Ring, 62.25 mmSemi-trapez Ring, 62.25 mm
-
13420215216 Semi-trapez Ring, 62.25 mmSemi-trapez Ring, 62.25 mm
-
13420215217 Semi-trapez Ring, 62.5 mmSemi-trapez Ring, 62.5 mm
-
13420215217 Semi-trapez Ring, 62.5 mmSemi-trapez Ring, 62.5 mm
-
14420916260 Gudgeon PinGudgeon Pin
-
14420916260 Gudgeon PinGudgeon Pin
-
15420945735 Piston CirclipPiston Circlip
-
15420945735 Piston CirclipPiston Circlip
-
16420889634 Rod Repair KitRod Repair Kit
-
16420889634 Rod Repair KitRod Repair Kit
-
17420818204 PTO Side CrankshaftPTO Side Crankshaft
-
17420818204 PTO Side CrankshaftPTO Side Crankshaft
-
18420819010 Mag Side Half-CrankMag Side Half-Crank
-
18420819010 Mag Side Half-CrankMag Side Half-Crank
-
19293800060 Loctite 243, 250 mlLoctite 243, 250 ml
-
19293800060 Loctite 243, 250 mlLoctite 243, 250 ml
-
20293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
-
20293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
-
21413711400 Loctite 648, 10 mlLoctite 648, 10 ml
-
21413711400 Loctite 648, 10 mlLoctite 648, 10 ml
-
22413707000 Molykote 111, 150 GMolykote 111, 150 G
-
22413707000 Molykote 111, 150 GMolykote 111, 150 G
-
23413802900 Injection Oil (12 X 1 Liter)Injection Oil (12 X 1 Liter)
-
23413802900 Injection Oil (12 X 1 Liter)Injection Oil (12 X 1 Liter)
