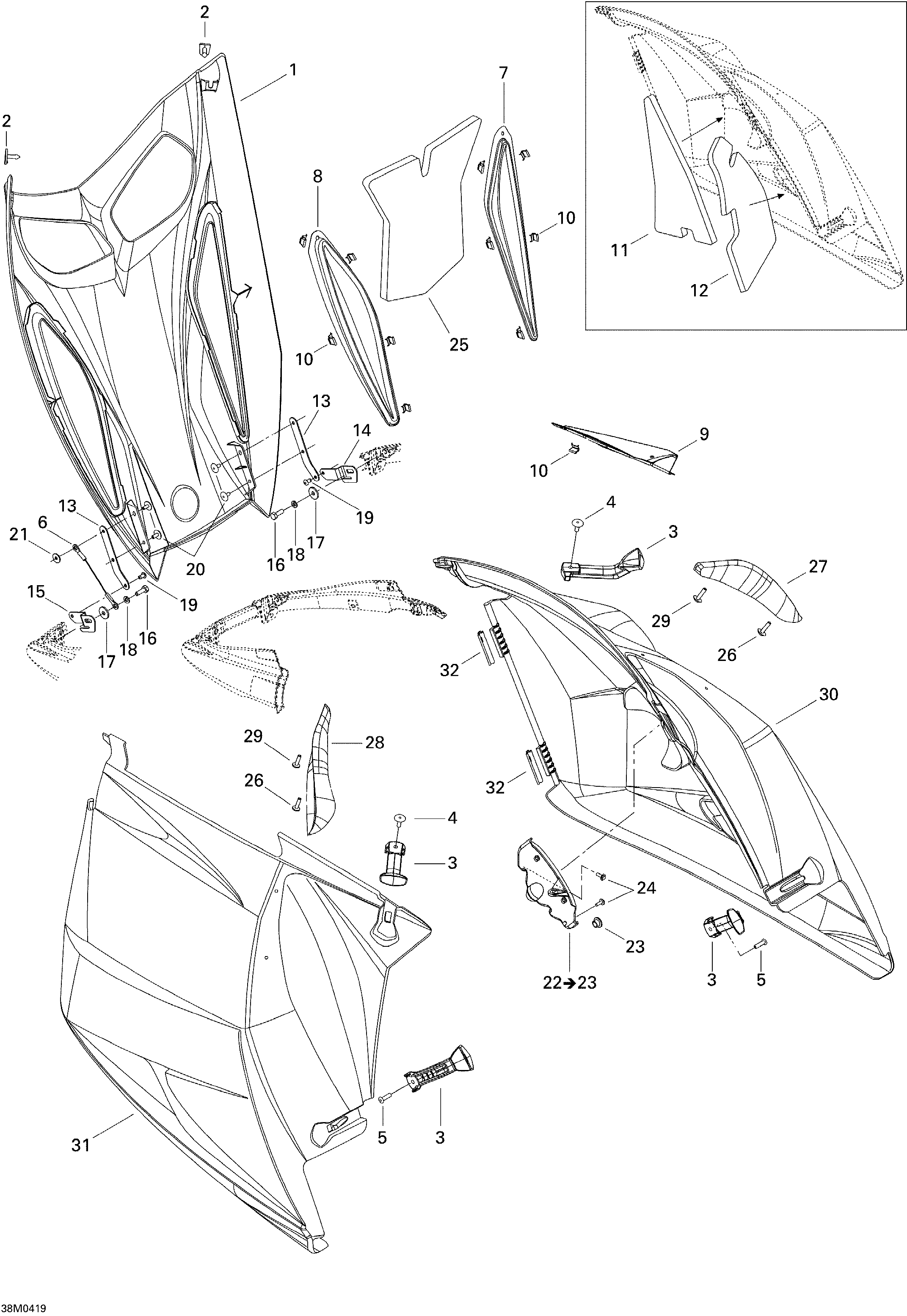

09- Hood для BRP Ski-Doo MX Z 600 HO SDI Renegade, Early Intro - 2005

  • №
    Артикул
    Название
  • 1
    517302788 Hood (Black (B-160)). Black (B-160)
    Hood (Black (B-160)). Black (B-160)
  • 2
    517302543 Pin
    Pin
  • 3
    517302448 Panel Latch
    Panel Latch
  • 4
    293150087 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 5
    390410100 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 6
    517302673 Retainer Cable
    Retainer Cable
  • 7
    517302936 RH Hood Grill
    RH Hood Grill
  • 8
    517302937 LH Hood Grill
    LH Hood Grill
  • 9
    517302938 RH Panel Grill
    RH Panel Grill
  • 10
    517302789 Clip
    Clip
  • 11
    517303082 RH Front Panel Foam
    RH Front Panel Foam
  • 12
    517303083 RH Rear Panel Foam
    RH Rear Panel Foam
  • 13
    517302544 Upper Half-Hinge
    Upper Half-Hinge
  • 14
    517302444 RH Lower Half-Hinge
    RH Lower Half-Hinge
  • 15
    517302445 LH Lower Half-Hinge
    LH Lower Half-Hinge
  • 16
    207161844 Hex Screw M6 X 18
    Hex Screw M6 X 18
  • 17
    224061121 Flat Washer
    Flat Washer
  • 18
    234161471 Lock Washer 6 mm
    Lock Washer 6 mm
  • 19
    390909200 Rivet Avex
    Rivet Avex
  • 20
    390406500 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 21
    517225900 Flat Washer
    Flat Washer
  • 22
    517303107 RH Console. Includes items 22 to 23
    RH Console. Includes items 22 to 23
  • 23
    275500241 Plug
    Plug
  • 24
    241151640 Hex Flanged Screw K50 X 16
    Hex Flanged Screw K50 X 16
  • 25
    517303081 Hood Foam
    Hood Foam
  • 26
    250000084 Phillips Screw K40 X 16
    Phillips Screw K40 X 16
  • 27
    517302800 RH Air Deflector
    RH Air Deflector
  • 28
    517302801 LH Air Deflector
    LH Air Deflector
  • 29
    250000101 Screw M4 X 25
    Screw M4 X 25
  • 30
    517303260 RH Panel (Viper Red (B-176)). Viper Red (B-176)
    RH Panel (Viper Red (B-176)). Viper Red (B-176)
  • 31
    517303261 LH Panel (Viper Red (B-176)). Viper Red (B-176)
    LH Panel (Viper Red (B-176)). Viper Red (B-176)
  • 32
    517302823 Hinge Lock
    Hinge Lock
