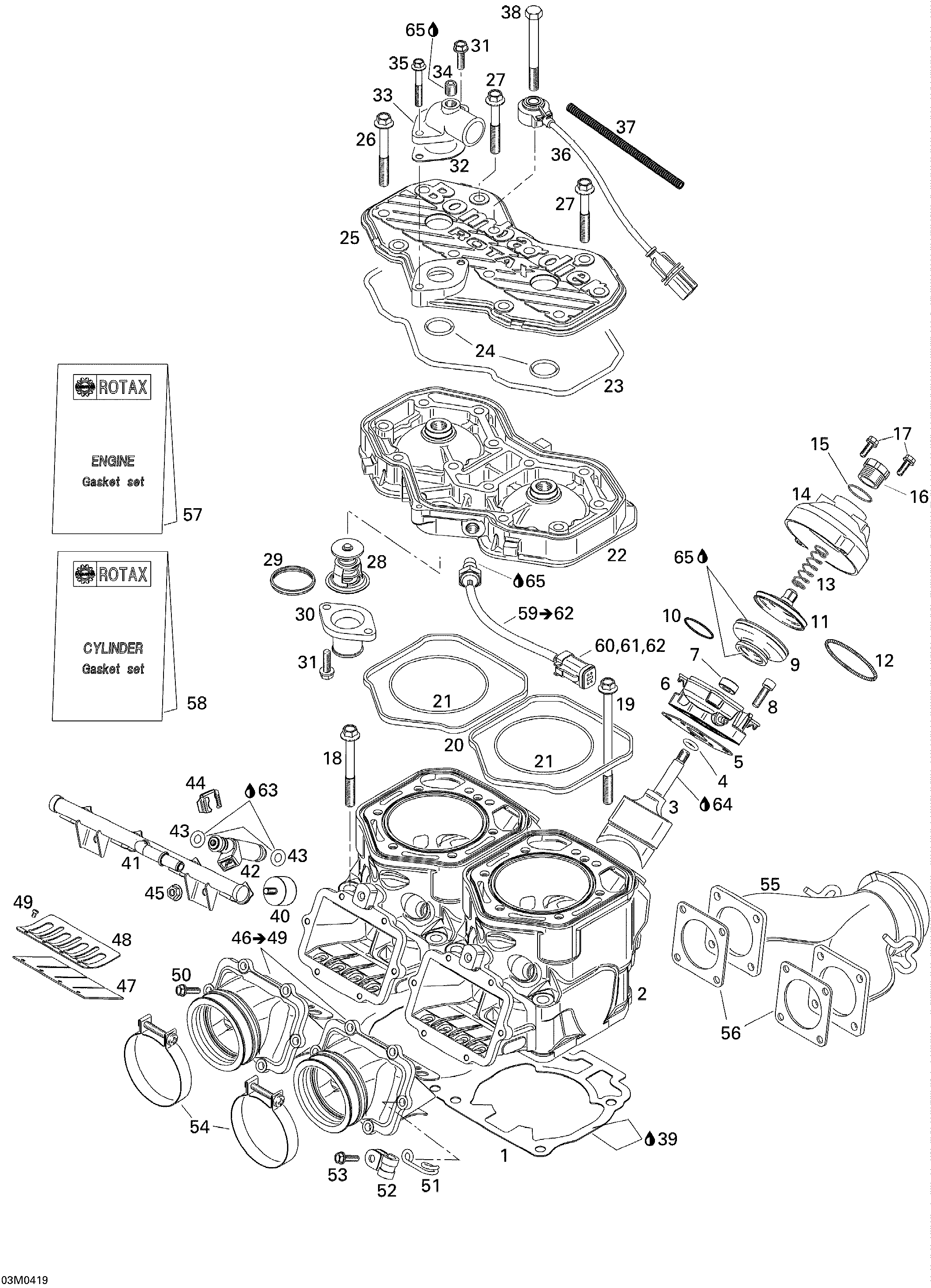

01- Cylinder, Exhaust Manifold and Reed Valve для BRP Ski-Doo MX Z 600 HO SDI Renegade, Early Intro - 2005
-
№АртикулНазвание
-
1420931893 Double Gasket 0.5 mmDouble Gasket 0.5 mm
-
420931892 Double Gasket 0.6 mmDouble Gasket 0.6 mm
-
420931894 Double Gasket 0.7 mmDouble Gasket 0.7 mm
-
420931895 Double Gasket 0.8 mmDouble Gasket 0.8 mm
-
2420613940 Cylinder «600 Ho Sdi»Cylinder «600 Ho Sdi»
-
3420854650 Exhaust ValveExhaust Valve
-
4420430110 O-RingO-Ring
-
5420931542 GasketGasket
-
6420854454 Valve HousingValve Housing
-
7420950730 Oil SealOil Seal
-
8205062544 Socket Head Screw M6 X 25Socket Head Screw M6 X 25
-
9420260729 BellowsBellows
-
10420838255 Hose SpringHose Spring
-
11420854449 Exhaust ValveExhaust Valve
-
12420939280 Hose SpringHose Spring
-
13420239942 SpringSpring
-
14420911558 Valve CoverValve Cover
-
15420430220 O-RingO-Ring
-
16420241221 Adjuster ScrewAdjuster Screw
-
17420241270 Taptite Screw M5 X 25Taptite Screw M5 X 25
-
18420640524 Hex Collar ScrewHex Collar Screw
-
19420640534 Hex Collar ScrewHex Collar Screw
-
20420931590 Rubber RingRubber Ring
-
21293300026 O-RingO-Ring
-
22420613702 Cylindre HeadCylindre Head
-
23420950320 O-RingO-Ring
-
24420430782 O-RingO-Ring
-
25420923460 Cylinder Head Cover (Silver)Cylinder Head Cover (Silver)
-
26420841306 Hex Collar Screw M8 X 65Hex Collar Screw M8 X 65
-
27420941621 Hex Collar Screw M8 X 56,5Hex Collar Screw M8 X 56,5
-
28420922518 ThermostateThermostate
-
29420931272 Sealing RingSealing Ring
-
30420922025 Bent Outlet SocketBent Outlet Socket
-
31420941250 Tapping Screw M6 X 20Tapping Screw M6 X 20
-
32420850338 GasketGasket
-
33420922062 Bent Outlet SocketBent Outlet Socket
-
34420240480 Plug Screw 1/8-27 NptPlug Screw 1/8-27 Npt
-
35420941451 Hex Collar Screw M6 X 40Hex Collar Screw M6 X 40
-
36420664030 Knock SensorKnock Sensor
-
37420460010 TubeTube
-
38420941221 Hex Screw M8 X 80Hex Screw M8 X 80
-
39293800038 Loctite 518, 50 mlLoctite 518, 50 ml
-
40420960065 StopperStopper
-
41420874490 Rail FuelRail Fuel
-
42420874485 Fuel InjectorsFuel Injectors
-
43420631220 O-RingO-Ring
-
44420851800 ClipClip
-
45420442172 NutNut
-
46420867260 Socket Carburetor. Includes items 46 to 49Socket Carburetor. Includes items 46 to 49
-
47420924680 Reed PedalReed Pedal
-
48420924695 Reed Pedal StopReed Pedal Stop
-
49420941215 Screw M3 X 5Screw M3 X 5
-
50420941925 Tapping Screw M5 X 16Tapping Screw M5 X 16
-
51420853640 BracketBracket
-
52517262800 BracketBracket
-
53420841550 Tapping Screw M5 X 22Tapping Screw M5 X 22
-
54420851065 ClampClamp
-
55420673072 ManifoldManifold
-
56420850552 GasketGasket
-
57420889922 Engine Gasket SetEngine Gasket Set
-
58420889926 Cylindre Gasket SetCylindre Gasket Set
-
59515175748 Temperature Sensor. Includes items 59 to 62Temperature Sensor. Includes items 59 to 62
-
60278000739 Male Housing (4 Circuits)Male Housing (4 Circuits)
-
61278000632 Female TerminalFemale Terminal
-
62515175677 Female Lock (2 Circuits)Female Lock (2 Circuits)
-
63413707000 Molykote 111Molykote 111
-
65420297906 Sealing Compound, 30 mlSealing Compound, 30 ml
