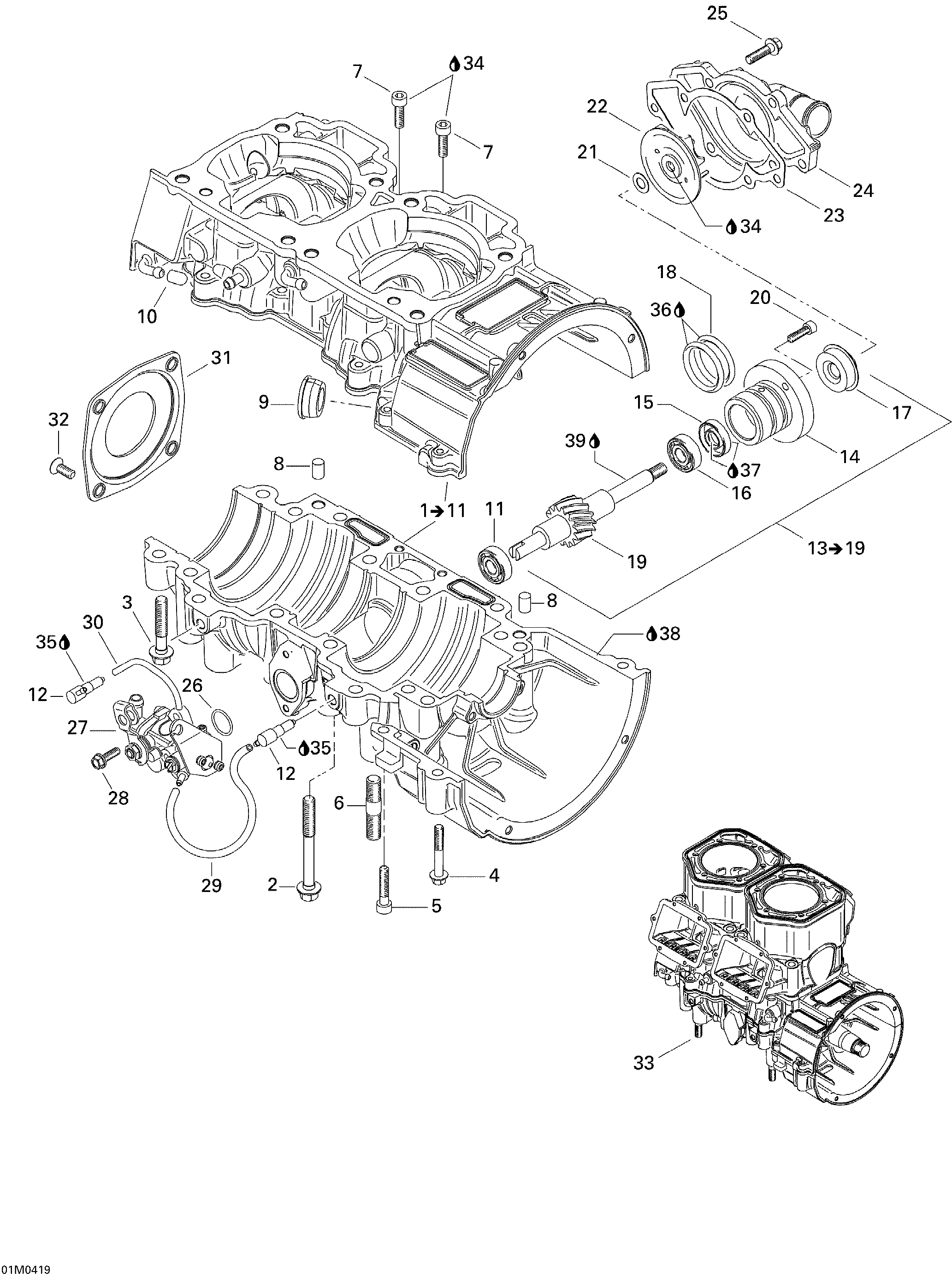

01- Crankcase, Water Pump And Oil Pump для BRP Ski-Doo MX Z 600 HO SDI Renegade, Early Intro - 2005
-
№АртикулНазвание
-
1420889611 Crankcase Ass'Y. Includes items 1 to 11Crankcase Ass'Y. Includes items 1 to 11
-
2420640836 Hex Collar Screw M8 X 75Hex Collar Screw M8 X 75
-
3420640431 Hex Collar Screw M8 X 45Hex Collar Screw M8 X 45
-
4420640311 Hex Collar Screw M6 X 45Hex Collar Screw M6 X 45
-
5205063044 Socket Head Screw M6 X 30Socket Head Screw M6 X 30
-
6420641834 Stud M10 X 29Stud M10 X 29
-
7420840401 Socket Head Screw M6 X 22Socket Head Screw M6 X 22
-
8420632010 Dowel PinDowel Pin
-
9420860965 Cable GrommetCable Grommet
-
10420960770 CapCap
-
11420232100 Ball BearingBall Bearing
-
12420956510 Check ValveCheck Valve
-
13420837421 Water Pump/Oil Pump Ass'Y. Includes items 13 to 19Water Pump/Oil Pump Ass'Y. Includes items 13 to 19
-
15420230195 Oil SealOil Seal
-
16420232100 Ball BearingBall Bearing
-
17420650370 Rotary SealRotary Seal
-
18420950890 O-RingO-Ring
-
20420840511 Socket Head Screw M5 X 16Socket Head Screw M5 X 16
-
21420227945 WasherWasher
-
22420222505 Water ImpellerWater Impeller
-
23420931810 GasketGasket
-
24420922630 Water Pump HousingWater Pump Housing
-
25420240031 Hex Screw M6 X 25Hex Screw M6 X 25
-
26420230400 O-RingO-Ring
-
27420888780 Oil Pump Ass'YOil Pump Ass'Y
-
28420941925 Tapping Screw M5 X 16Tapping Screw M5 X 16
-
29414413800 Oil LineOil Line
-
30414413800 Oil LineOil Line
-
31420812420 CoverCover
-
32420941430 Socket Head Screw M6 X 20Socket Head Screw M6 X 20
-
33420059370 Short Block «593 Sdi»Short Block «593 Sdi»
-
34293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
35413711400 Loctite 648, 10 mlLoctite 648, 10 ml
-
36413707000 Molykote 111Molykote 111
-
37420899271 Petamo Grease, Ghy133N, 400 GPetamo Grease, Ghy133N, 400 G
-
38420297906 Sealing Compound, 30 mlSealing Compound, 30 ml
-
39413802900 Injection Oil (12 X 1 Liter)Injection Oil (12 X 1 Liter)
