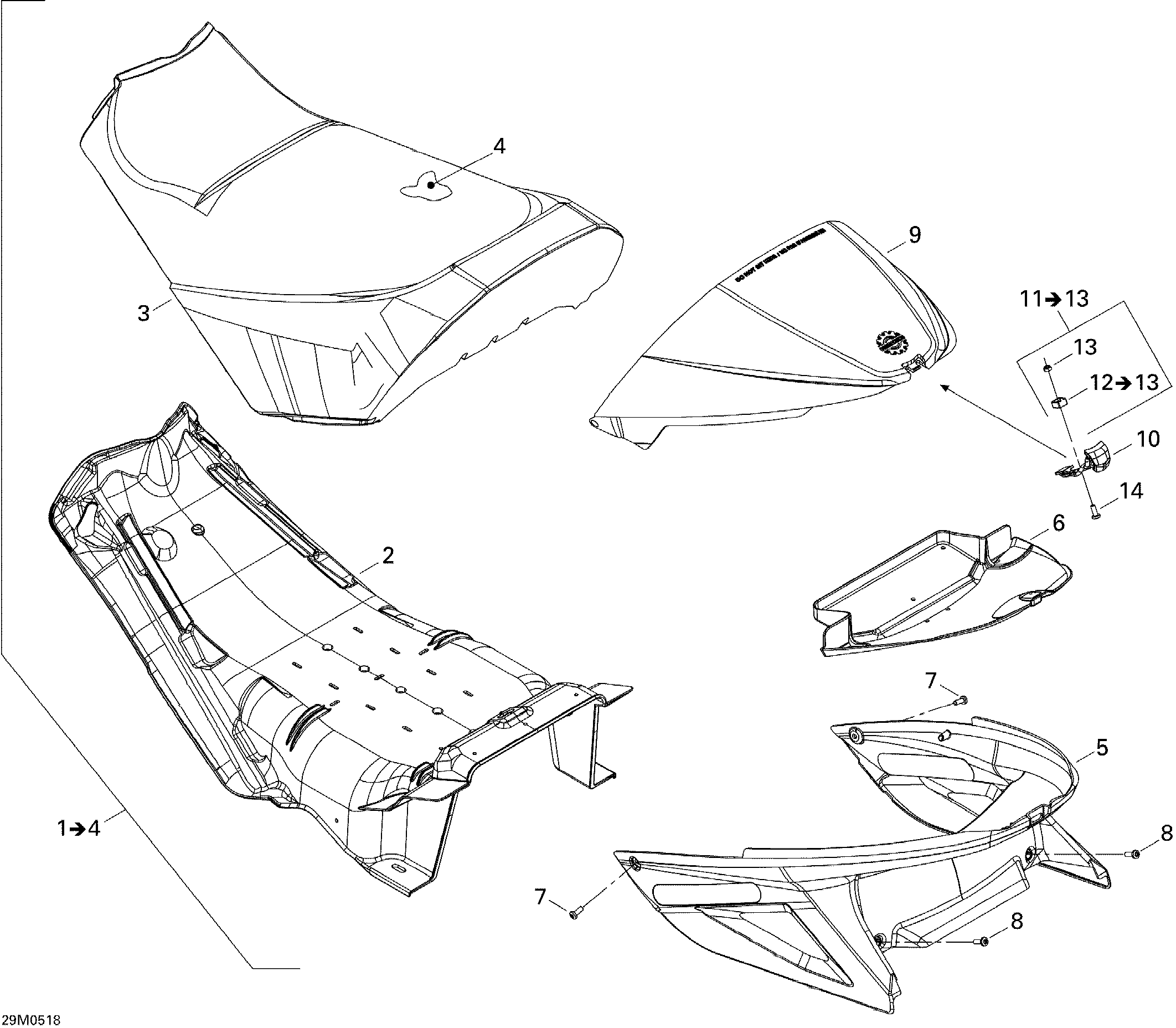

09- Seat для BRP Ski-Doo Mach Z 1000 SDI - 2005
-
№АртикулНазвание
-
2510004575 Seat BaseSeat Base
-
3510004475 Seat CoverSeat Cover
-
4510004275 Seat FoamSeat Foam
-
5510004511 TrunkTrunk
-
6510004600 Box LinerBox Liner
-
7250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
8250000128 Torx Screw M6 X 20Torx Screw M6 X 20
-
9510004311 Cover, Noir, B-160Cover, Noir, B-160
-
10510003917 BracketBracket
-
11708000046 Nut Housing Ass'y, M6. Includes 11 to 13Nut Housing Ass'y, M6. Includes 11 to 13
-
12269500252 Nut Housing Ass'Y. Includes 12 to 13Nut Housing Ass'Y. Includes 12 to 13
-
13232061600 Elastic Stop Nut M6Elastic Stop Nut M6
-
14250000129 Torx Screw M6 X 16Torx Screw M6 X 16
