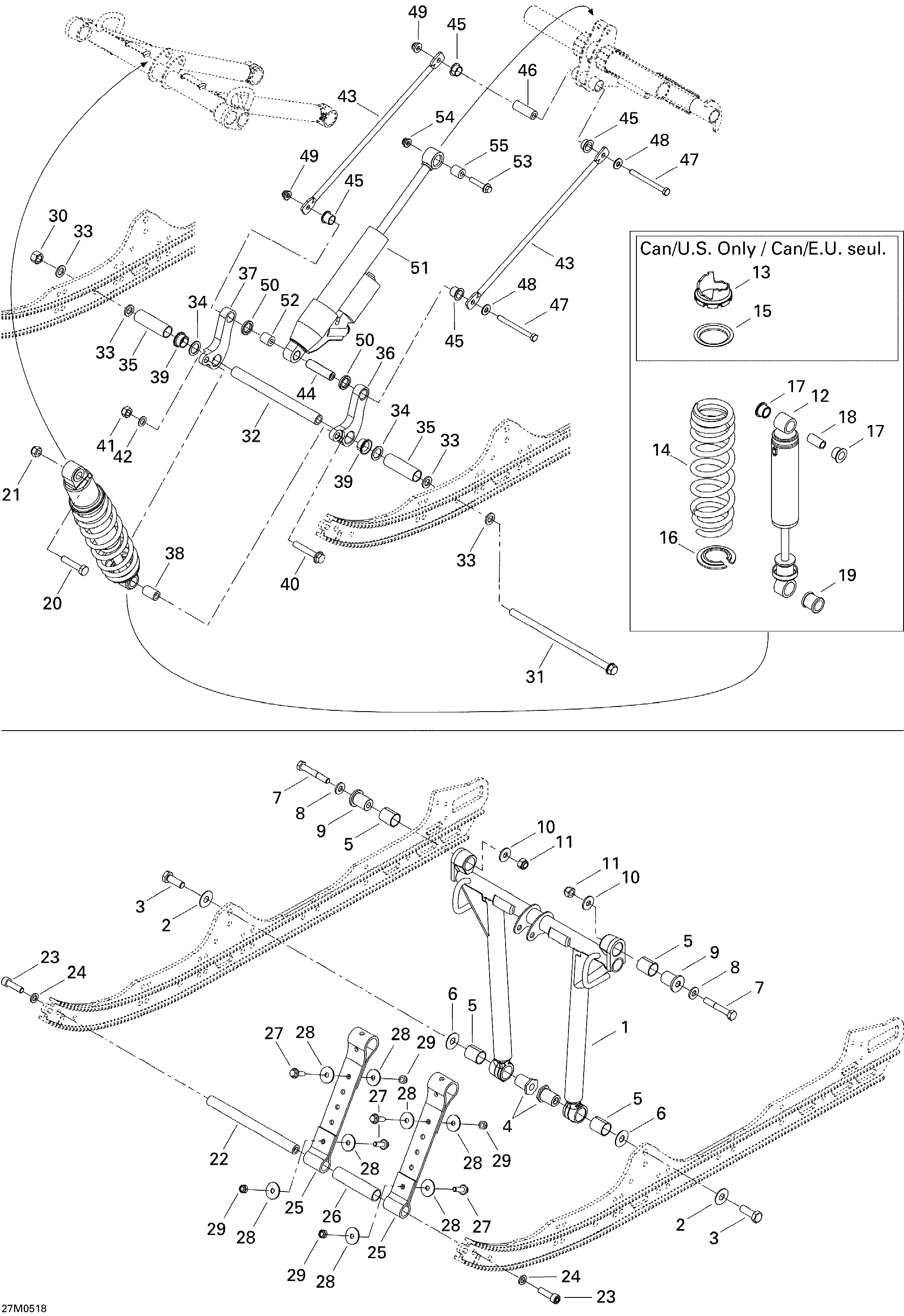

08- Front Arm для BRP Ski-Doo Mach Z 1000 SDI - 2005
-
№АртикулНазвание
-
1503190566 Front ArmFront Arm
-
2503189148 WasherWasher
-
3250000225 Hex. Screw (scotch Grip) M12 X 35Hex. Screw (scotch Grip) M12 X 35
-
4503190727 Inferior AxleInferior Axle
-
5503190974 BushingBushing
-
6503190656 WasherWasher
-
7207006044 Hex Screw M10 X 60Hex Screw M10 X 60
-
8732900049 WasherWasher
-
9503190698 AxleAxle
-
10506151251 WasherWasher
-
11233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
12503190599 Center Shock. Mach Z Canada/U.S.Center Shock. Mach Z Canada/U.S.
-
12503190655 Center Shock. Mach Z EuropeCenter Shock. Mach Z Europe
-
13505070150 Cam 45°. Mach Z Canada/U.S.Cam 45°. Mach Z Canada/U.S.
-
14503189659 SpringSpring
-
15517184300 Spring Guide. Mach Z Canada/U.S.Spring Guide. Mach Z Canada/U.S.
-
16503189912 Spring StopperSpring Stopper
-
17503189117 CushionCushion
-
18503189282 BushingBushing
-
19503189271 CushionCushion
-
20207005044 Hex Screw M10 X 50Hex Screw M10 X 50
-
21232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
22503189562 AxleAxle
-
23205503544 Socket Head Screw M10 X 35, Scotch GripSocket Head Screw M10 X 35, Scotch Grip
-
24503189564 WasherWasher
-
25503190782 Stopper StrapStopper Strap
-
26503189265 SpacerSpacer
-
27207682544 Hex Flanged Screw M8 X 25Hex Flanged Screw M8 X 25
-
28224081301 Flat WasherFlat Washer
-
29233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
30232021416 Hex. Nut M12Hex. Nut M12
-
31250000229 Hexagonal Screw M12 X 252Hexagonal Screw M12 X 252
-
32503191044 Center ShaftCenter Shaft
-
33503189148 WasherWasher
-
34503190697 WasherWasher
-
35503190600 SpacerSpacer
-
36503190965 LH Rocker ArmLH Rocker Arm
-
37503190966 RH Rocker ArmRH Rocker Arm
-
38503190604 Central Shock AxleCentral Shock Axle
-
39503190605 Central Rocker Axle CushionCentral Rocker Axle Cushion
-
40207606044 Hex. Flanged Screw M10 X 60Hex. Flanged Screw M10 X 60
-
41232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
42503175800 WasherWasher
-
43503190606 Throttle RodThrottle Rod
-
44503190643 Bar AxleBar Axle
-
45506150200 Bushing SwivelBushing Swivel
-
46503189815 Axle RodAxle Rod
-
47207088544 Hex Screw M8 X 85Hex Screw M8 X 85
-
48224081201 Flat WasherFlat Washer
-
49233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
50503190694 Plastic SpacerPlastic Spacer
-
51503190994 Rear Shock. Mach Z EuropeRear Shock. Mach Z Europe
-
51503190608 Rear Shock. Mach Z Canada/U.S.Rear Shock. Mach Z Canada/U.S.
-
52503190706 BushingBushing
-
53207684044 Hex Flanged Screw M8 X 40Hex Flanged Screw M8 X 40
-
54233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
55414936000 CushionCushion
