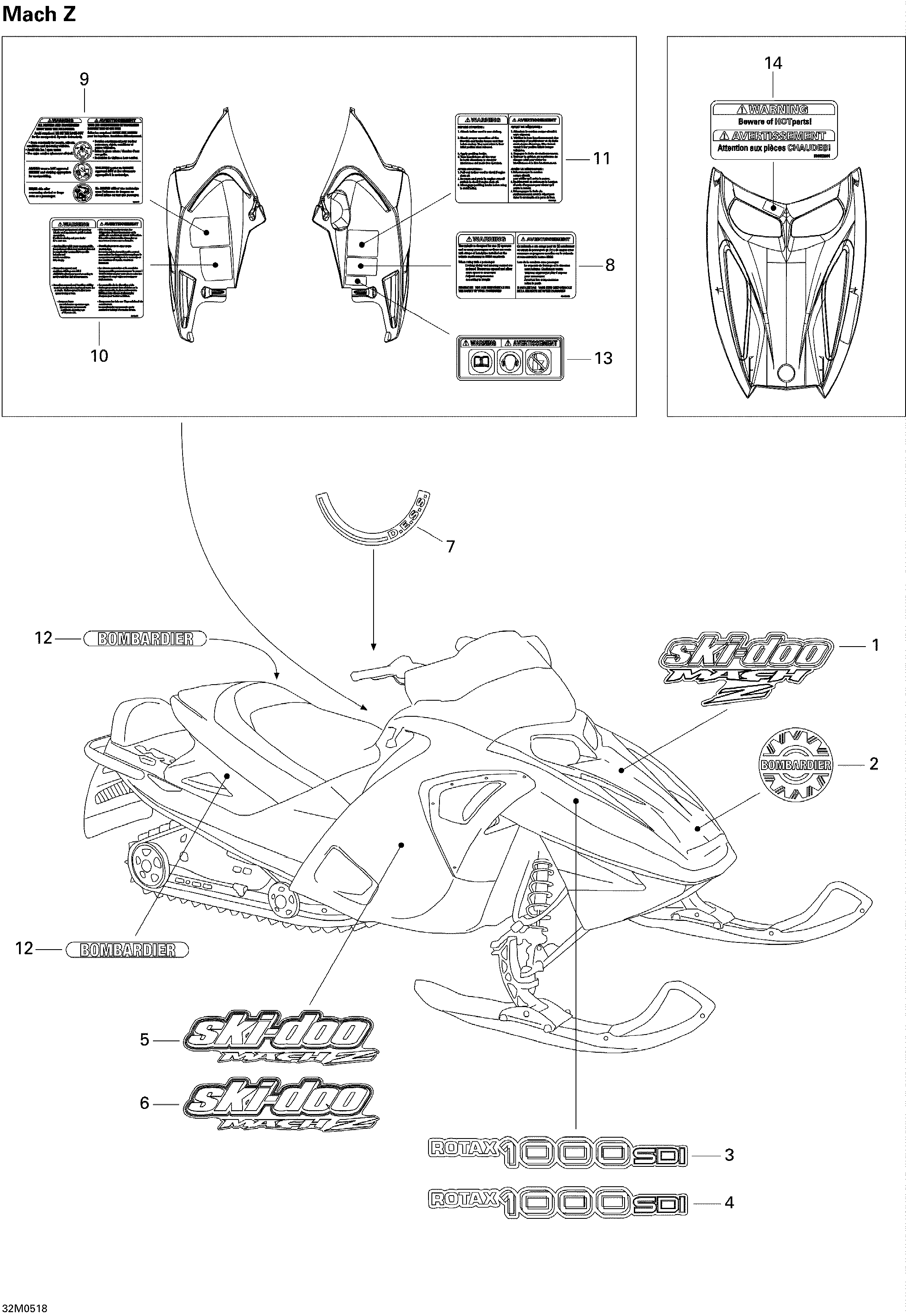

09- Decals для BRP Ski-Doo Mach Z 1000 SDI - 2005

-
№АртикулНазвание
-
1516002644 Hood DecalHood Decal
-
2516000983 Logo «bombardier»Logo «bombardier»
-
3516002645 RH Hood DecalRH Hood Decal
-
4516002646 LH Hood DecalLH Hood Decal
-
5516002647 RH Side DecalRH Side Decal
-
6516002648 LH Side DecalLH Side Decal
-
7516001335 Dess DecalDess Decal
-
8516002672 Label Security, Passenger NumberLabel Security, Passenger Number
-
9516002641 Label Security, GeneralLabel Security, General
-
10516002671 Label Security, FamiliarizationLabel Security, Familiarization
-
11516002642 Label Security, StartingLabel Security, Starting
-
12516002235 Decal BombardierDecal Bombardier
-
13516002703 Decal, Europe. EuropeDecal, Europe. Europe
-
14516002664 Security LabelSecurity Label
