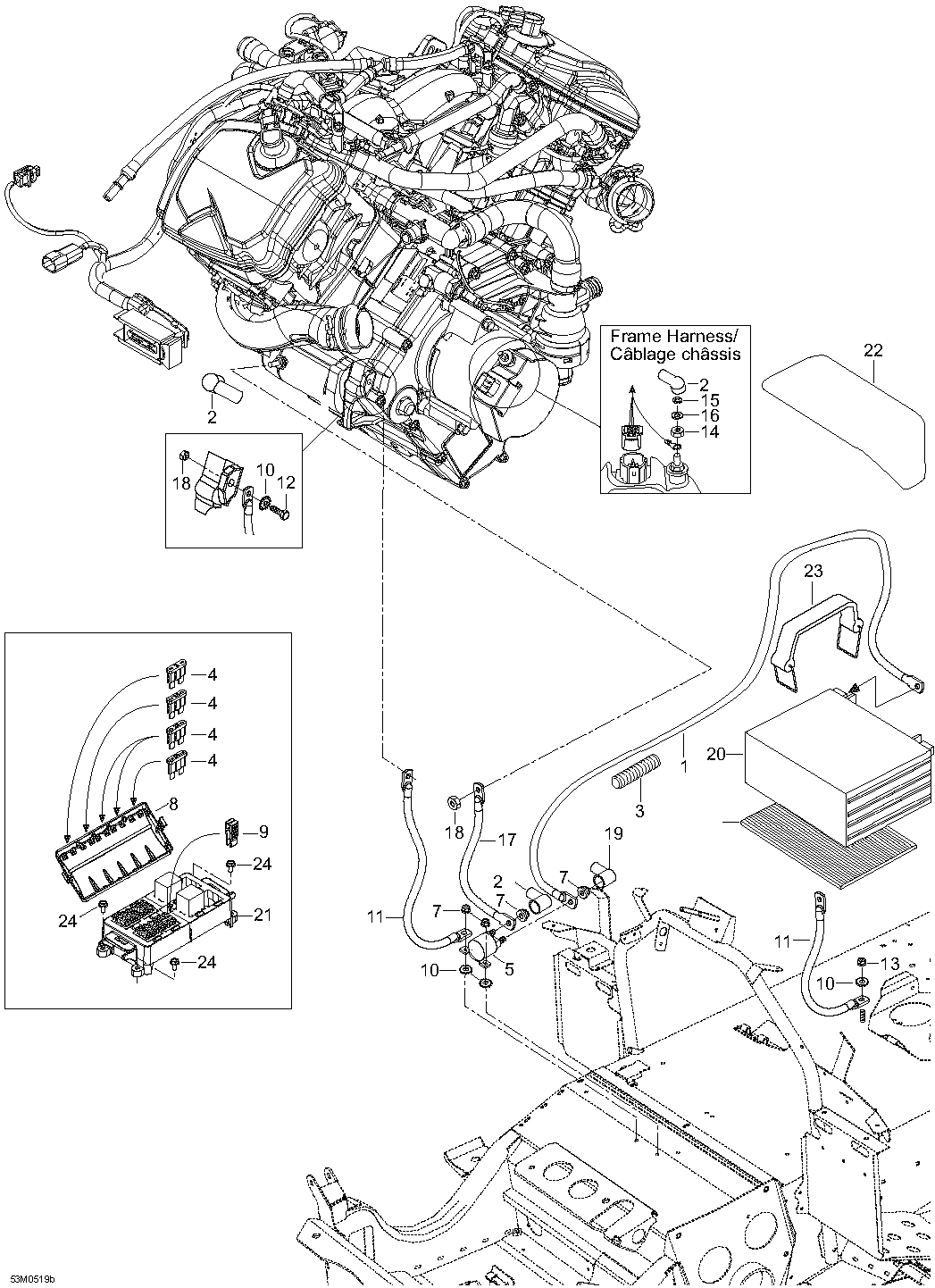

10- Electrical Accessories 2 для BRP Ski-Doo Expedition V-1000 - 2005
-
№АртикулНазвание
-
1605151524 Battery WireBattery Wire
-
2570151000 Protection CapProtection Cap
-
3M28012 HousingHousing
-
4278000344 Fuse, 5 AmperesFuse, 5 Amperes
-
4278000704 Fuse (7.5 Amperes)Fuse (7.5 Amperes)
-
4409003900 Fuse, 20 AmperesFuse, 20 Amperes
-
4410917200 Fuse, 30 AmperesFuse, 30 Amperes
-
4M42044 Fuse 1 AFuse 1 A
-
4710000745 Little Fuse, 15 AmperesLittle Fuse, 15 Amperes
-
5515176011 Starter RelayStarter Relay
-
6410113604 RelayRelay
-
7M33200 Nut M6Nut M6
-
8515176066 CoverCover
-
9515175811 Fuse ToolFuse Tool
-
10M20017 Serrated Lock WasherSerrated Lock Washer
-
12207162044 Hex Screw M6 X 20Hex Screw M6 X 20
-
13232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
14232061414 Hex Nut M6Hex Nut M6
-
15234161471 Lock Washer 6 mmLock Washer 6 mm
-
16234061410 Flat Washer 6 mmFlat Washer 6 mm
-
18232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
19278000020 Protection CapProtection Cap
-
20410922962 Battery (21 Amperes)Battery (21 Amperes)
-
21515176065 Fuse Box BaseFuse Box Base
-
22605352572 CoverCover
-
23605352573 Steel StripSteel Strip
-
24210251680 Hex Forming Screw M5 X 16Hex Forming Screw M5 X 16
