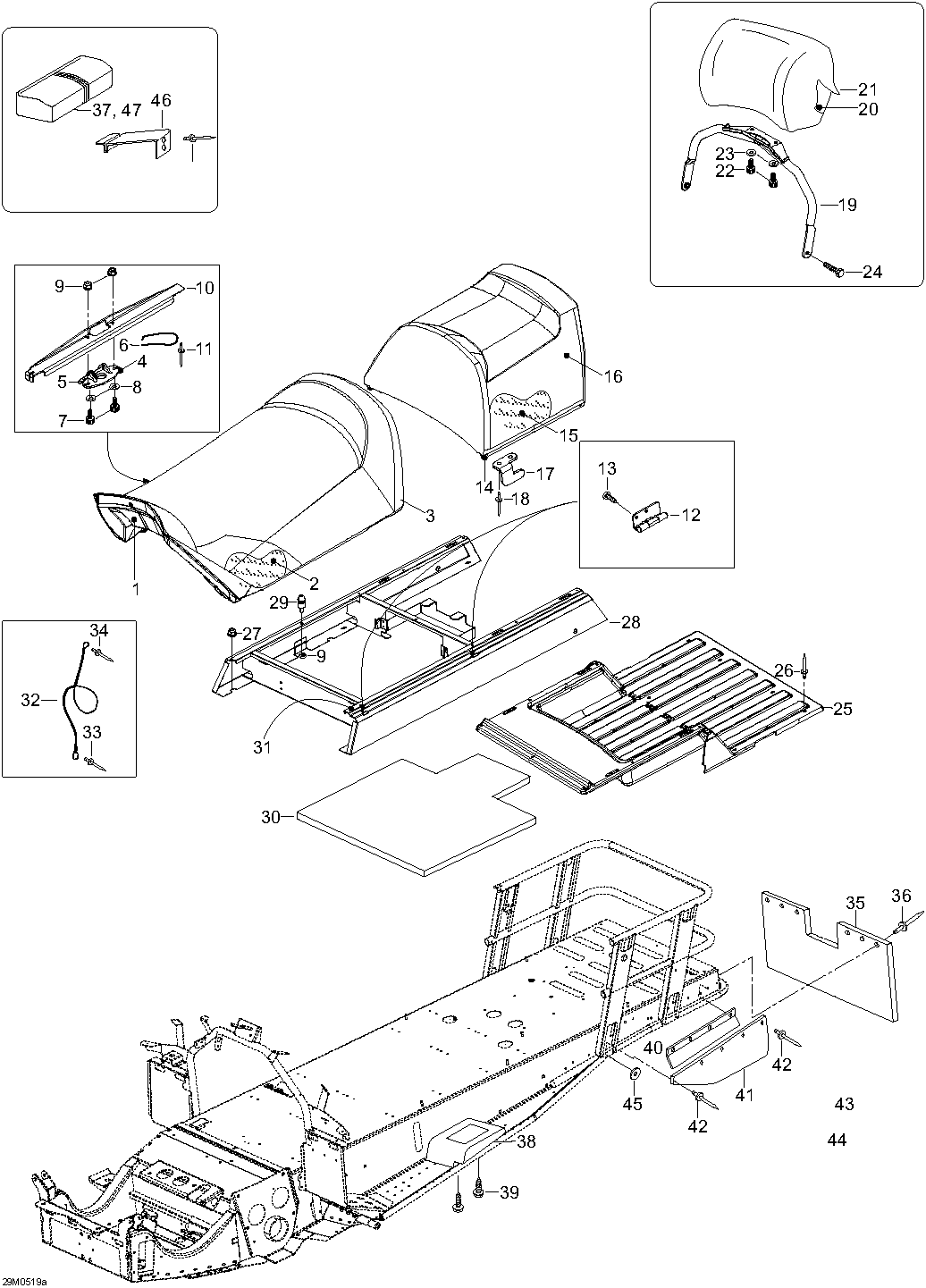

09- Seat 1 для BRP Ski-Doo Expedition V-1000 - 2005
-
№АртикулНазвание
-
1605251388 Seat Base, FrontSeat Base, Front
-
2605251389 Foam. FrontFoam. Front
-
3605251422 Cover, FrontCover, Front
-
4269700076 CapCap
-
5269700077 HandleHandle
-
6269700017 SpringSpring
-
7M40276 Socket Head Screw M6 X 25Socket Head Screw M6 X 25
-
8234061410 Flat Washer 6 mmFlat Washer 6 mm
-
9232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
10605352483 Support PlateSupport Plate
-
11M36083 RivetRivet
-
12605351798 HingeHinge
-
13M40890 Screw 4,2 X 16Screw 4,2 X 16
-
14605251390 Seat Base, RearSeat Base, Rear
-
15605251391 Foam, RearFoam, Rear
-
16605251425 CoverCover
-
17605351808 L.h. HookL.h. Hook
-
17605352007 R.h. HookR.h. Hook
-
18M36087 RivetRivet
-
19605251730 BackrestBackrest
-
20605252104 FoamFoam
-
21605251431 CoverCover
-
22M40066 Hex Screw M8 X 16Hex Screw M8 X 16
-
23234181401 Lock Washer M8Lock Washer M8
-
24M40337 Hex ScrewHex Screw
-
25605151397 CoverCover
-
26M36036 Rivet-BlackRivet-Black
-
27M33200 Nut M6Nut M6
-
28605251807 Seat BoxSeat Box
-
29605452035 Lock PinLock Pin
-
30605352460 FoamFoam
-
31M28413 Sealing StripSealing Strip
-
32M546777 Retainer CableRetainer Cable
-
33M36037 RivetRivet
-
34M36489 RivetRivet
-
35M538629 Snow GuardSnow Guard
-
36M36036 Rivet-BlackRivet-Black
-
37605352219 Tool SetTool Set
-
38414975300 RH Rear FootrestRH Rear Footrest
-
38414975400 LH Rear FootrestLH Rear Footrest
-
39M40870 Hex Tapping ScrewHex Tapping Screw
-
40605251249 RH Side Snow GuardRH Side Snow Guard
-
40605251248 LH Side Snow GuardLH Side Snow Guard
-
41M5142828 Lateral Snow GuardLateral Snow Guard
-
42M36097 RivetRivet
-
43M36891 RivetRivet
-
44M36005 RivetRivet
-
45M20008 Washer 5 mmWasher 5 mm
-
46M5346728 Spring PlateSpring Plate
-
47708200041 Tool BoxTool Box
