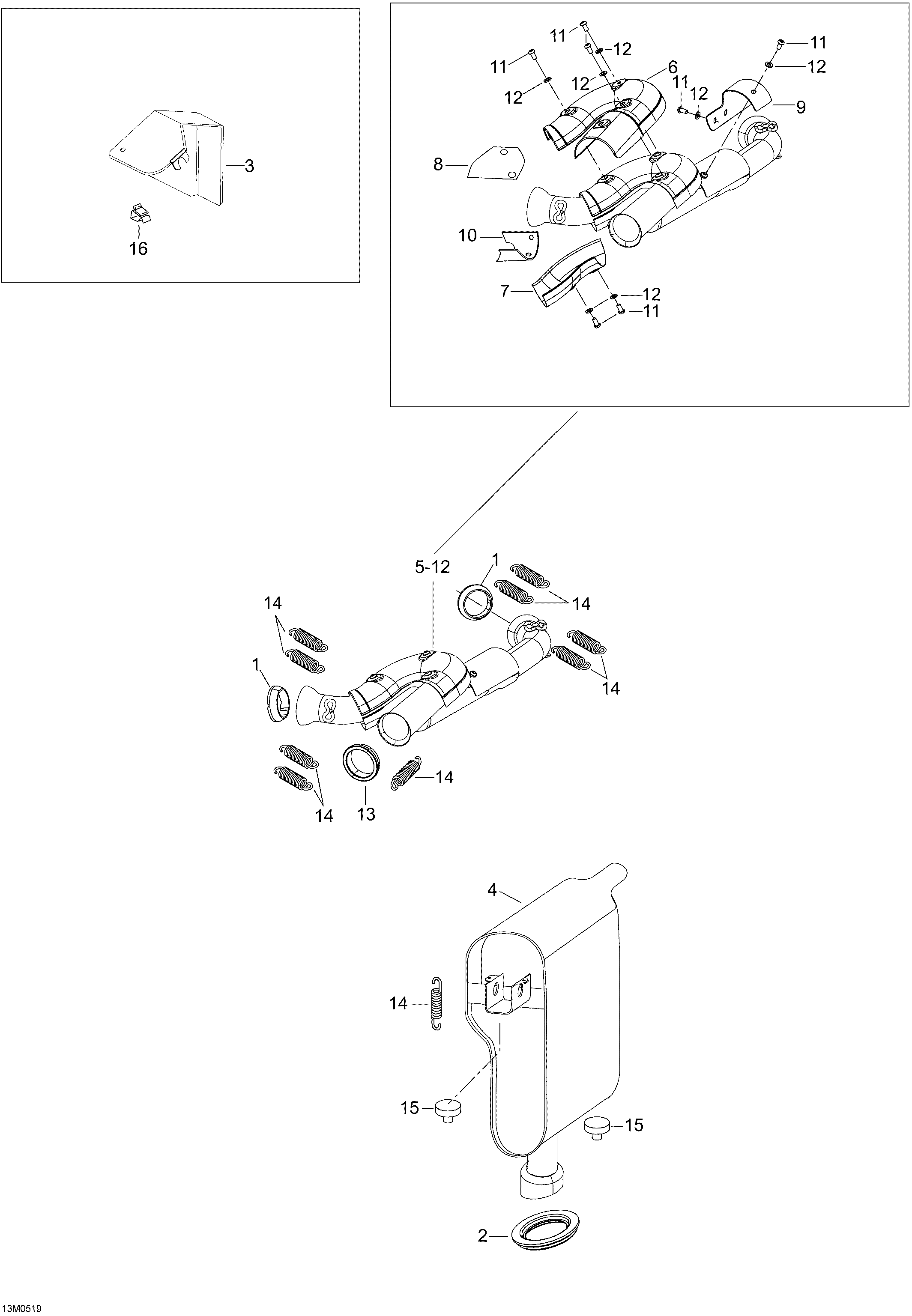

01- Exhaust System для BRP Ski-Doo Expedition V-1000 - 2005
-
№АртикулНазвание
-
1514053532 Exhaust GasketExhaust Gasket
-
2570039000 Exhaust GrommetExhaust Grommet
-
3605352345 Heat ProtectorHeat Protector
-
4605150881 Muffler AssyMuffler Assy
-
5605150882 Tune Pipe. Includes 5 to 12Tune Pipe. Includes 5 to 12
-
13514053582 Exhaust GasketExhaust Gasket
-
14415107100 SpringSpring
-
15570048700 Rubber BumperRubber Bumper
-
16M27017 Gear ClampGear Clamp
Все узлы модели:
- 01- Cooling System
- 01- Crankcase And Starter
- 01- Crankshaft And Pistons
- 01- Cylinder and Cylinder Head, Front Side
- 01- Cylinder and Cylinder Head, Rear Side
- 01- Engine And Engine Support
- • 01- Exhaust System
- 01- Throttle Handle And Housing
- 01- Waterpump, Alternator and Ignition Cover
- 02- Air Intake System
- 02- Fuel System
- 02- Oil Pump
- 02- Oil System
- 02- Throttle Body
- 05- Drive System
- 05- Pulley System 1
- 05- Pulley System 2
- 05- Pulley System 3
- 05- Transmission
- 06- Hydraulic Brake
- 07- Front Suspension And Ski
- 07- Steering System
- 08- Rear Suspension
- 09- Bottom Pan
- 09- Decals
- 09- Frame
- 09- Hood
- 09- Seat 1
- 09- Seat 2
- 10- Electrical Accessories 1
- 10- Electrical Accessories 2
- 10- Engine Harness And Electronic Module
- 10- Steering Wiring Harness
