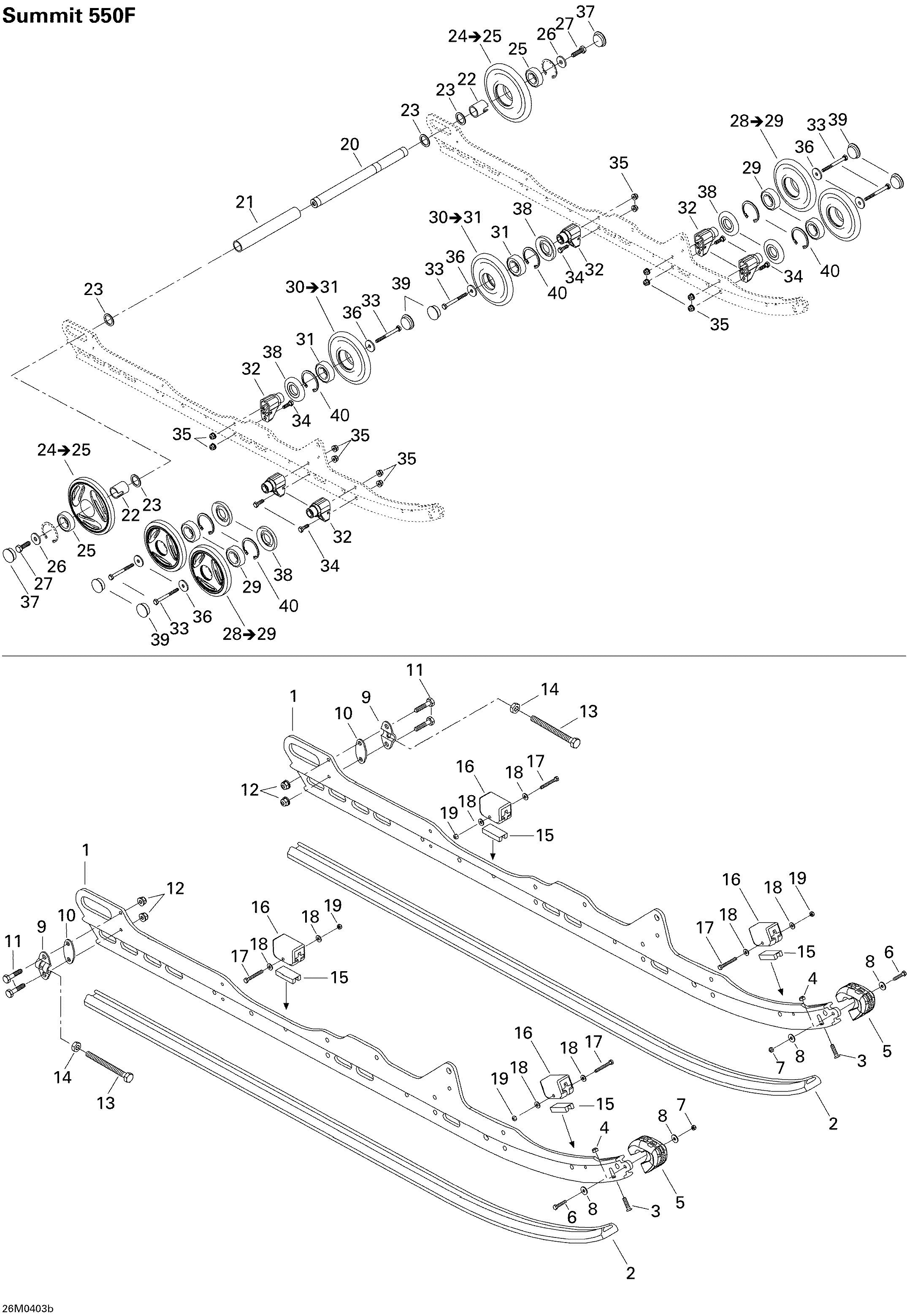

08- Rear Suspension SUMMIT 550F для BRP Ski-Doo Summit 550F - 2004
-
№АртикулНазвание
-
1503189582 Runner (136'')Runner (136'')
-
2503189639 ShoeShoe
-
3208562560 Phillips Screw M6 X 25Phillips Screw M6 X 25
-
4232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
5572075400 Runner ProtectorRunner Protector
-
6207152544 Hex Screw M5 X 25Hex Screw M5 X 25
-
7232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
8391301600 WasherWasher
-
9503155300 TensionerTensioner
-
10503189160 Tensioner SpacerTensioner Spacer
-
11207063044 Hex Screw M6 X 30Hex Screw M6 X 30
-
12233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
13230100044 Hex Screw M10 X 100Hex Screw M10 X 100
-
14233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
15572084800 Stopper ReinforcementStopper Reinforcement
-
16570063000 Rubber StopperRubber Stopper
-
17207054044 Hex Screw M5 X 40Hex Screw M5 X 40
-
18391301700 WasherWasher
-
19232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
20503162400 Rear AxleRear Axle
-
21503188941 Spacer (Long)Spacer (Long)
-
22503189809 Outer SpacerOuter Spacer
-
23503180400 WasherWasher
-
24503189566 Wheel 165 Ass'Y. INCLUDES 24 TO 25Wheel 165 Ass'Y. INCLUDES 24 TO 25
-
25503189567 Ball Bearing 6205Ball Bearing 6205
-
26503183300 WasherWasher
-
27250000019 Hex Screw With NylonHex Screw With Nylon
-
28503190212 Wheel 139 (Yellow). INCLUDES 28 TO 29Wheel 139 (Yellow). INCLUDES 28 TO 29
-
29503189567 Ball Bearing 6205Ball Bearing 6205
-
30503190213 Wheel 139. INCLUDES 30 TO 31Wheel 139. INCLUDES 30 TO 31
-
31503189567 Ball Bearing 6205Ball Bearing 6205
-
32503190389 SupportSupport
-
33207088044 Hex Screw M8 X 80Hex Screw M8 X 80
-
34207182544 Hex Screw M8 X 25Hex Screw M8 X 25
-
35233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
36503183100 WasherWasher
-
37570063600 Wheel CapWheel Cap
-
38572089000 Labyrinth SealLabyrinth Seal
-
39570063600 Wheel CapWheel Cap
-
40371901700 Circlip (Interior)Circlip (Interior)
