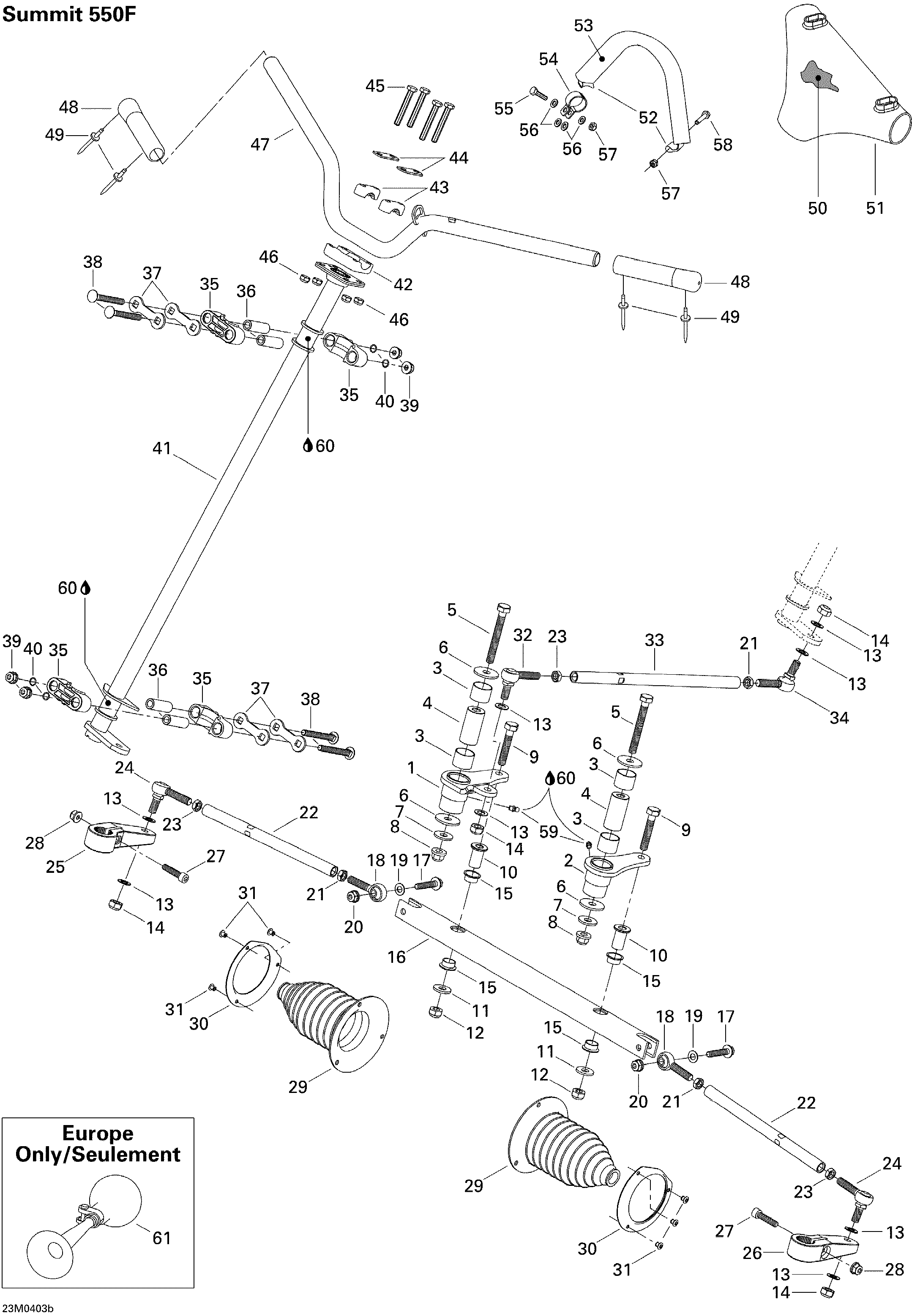

07- Steering System SUMMIT 550F для BRP Ski-Doo Summit 550F - 2004

№

Артикул

Название
1

506151506 RH Swivel Arm

RH Swivel Arm
2

506151623 LH Swivel Arm

LH Swivel Arm
3

506149900 Swivel-Bushing

Swivel-Bushing
4

506150100 Swivel-Pivot

Swivel-Pivot
5

207008086 Hex Screw M10 X 80

Hex Screw M10 X 80
6

506150000 Washer 10 mm

Washer 10 mm
7

506151251 Washer

Washer
8

732610084 Flanged Nut M10

Flanged Nut M10
9

207005544 Hex Screw M10 X 55

Hex Screw M10 X 55
10

506147300 Pivot-Bar

Pivot-Bar
11

224002251 Flat Washer

Flat Washer
12

233601416 Elastic Locking Nut M10

Elastic Locking Nut M10
13

503175800 Washer

Washer
14

232501416 Elastic Stop Nut M10

Elastic Stop Nut M10
15

506150200 Swivel Bushing

Swivel Bushing
16

506147000 Bar-Swivel

Bar-Swivel
17

207684044 Hex Flanged Screw M8 X 40

Hex Flanged Screw M8 X 40
18

506151496 LH Ball Joint

LH Ball Joint
19

506151252 Washer

Washer
20

233281414 Elastic Flanged Nut M8

Elastic Flanged Nut M8
21

250100016 LH Hex Jam Nut M10

LH Hex Jam Nut M10
22

506151376 Tie Rod

Tie Rod
23

732610010 RH Hex Jam Nut M10

RH Hex Jam Nut M10
24

506151491 Ball Joint

Ball Joint
25

506151451 RH Steering Arm

RH Steering Arm
26

506151452 LH Steering Arm

LH Steering Arm
27

205083544 Socket Head Screw M8 X 35

Socket Head Screw M8 X 35
28

233281414 Elastic Flanged Nut M8

Elastic Flanged Nut M8
29

570070500 Tie-Rod Cap

Tie-Rod Cap
30

506151100 Retainer Ring

Retainer Ring
31

390402300 Pop Rivet 3/16''

Pop Rivet 3/16''
32

506151492 RH Ball Joint

RH Ball Joint
33

506151375 Inside Tie-Rod

Inside Tie-Rod
34

506151495 LH Ball Joint

LH Ball Joint
35

506150400 Half Housing

Half Housing
36

506150500 Housing Bushing

Housing Bushing
37

506150600 Stopper Plate

Stopper Plate
38

207787044 Carriage Bolt M8 X 70

Carriage Bolt M8 X 70
39

233281414 Elastic Flanged Nut M8

Elastic Flanged Nut M8
40

506151140 O-Ring

O-Ring
41

506151222 Main Tube

Main Tube
42

277000142 Steering Clamp

Steering Clamp
43

506151622 Steering Support

Steering Support
44

506151196 Reinforcement

Reinforcement
45

207085544 Hex Screw M8 X 55

Hex Screw M8 X 55
46

232581414 Elastic Stop Nut M8

Elastic Stop Nut M8
47

506151391 Handle-Bar (Black)

Handle-Bar (Black)
48

M5340464 Grip Handle

Grip Handle
49

293150102 Pop Rivet 3/16

Pop Rivet 3/16
50

506151264 Foam

Foam
51

506151265 Cover

Cover
52

415095500 Tie-Down

Tie-Down
53

415090200 Grip

Grip
54

506151792 Support Plate (Black)

Support Plate (Black)
55

207162544 Hex Screw M6 X 25

Hex Screw M6 X 25
56

234061410 Flat Washer

Flat Washer
57

232561414 Elastic Stop Nut M6

Elastic Stop Nut M6
58

207063544 Hex. Flanged Screw M6 X 35

Hex. Flanged Screw M6 X 35
59

408200700 Grease Fitting

Grease Fitting
60

219700417 Synthetic Grease, 400g

Synthetic Grease, 400g
61

415040700 Horn (Europe). EUROPE ONLY

Horn (Europe). EUROPE ONLY
